Eltra EL63E1000S8/24L8X3MR Incremental Encoder
신제품
재고 있음1 단위즉시 배송 가능
증분 엔코더 ELTRA EL63E1000S824L8X3MR 광학 증분 엔코더는 1000 ppr 해상도, 단단한 샤프트 설계 및 MIL 7핀 커넥터를 제공합니다. 산업 시스템의 회전 모션 감지를 위해 제작되었으며, IP54 보호 등급과 방사형 출력이 있습니다.
1000ConnectorControlEL63E1000S824L8X3MREltraEncoderIncrementalIndustrialIP54MILMotionOpticalPPRRotarySensorshaftSolid
방대한 재고
글로벌 배송
전문 지원
품질 보장

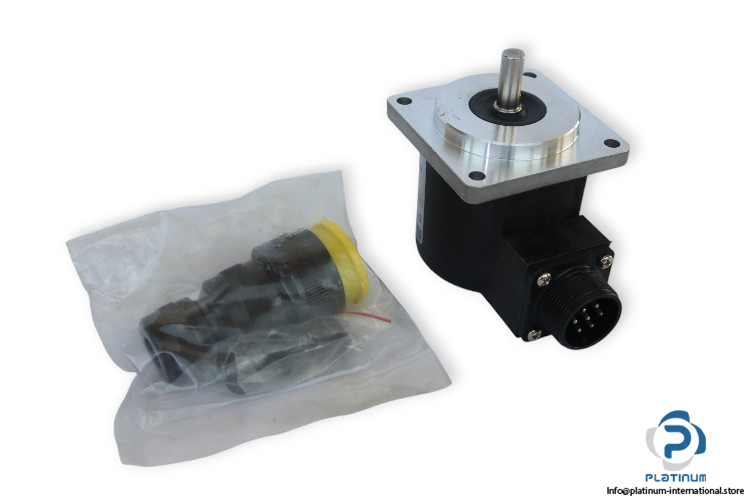

ELTRA EL63E1000S824L8X3MR INCREMENTAL ENCODER
Engineered for precision and durability, the ELTRA EL63E1000S824L8X3MR is a high-resolution incremental encoder, ideal for rotary measurement in industrial automation systems. Featuring a solid shaft and radial output, it ensures accurate feedback in dynamic motion control environments.
Manufacturer: ELTRA
Type: Incremental Encoder

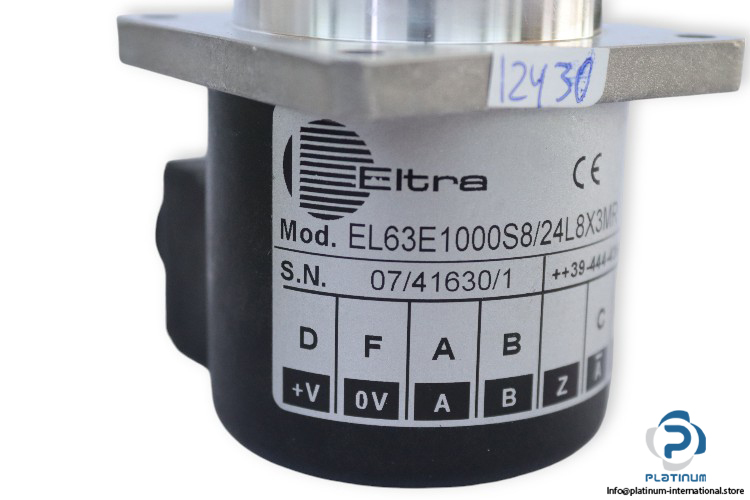

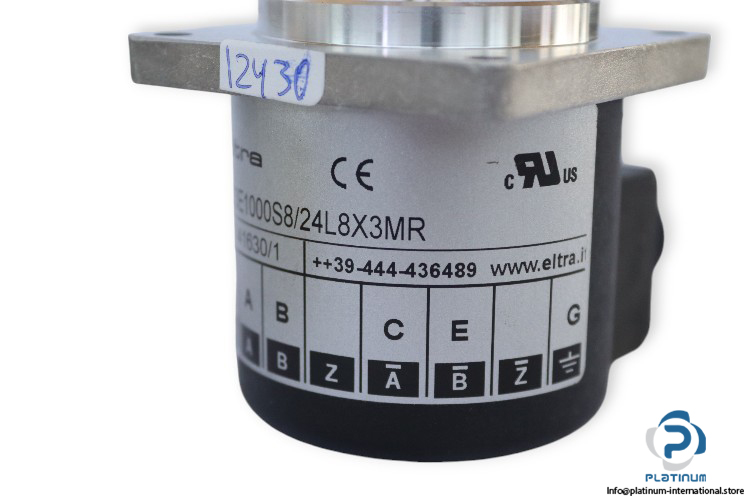

Model: EL63E1000S824L8X3MR
Serial No.: 07/41630/1
| Power Supply | 8 / 24 V DC |
| Principle of Operation | Incremental |
| Shaft Type | Solid Shaft |
| Mounting Type | Centering Square Flange |
| Electronic Interface | Line Driver |
| Resolution | 1000 ppr |
| Shaft Diameter | 8 mm |
| Max Rotation Speed | 3000 rpm |

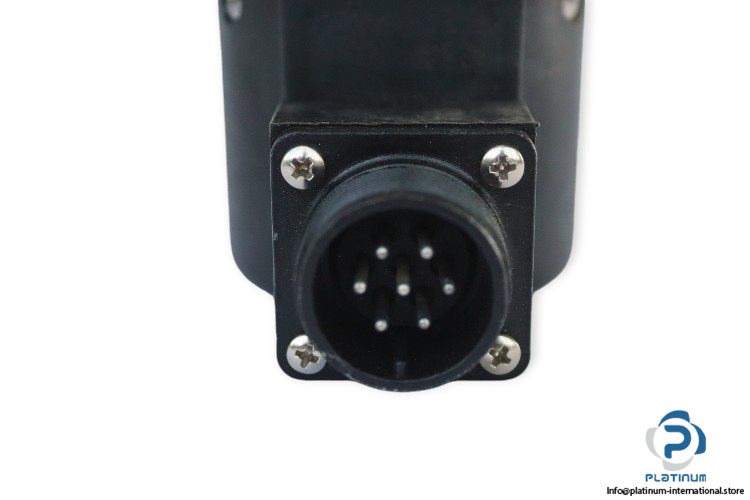

| Output Type | MIL Connector (7 Pins) |
| Protection Degree | IP54 |
| Direction Type | Radial |
| Construction Size (Diameter) | 63 mm |
| Max Output Frequency | 250 kHz |
| Operating Temperature | -10 / +60°C |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
