Eltra EL63E5000S8/24L8X3MR Incremental Encoder
재고 있음1 단위즉시 배송 가능
증분 로터리 엔코더 ELTRA EL63E5000S824L8X3MR 광학 로터리 엔코더로 5000 ppr 해상도, 8mm 단단한 샤프트, MIL 커넥터 출력 기능을 갖추고 있습니다. 고속, 정밀 피드백이 필요한 산업 자동화에 이상적입니다.
5000AutomationDriverEL63E5000S824L8X3MREltraEncoderFeedbackHigh-ResolutionIncrementalIndustrialLineMotionOpticalPPRRotarySensorshaft
방대한 재고
글로벌 배송
전문 지원
품질 보장

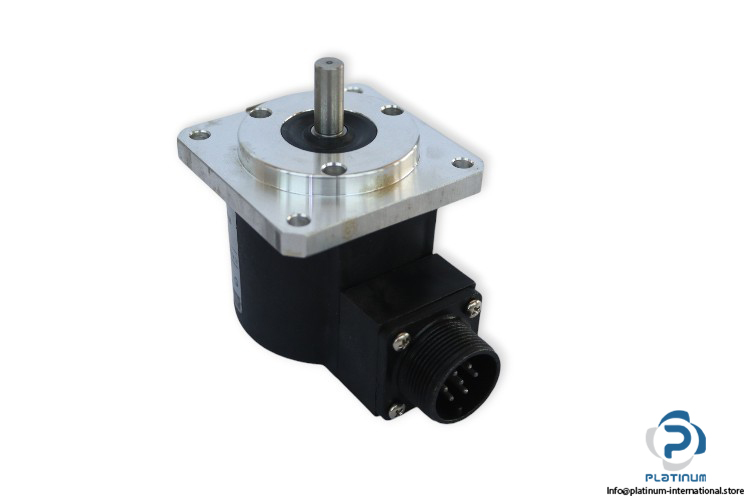

ELTRA EL63E5000S824L8X3MR INCREMENTAL ENCODER
The ELTRA EL63E5000S824L8X3MR is a high-precision incremental encoder engineered for rotary motion applications. Built with robust optical sensing and a solid shaft, it delivers accurate feedback for industrial automation systems and machinery.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL63E5000S824L8X3MR

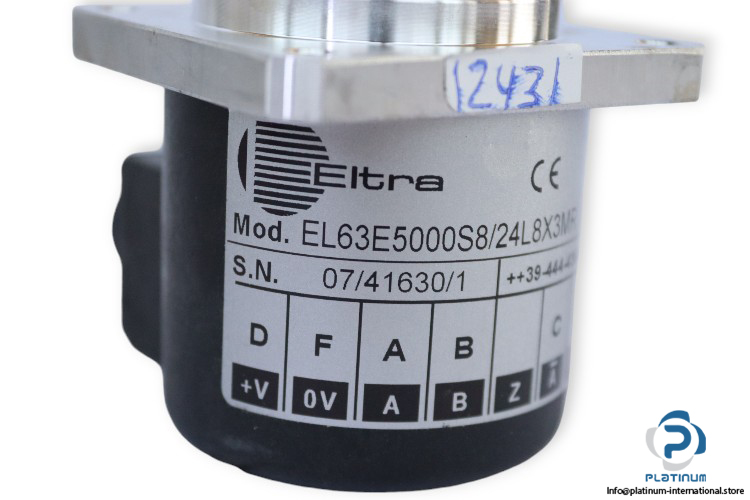

Serial No.: 07/41630/1
| Power Supply | 8 / 24 V DC |
| Principle of Operation | Incremental |
| Shaft Type | Solid Shaft |
| Mounting Type | Centering Square Flange |
| Electronic Interface | Line Driver |
| Resolution | 5000 ppr |
| Shaft Diameter | 8 mm |
| Max Rotation Speed | 3000 rpm |

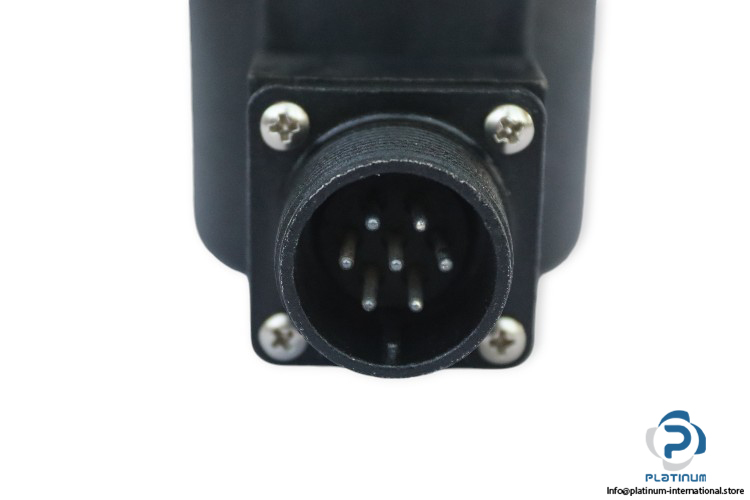

| Output Type | MIL Connector (7 Pins) |
| Protection Degree | IP54 |
| Direction Type | Radial |
| Construction Size (Diameter) | 63 mm |
| Max Output Frequency | 250 kHz |
| Operating Temperature | -10 / +60°C |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
