Motion Control Rotary Encoders

Eltra EL63E800S5/28P8X3PR Incremental Encoder

Name: ELTRA EL63E800S5/28P8X3PR INCREMENTAL ENCODER
SKU: 1044818
Availability: LimitedAvailability

eltra-EL63E800S5_28P8X3PR-incremental-encoder-(new)

eltra-EL63E800S5_28P8X3PR-incremental-encoder-(new)-1

eltra-EL63E800S5_28P8X3PR-incremental-encoder-(new)-2

eltra-EL63E800S5_28P8X3PR-incremental-encoder-(new)-3

eltra-EL63E800S5_28P8X3PR-incremental-encoder-(new)-4

eltra-EL63E800S5_28P8X3PR-incremental-encoder-(new)-5

신제품

재고 있음1 단위즉시 배송 가능

INCREMENTAL ROTARY ENCODER ELTRA EL63E800S5/28P8X3PR는 800 PPR 해상도, IP54 보호 및 방사형 케이블 출력을 제공하는 솔리드 샤프트 광학 엔코더로, 산업 자동화 시스템에서 정밀한 모션 제어를 위해 설계되었습니다.

제조업체

ELTRA

SKU

1044818

카테고리

Rotary Encoders

상태

신제품

800 Cable Control EL63E800S5/28P8X3PR Eltra Encoder High-Speed Incremental Industrial IP54 Motion Optical PPR radial Rotary shaft Solid

방대한 재고

글로벌 배송

전문 지원

품질 보장

ELTRA EL63E800S5/28P8X3PR INCREMENTAL ENCODER

The ELTRA EL63E800S5/28P8X3PR is a high-precision incremental rotary encoder engineered for robust performance in demanding industrial environments. With a resolution of 800 PPR and a solid shaft design, it is ideal for accurate position and speed feedback applications.

Manufacturer: ELTRA

Type: Incremental Encoder

Model: EL63E800S5/28P8X3PR

Serial No.: 06/28275/1

Power Supply	5 / 28 V DC
Principle of Operation	Incremental
Resolution	800 PPR
Shaft Type	Solid Shaft (8 mm diameter)
Mounting Type	Centering Square Flange
Electronic Interface	Push Pull

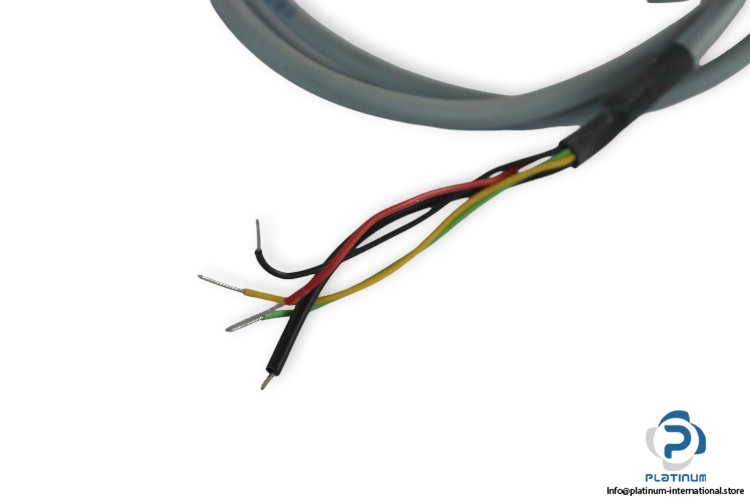

Output Type	Cable (5 wires)
Direction Type	Radial
Construction Size	63 mm diameter
Enclosure Rating	IP54
Max Rotation Speed	3000 rpm
Max Output Frequency	250 kHz
Measurement Type	Rotary
Type of Sensor	Optical
Operating Temperature	-10 / +60°C
