Embraco EMT6152GK Compressor
신제품
재고 있음1 단위즉시 배송 가능
컴프레서 키트 Embraco EMT6152GK 컴프레서, Elco 음영 폴 모터 및 Frigomec 흡입 축적기를 포함하는 완전한 단상 냉동 컴프레서 시스템 "R-404a 기반 냉각 애플리케이션에 적합.
1/4accumulatorcompressorElcoEmbracoEMT6152GKFrigomecHPKitmotorNET2T12PVN001PhasePoleR-404ARefrigerationRV-77X220shadedSingleSuction
방대한 재고
글로벌 배송
전문 지원
품질 보장

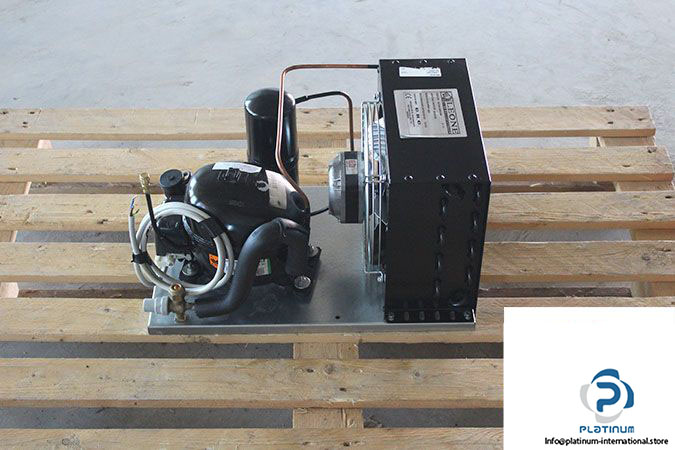

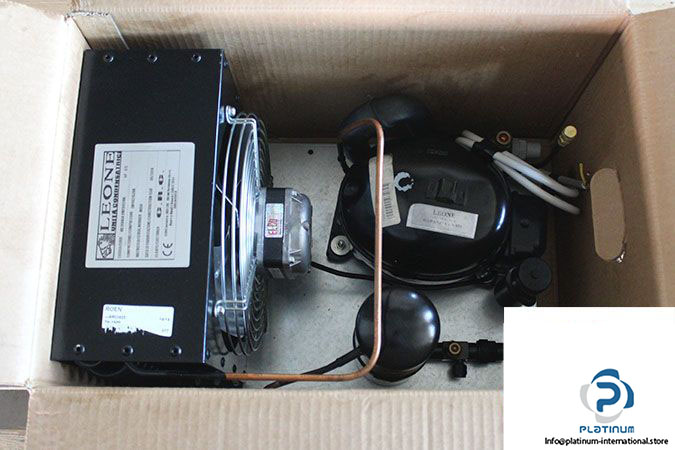

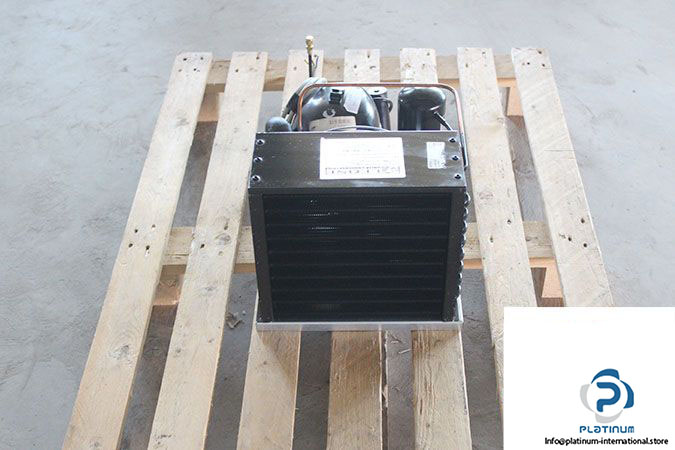

EMBRACO EMT6152GK COMPRESSOR KIT
The Embraco EMT6152GK is a robust refrigeration compressor ideal for medium and low-temperature applications. This model is engineered for high efficiency and is paired with an Elco shaded pole motor and Frigomec suction accumulator to ensure complete system performance and protection.
Manufacturer: Embraco
Type: Compressor

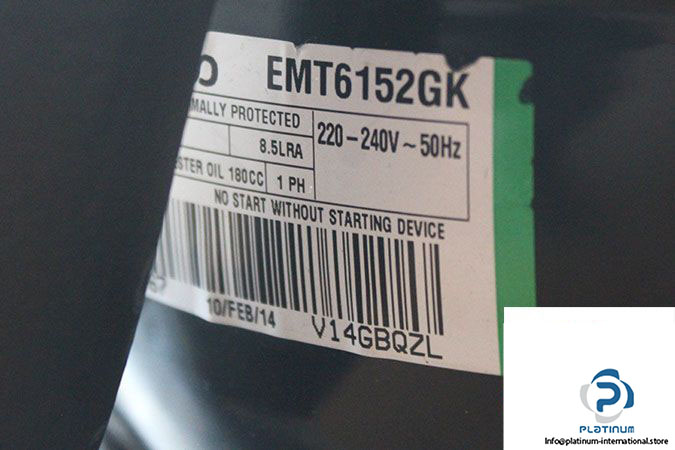

Model: EMT6152GK
Part No.: V14GBQZL

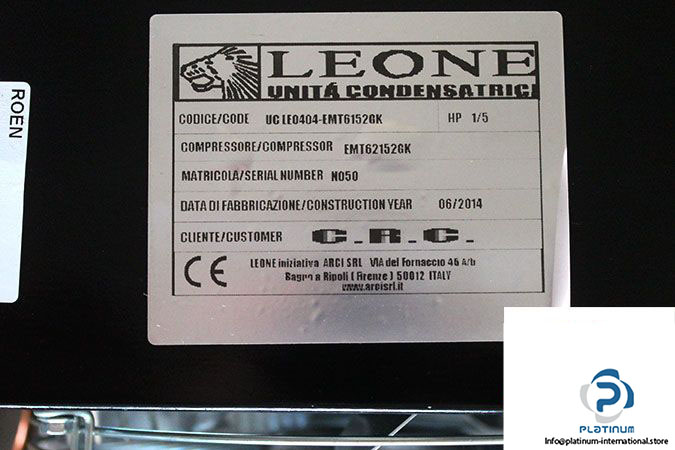

Code: UCLLE0404- EMT6152GK
Engineering Nr.: 912FA67
Phase: 1~ Single Phase
Included Components
| Horsepower [Hp] | 1/4 |
| Rated Voltage [V] | 220 to 240 |
| Displacement [cm³] | 4.5 |
| Bore [mm] | 21.0 |
| Stroke [mm] | 13.0 |
| Range Temperature [°C] | -25 to 10 |
| Locked Rotor Amperage [A] | 8.5 |
| Lubricants Type/Viscosity | ESTER / ISO22 |
| Lubricant Charge [ml] | 180 |
| Frequency [Hz] | 50 |
| Refrigerant | R-404a |

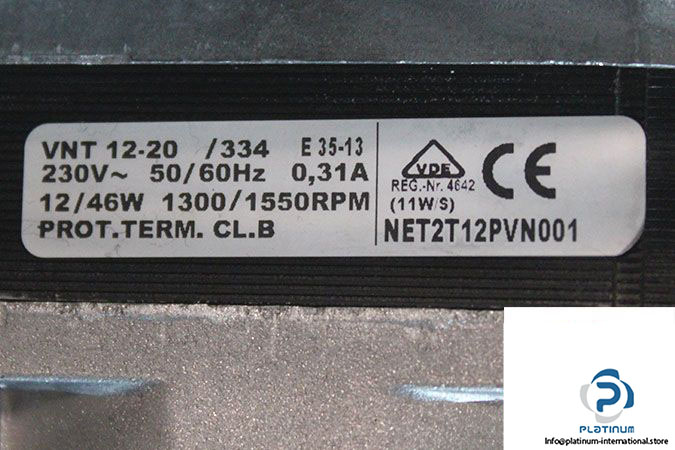

| ELCO NET2T12PVN001 SHADED POLE MOTOR Manufacturer | Elco |
| Motor Type | VNT12-20/334 |
| Nominal Voltage [V] | 230 |
| Rated Current [A] | 0.31 |
| Power Input [W] | 46 |
| Power Output [W] | 12 |
| Frequency [Hz] | 50/60 |
| Speed [rpm] | 1300/1550 |
| Degree of Protection [IP] | 44 |
| Insulation Class | B |

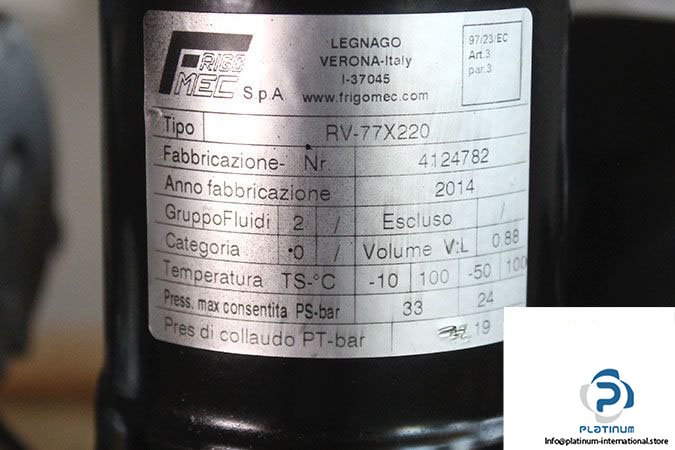

| FRIGOMEC RV-77X220 SUCTION ACCUMULATOR Manufacturer | Frigomec |
| Fluids Group | 2 |
| Volume [L] | 0.88 |
| Temperature [°C] | -10 to 120 / -50 to 100 |
| Max Pressure [bar] | 33 / 24 |
| Test Pressure [bar] | 47.19 |
