Embraco NEK6210GK Compressor
신제품
재고 있음1 단위즉시 배송 가능
999,99$
팬 모터가 장착된 압축기 1/2 Hp 출력과 R-404a 냉매를 사용하는 고효율 단상 압축기이며, 저온 냉각 시스템에서 최적의 냉각을 위한 내구성 있는 축류 팬 모터와 결합되어 있습니다.
1/2AxialcompressorEbmpapstEmbracoFanHPIndustrialM4Q045-CF01-01motorNEK6210GKR-404ARefrigerationSingle-PhaseWith
방대한 재고
글로벌 배송
전문 지원
품질 보장

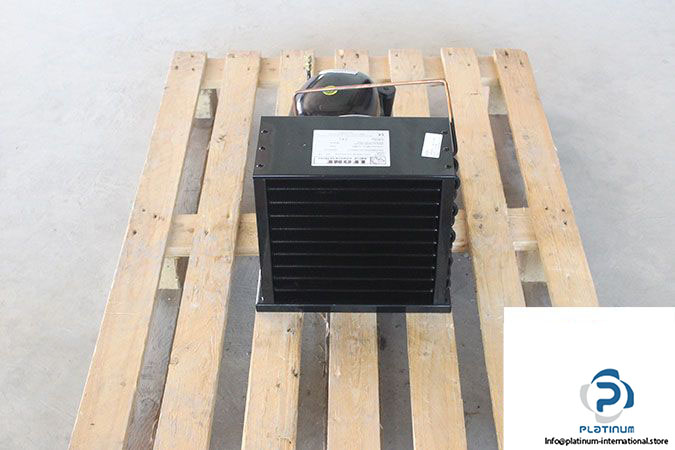

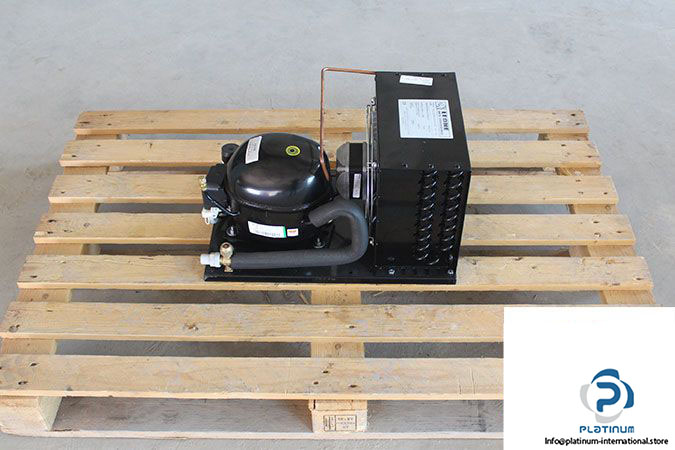

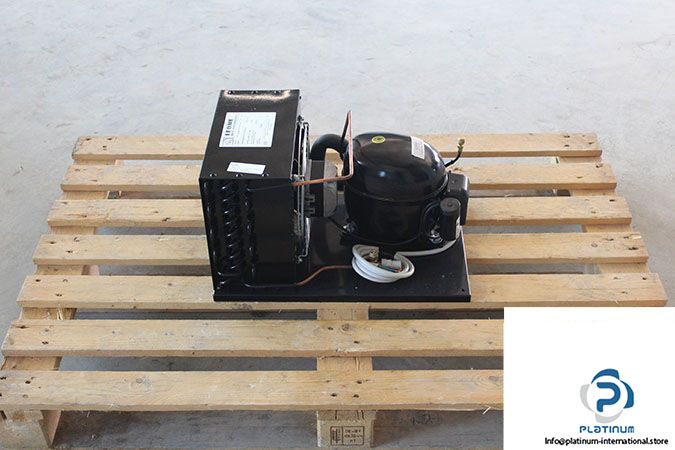

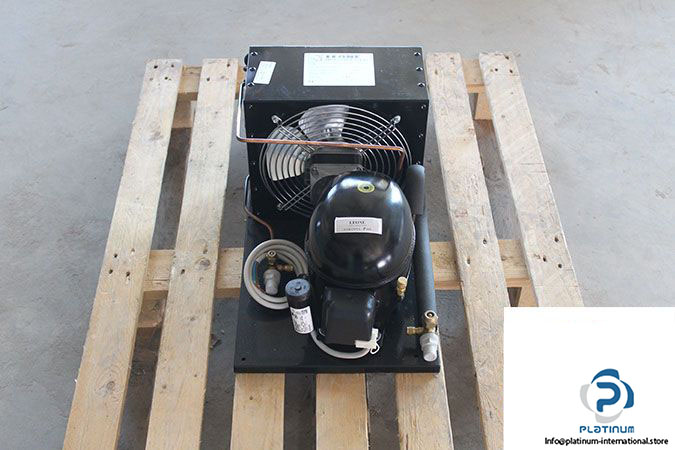

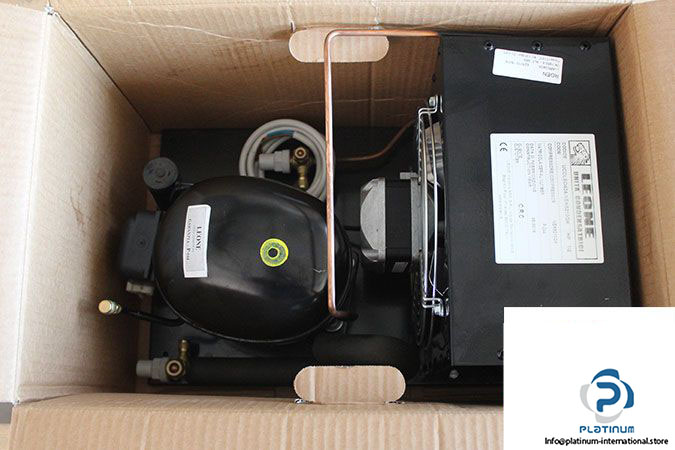

EMBRACO NEK6210GK COMPRESSOR WITH EBMPAPST FAN MOTOR
This Embraco NEK6210GK single-phase compressor is engineered for reliable refrigeration performance in low-temperature environments, featuring R-404a compatibility, compact design, and robust cooling efficiency. It comes equipped with an Ebmpapst M4Q045-CF01-01 axial fan motor to ensure effective ventilation, optimized for energy efficiency and durability under varying ambient conditions.

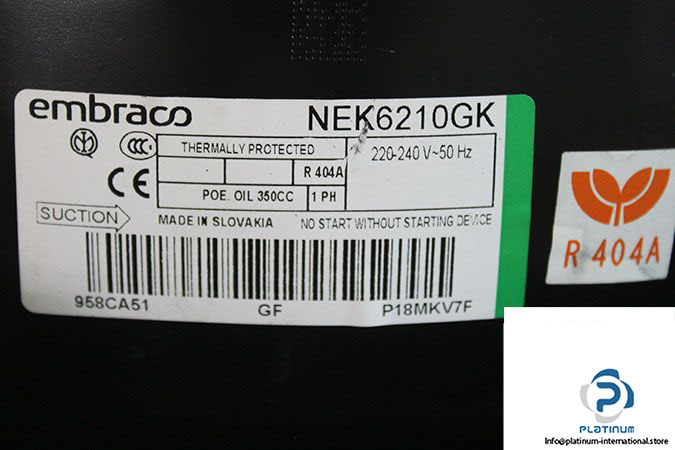

Manufacturer: Embraco
Type: Compressor
Model: NEK6210GK

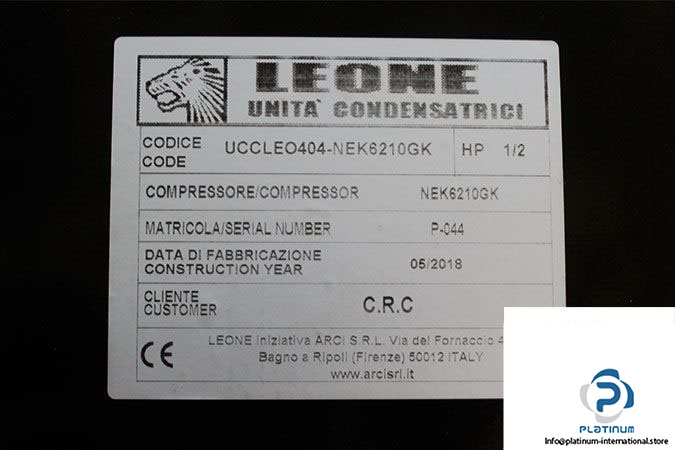

Code: UCCLO404- NEK6210GK
Part No.: P18MKV7F
Engineering Nr.: 958CA51
Phase: 1~ Single Phase
Technical Information “ Compressor
- Horsepower: 1/2 Hp
- Rated Voltage: 220 to 240 V
- Displacement: 8.77 cm³
- Bore: 26.497 mm
- Stroke: 7.96 mm
- Temperature Range: -20°C to 0°C
- Lubricant Type/Viscosity: ESTER / ISO22
- Frequency: 50 Hz
- Refrigerant: R-404a
- Lubricant Charge: 350 ml
Attachment: EBM PAPST M4Q045-CF01-01/A29 MOTOR FAN

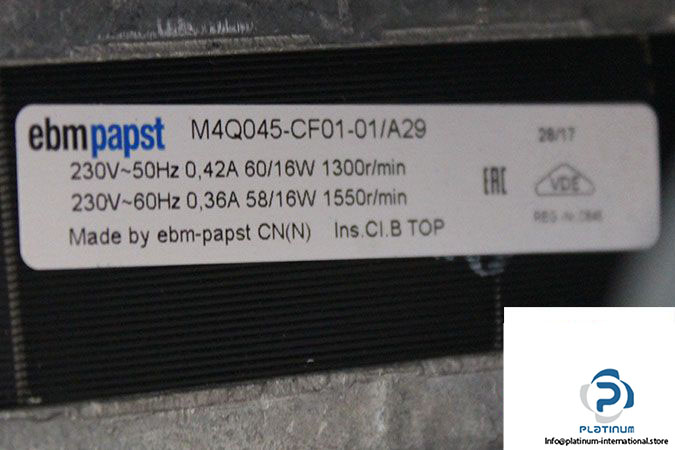

Technical Information “ Fan Motor
- Manufacturer: Ebmpapst
- Type: Motor Fan
- Model: M4Q045-CF01-01
- Nominal Voltage: 230/230 V
- Current Draw: 0.42/0.36 A
- Power Consumption: 60/58 W
- Power Output: 16/16 W
- Frequency: 50/60 Hz
- Speed: 1300/1550 rpm
- Ambient Temperature: -30°C to 40°C
- Protection Class: IP42
- Insulation Class: B
