Embraco NJ9232GK Compressor
신제품
요청 시 제공 가능
컴프레서 세트 Embraco NJ9232GK 단상 유닛, Elco 셰이디드 폴 모터 및 Frigomec 흡입 축적기를 포함한 완전한 냉동 컴프레서 세트로, 저온 시스템에서 R-404a 냉매를 사용하여 정밀 냉각용으로 설계되었습니다.
1.2524vaccumulatorcommercialcompressorCoolingElcoEmbracoFrigomecHPmotorNJ9232GKpartsPhasePoleR-404ARefrigerationSetshadedSingleSuctionSystemUnit
방대한 재고
글로벌 배송
전문 지원
품질 보장

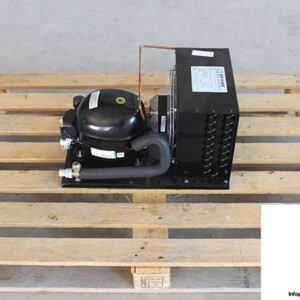

EMBRACO NJ9232GK COMPRESSOR SET
This high-efficiency single-phase compressor set by Embraco is engineered for refrigeration applications demanding precise cooling within the -20°C to 0°C range. It includes a powerful shaded pole motor by Elco and a robust suction accumulator by Frigomec for safe and stable operation in commercial systems.
Manufacturer: Embraco
Type: Compressor
Model: NJ9232GK
Code: UCLE0404- NJ9232GK
Engineering Nr.: 943NA01
Phase: 1~ Single Phase
| Horsepower [Hp] | 1 ¼ |
| Rated Voltage [V] | 200 to 240 |
| Displacement [cm³] | 26.11 |
| Bore [mm] | 41.77 |
| Stroke [mm] | 9.533 |
| Range Temperature [°C] | -20 to 0 |
| Lubricant Type/Viscosity | ESTER / ISO22 |
| Frequency [Hz] | 50 |
| Refrigerant | R-404a |
| Lubricant Charge [ml] | 750 |
| Attachment | ELCO NET2T25PVN001 SHADED POLE MOTOR |
| Motor Type | VNT25-40/138 |
| Nominal Voltage [V] | 230 |
| Rated Current [A] | 0.68 |
| Power In [W] | 95 |
| Power Output [W] | 25 |
| Frequency [Hz] | 50/60 |
| Speed [rpm] | 1300/1550 |
| Degree of Protection [IP] | 44 |
| Insulation Class | B |
| Attachment | FRIGOMEC RV-130X265 SUCTION ACCUMULATOR |
| Part No. | 4212314 |
| Fluids Group | 2 |
| Volume [L] | 2.8 |
| Temperature Range [°C] | -10 to 100 |
| Max Pressure [bar] | 28 |
| Test Pressure [bar] | 40.04 |
