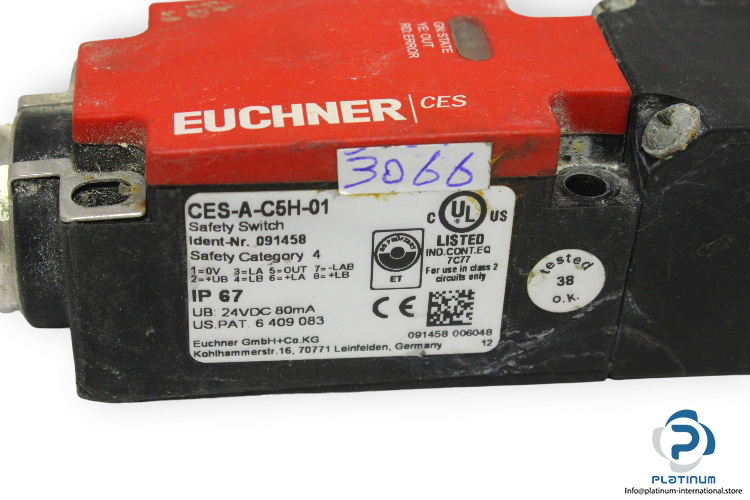

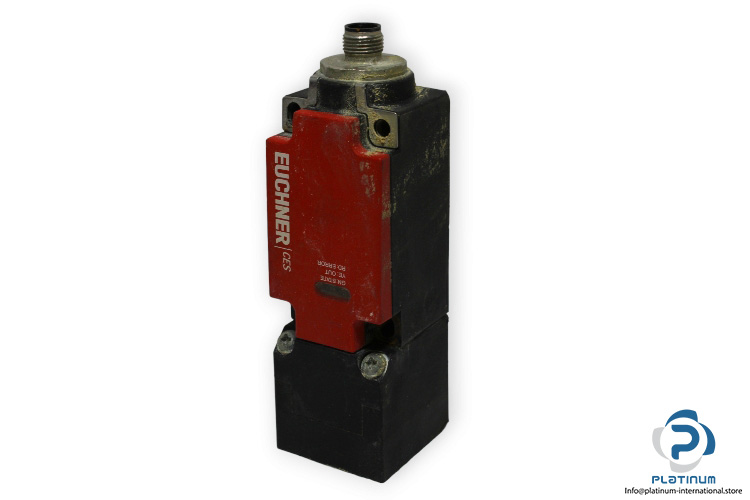

Euchner CES-A-C5H-01 Safety Switch

Manufacturer: EUCHNER
Type: Safety Switch
Model: CES-A-C5H-01
Part no.: 091458

Operating Voltage: 0.25 … 8 A
Rated insulation voltage Ui: 300 V
Rated impulse withstand voltage Uimp: 1.5 kV
Operating voltage DC: 18 … 24 … 27 V DC
Current consumption: 80 mA
Output type: Semiconductor output
Switching current: max. 20 mA
rated conditional short-circuit current: max. 100 A
Switching load: max. DC 24 V
Switching current: output, 1 … 400 mA
Connection: M12 plug connector
Protection class: IP67
Ambient temperature: -20 … +55 °C
Switching principle : Slow-action switching contact
