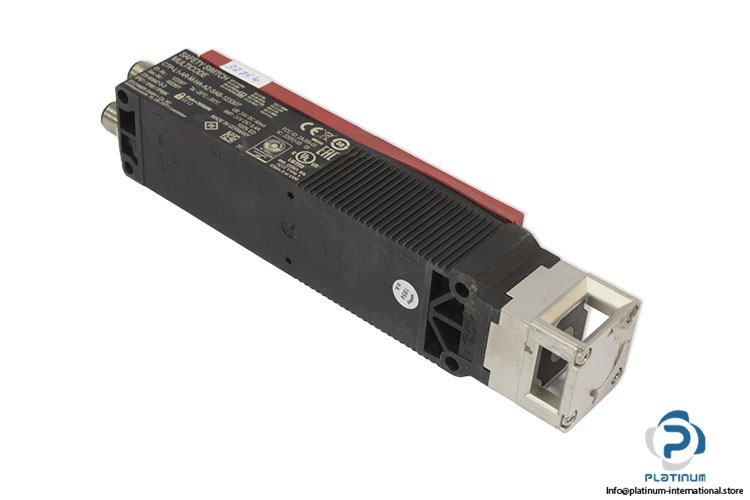

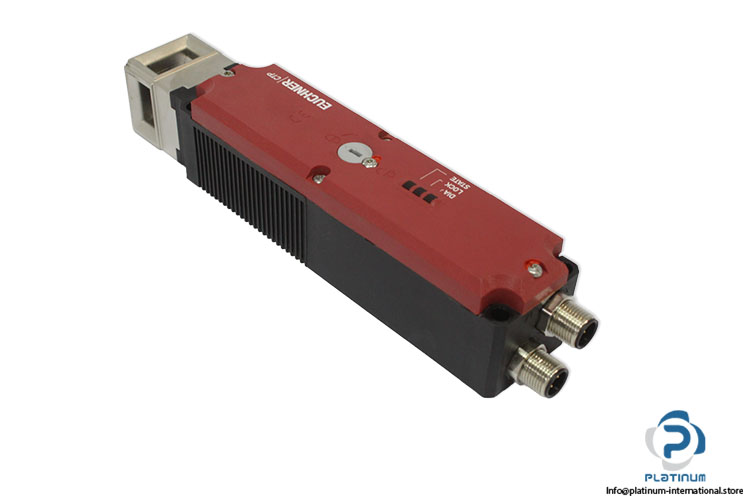

Euchner CTP-L1-AR-M-HA-AZ-SAB-123307 Safety Switch
신제품
재고 있음1 단위즉시 배송 가능
Safety Switch With Guard Locking Euchner CTP-L1-AR-M-HA-AZ-SAB safety switch with guard locking, designed for machine safety, secure access monitoring, and reliable industrial protection with IP67/IP69/IP69K protection.
방대한 재고
글로벌 배송
전문 지원
품질 보장

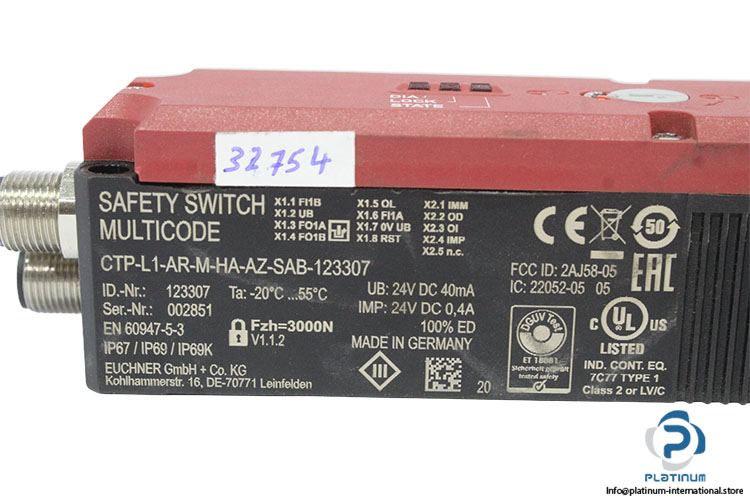

| Part No. | 123307 |
| SN | 002851 |
| FCC ID | 2AJ58-05 |
| IC | 22052-05 05 |
| Repeat accuracy R | 10 % |
| Electrical connection values | Fuse |
| external (operating voltage UB) | 0.25 ... 8 A |
| external (solenoid operating voltage IMP) | 0.5 ... 8 A |
| Power consumption | 6 W |
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 0.5 kV |
| Operating voltage DC UUB | 24 V DC -15% ... +15% reverse polarity protected, regulated, residual ripple<5%, PELV |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Switching load | according to UL 24V DC, Class 2 |
| Safety class | III |
| Test pulse duration | max. 1.0 ms |
| Test pulse interval | min. 140 ms |
| Degree of contamination (external, according to EN 60947-1) 3 | Monitoring output OD, OI, OL |
| Output voltage | 0.8xUB ... UB V DC |
| Switching current | 1 ... 50 mA |
| Safety outputs | FO1A/FO1B |
| Output type | 2 semiconductor outputs, p-switching, short circuit-proof |
| Output voltage ,HIGH U(FO1A) / U(FO1B) | UB-1.5 ... UB V DC |
| Output voltage LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| Discrepancy time,both safety outputs | max. 10 ms Acc. to EN IEC 60947-5-3 |
| Turn-on time | max. 400 ms |
| Off-state current Ir | max. 0.25 mA |
| Switching current,per safety output FO1A / FO1B | 1 ... 150 mA |
| Anfahrgeschwindigkeit | max. 20 m/min |

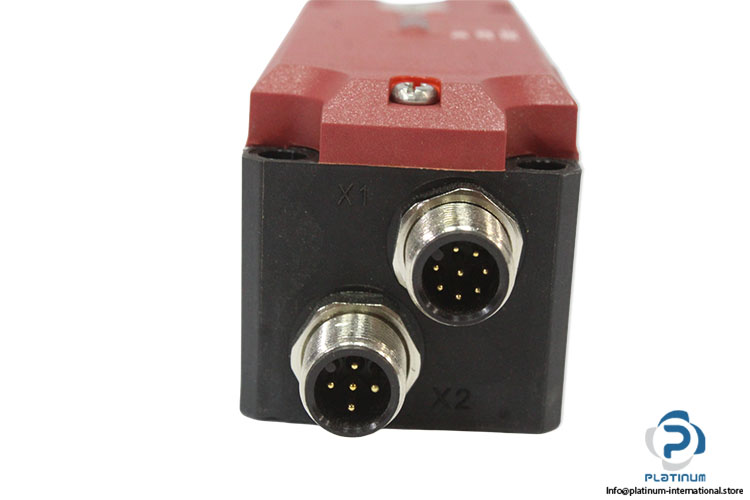

| Connection type 2 plug connectors | M12, 5- and 8-pin |
| Extraction force | 20 N |
| Ready delay | 8 s |
| Actuating force | 10 N |
| Installation orientation | any |
| Switching frequency | max. 0.5 Hz |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 106 |
| Overtravel | 5 mm |
| Retention force | 20 N |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP67/IP69/IP69K |
| Ambient temperature at UB Material 24 V DC | -20 ... 55 °C |
| Material,Switch head cover | Die-cast zinc |
| Safety switch housing | Reinforced thermoplastic |
| Locking force Fmax | 3900 N |
| Locking force FZh | 3000 N |
| Guard locking principle | Closed-circuit current principle |
| Protection class | IP67 / IP69 / IP69K |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099232 |
| Weight | 0,5 |
