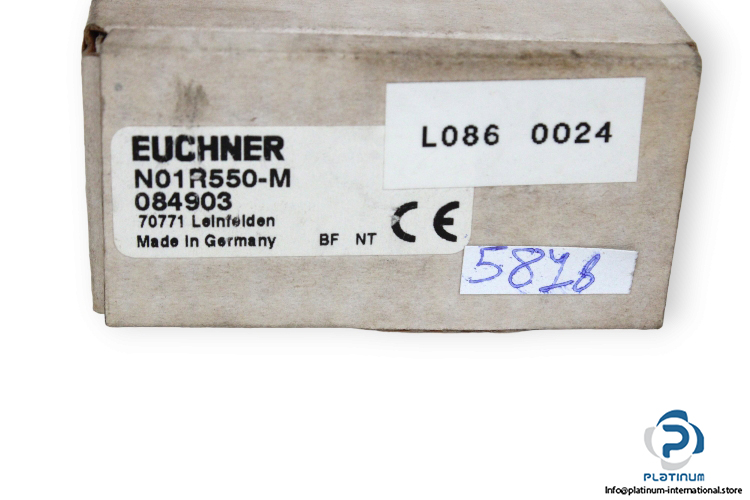

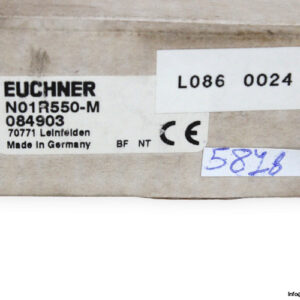

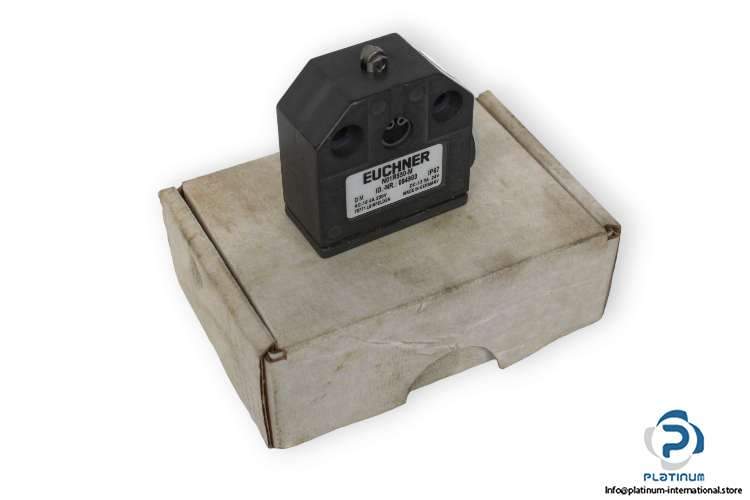

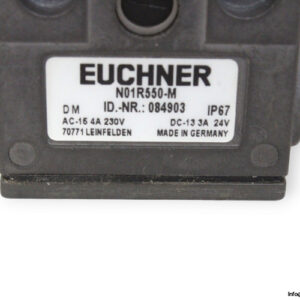

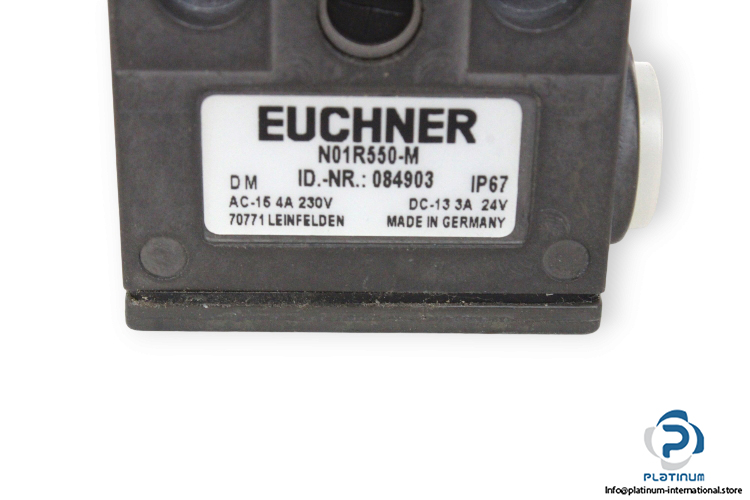

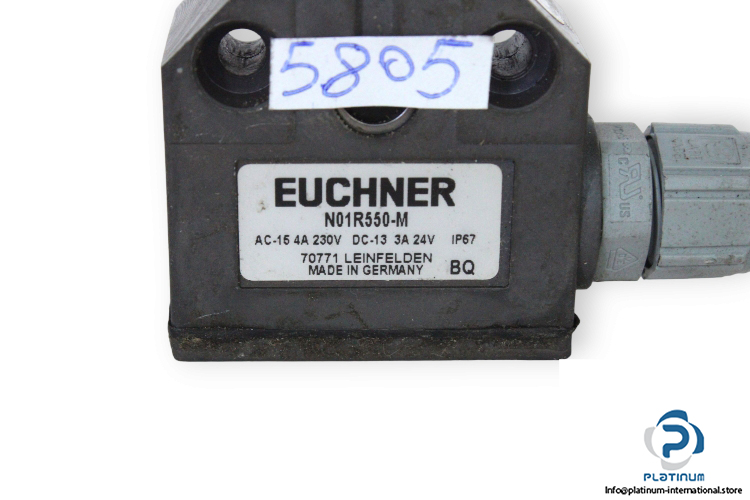

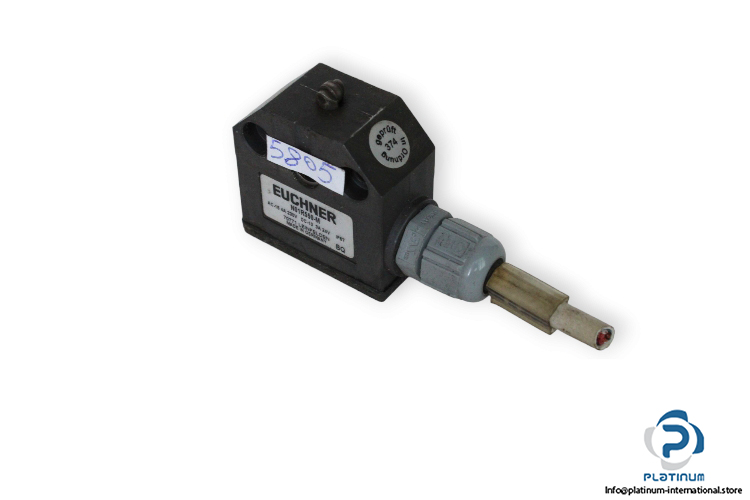

Euchner N01R550-M Limit Switch

Manufacturer: EUCHNER
Type: Limit Switch
Model: N01R550-M
ID No.: 084903

Connection cross section: 0.14 … 1 mm²
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Contact Rating:
AC-15        2 A 230 V
DC-13       2 A 24 V
Switching current min. at DC 24V: 10 mA
thermal rated current Ith: 6 A
Approach speed: 0.01 … 50 m/min
Connection type: 1 x M12 x 1.5
Number of door position NC contacts: 1 Changeover contact
Number of door position NO contacts: 1
Actuating element: Roller plunger
Actuating force: 15 … 20 N
Switching principle: Changeover contact with snap-action function
Degree of protection: IP67
Ambient temperature: -5 … +80 °C
Material
Contact: Silver alloy, gold flashed
Housing: Anodized die-cast alloy
