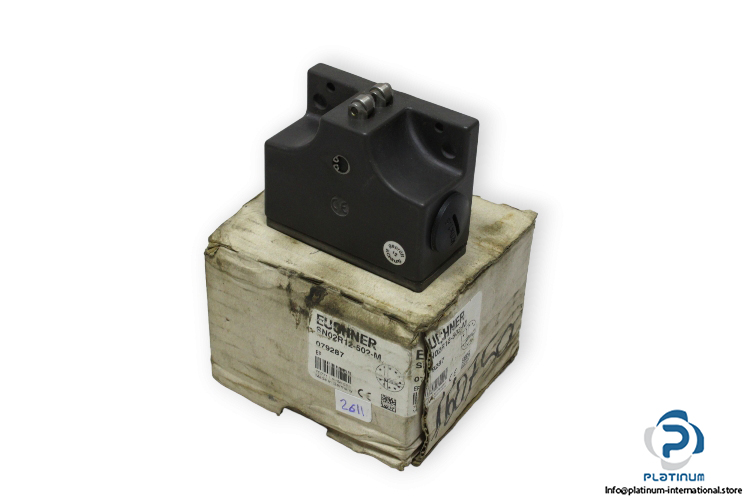

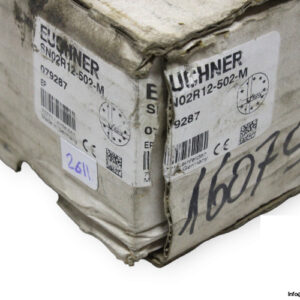

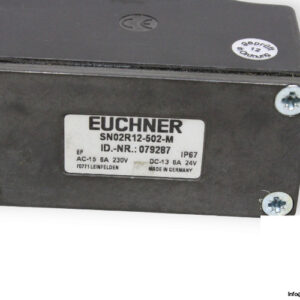

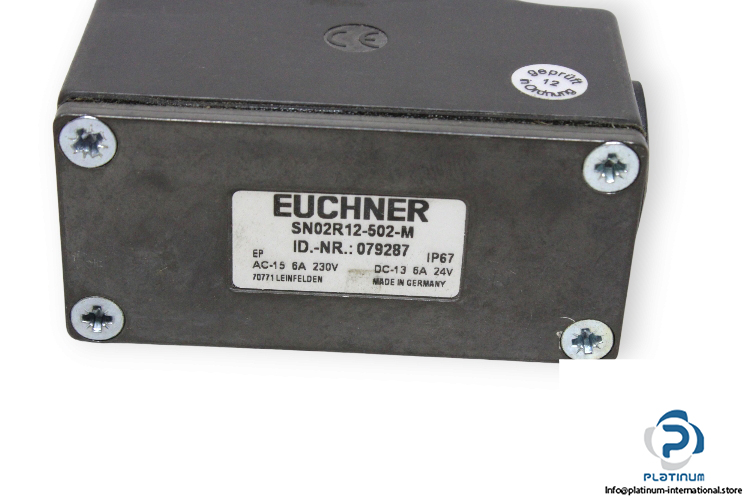

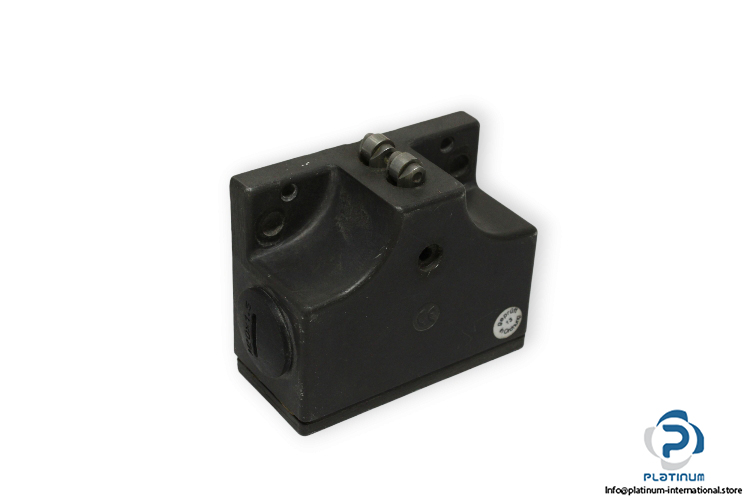

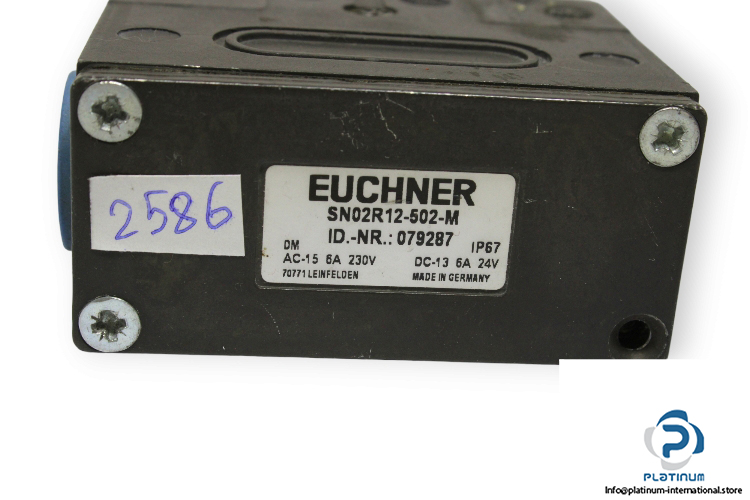

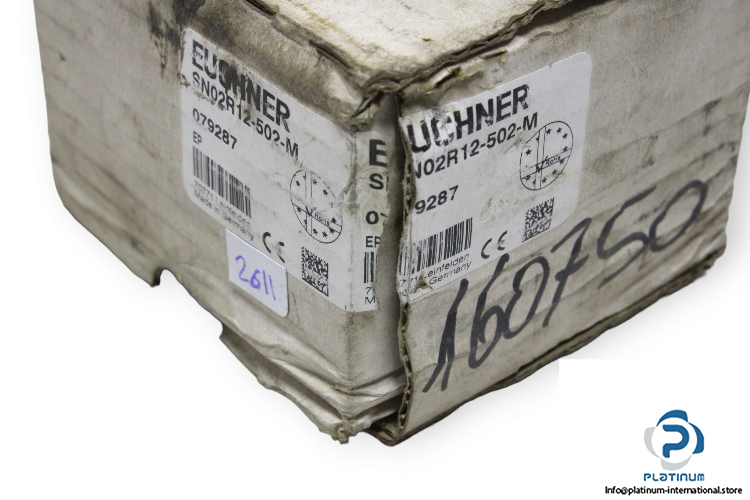

Euchner SN02R12-502-M Switching Element

Manufacturer: Euchner

Type: Switching Element

Model: SN02R12-502-M

Part No: 079287

Rated insulation voltage Ui: 250 V

Rated impulse withstand voltage Uimp: 2.5 kV

thermal rated current Ith: 8 A

Switching principle: Snap-action switching contact

Number normally closed contacts: 2

Number of switching elements: 2

Number of normally open contacts: 2

Utilization category: AC-15: 6A 230V, DC-13: 6A 24V

Actuating element: Roller plunger

Plunger spacing: 12 mm

Ambient temperature: -5 … +80 °C

Degree of protection: IP67

Material: Contact:Silver alloy, gold flashed, Housing: Die-cast aluminum, anodized
