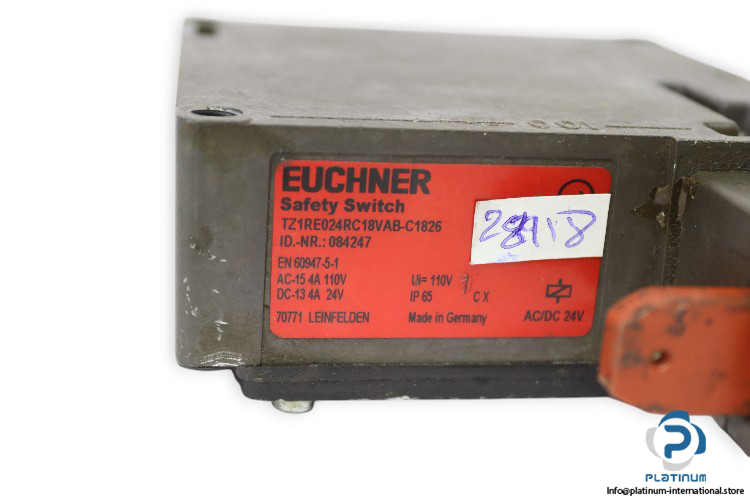

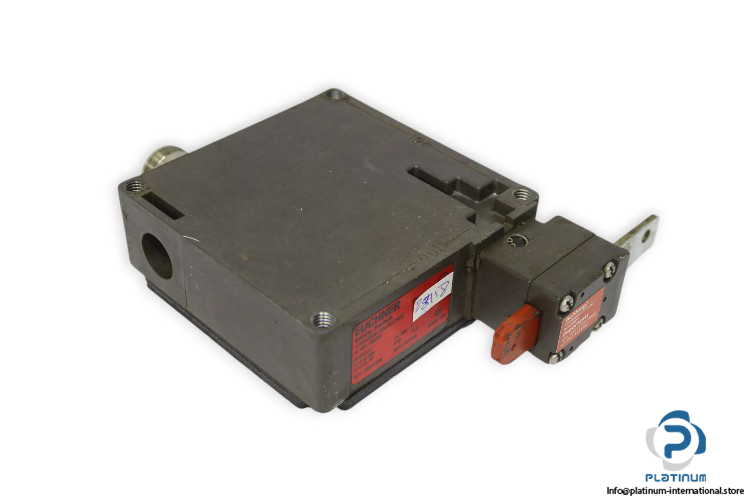

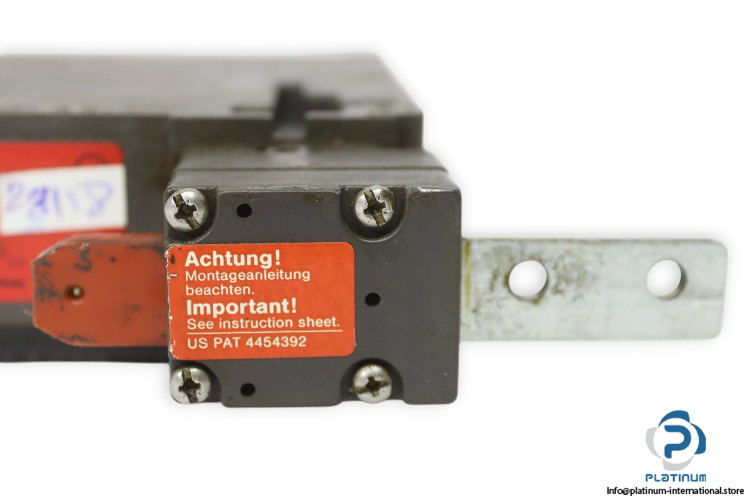

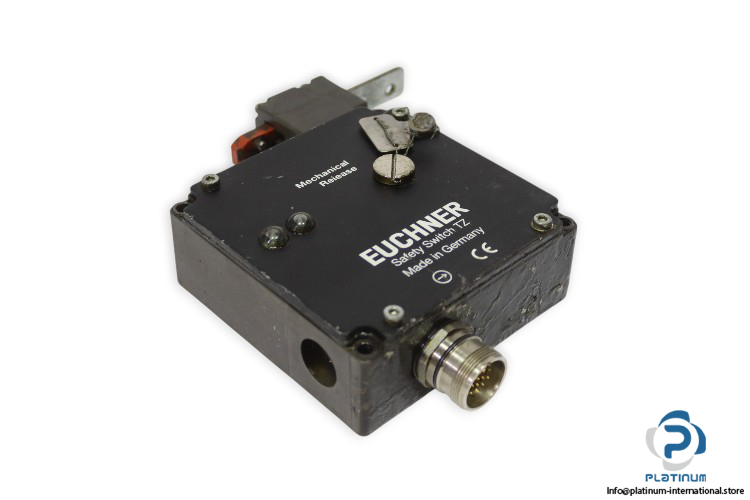

Euchner TZ1RE024RC18VAB-C1826 Safety Switch
중고
재고 있음1 단위즉시 배송 가능
Safety Switch
Euchner TZ1RE024RC18VAB-C1826 safety switch from the TZ series with 110 V/4 A AC, 24 V/4 A DC, 1500 N locking force, IP65 protection, and M23 plug connector for secure guard door monitoring.
방대한 재고
글로벌 배송
전문 지원
품질 보장
Euchner TZ1RE024RC18VAB-C1826 Safety Switch
The Euchner TZ1RE024RC18VAB-C1826 is a high-reliability safety switch from the TZ series, designed for secure monitoring of guard doors in industrial automation. With robust construction and advanced safety features, it ensures dependable operation even in demanding environments.
Manufacturer: EUCHNER
Type: Safety Switch
Model: TZ1RE024RC18VAB-C1826
ID No.: 084247
MRN: 4454392
Series: TZ
| Operating Voltage, Current (AC-15) | 110 V, 4 A |
| Operating Voltage, Current (DC-13) | 24 V, 4 A |
| Rated Insulation Voltage Ui | 110 V |
| Rated Impulse Withstand Voltage Uimp | 1.5 kV |
| Power Consumption | 10 W |
| Thermal Rated Current | 4 A |
| Locking Force Fzh | 1500 N |
| No. of Door Position NO Contacts | 1 |
| No. of Guard Lock Monitoring NO Contacts | 2 |
| No. of Door Position Positively Driven Contacts | 2 |
| No. of Guard Lock Monitoring Positively Driven Contacts | 2 |
| Protection Class | IP65 |
| Ambient Temperature Operation | -25 to 80 °C |
| Material | Contact “ Silver alloy, gold flashed; Housing “ Anodized die-cast alloy |

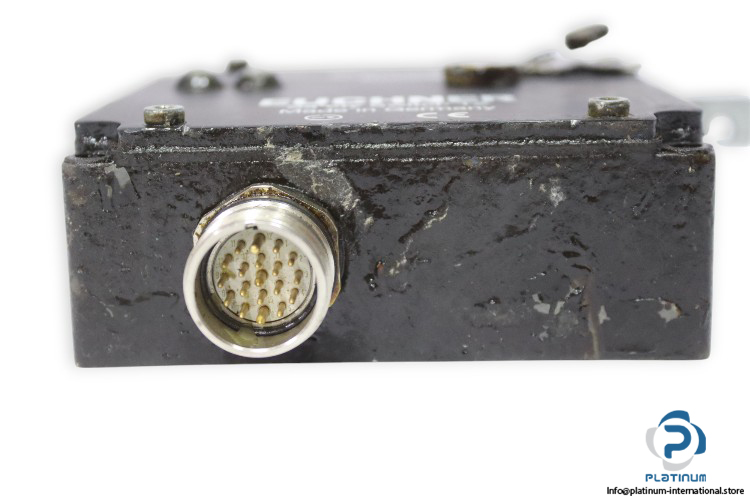

| Connector | Plug connector M23 |
