F180 Tyer Coupling
신제품
재고 있음2 단위즉시 배송 가능
Tyre Coupling F180은 산업용 동력 전송을 위해 설계된 고성능 탄성 커플링입니다. 유연한 천연 고무 구조를 특징으로 하며, 최대 보어 크기는 150mm(테이퍼 락) 및 125mm(보어 및 키드), 공칭 토크 등급은 6270Nm으로 효율적인 오정렬 보상을 보장합니다.
125150boreCompensationCoucouplingdamping.ElasticFlexibleHighIndustrialKeyedLockMisalignmentmmNaturalPowerRubberTaperTorqueTransmissionTyreVibration
방대한 재고
글로벌 배송
전문 지원
품질 보장

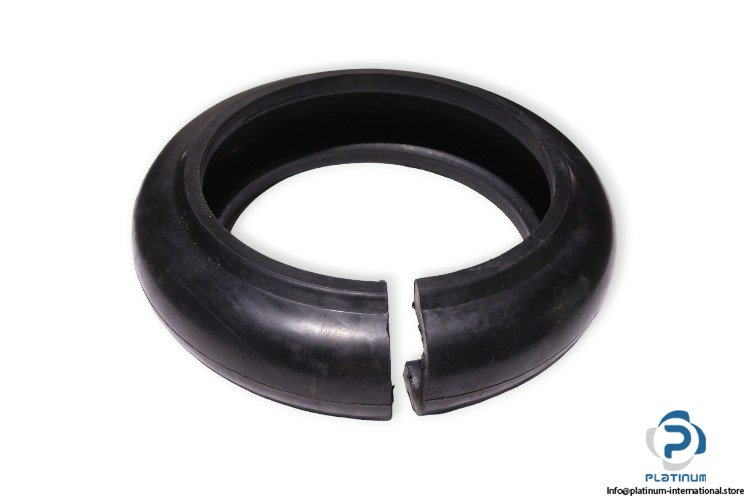

F180 Tyre Coupling
The F180 Tyre Coupling is an elastic, high-performance coupling designed to absorb shock loads, dampen vibrations, and compensate for misalignment in industrial power transmission applications. Constructed with durable natural rubber, it provides excellent flexibility and resilience while ensuring efficient torque transmission. Suitable for various applications requiring high misalignment capacity and smooth power transfer.
- Type: Tyre Coupling
- Model: F180
Technical Specifications
- Max Bore Size:
- Taper Lock Bush: 150 mm
- Bore and Keyed: 125 mm
- Material: Natural Rubber
- Max Speed: 1500.0 RPM
- Component: Tyre
- Coupling Type: Elastic
- Nominal Torque Rating (Nm): 6270
- Size: F180
- Angular Misalignment Capacity: 4°
- Max End Float: 6.0 mm
- Max Parallel Misalignment: 4.8 mm
