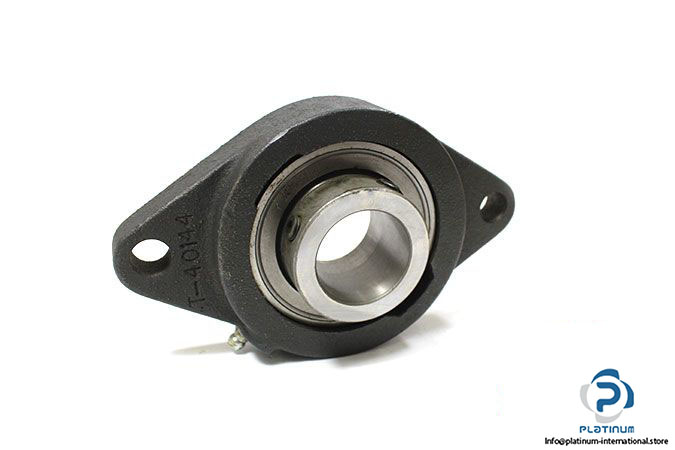

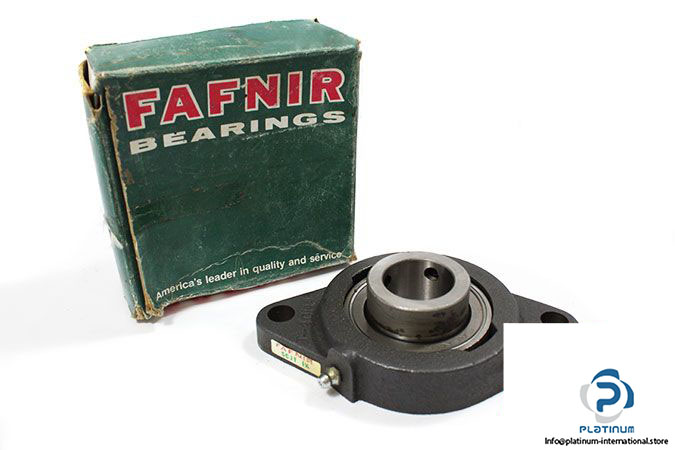

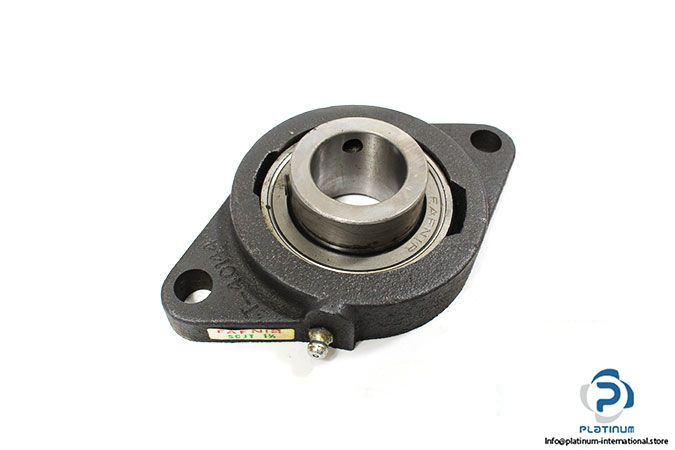

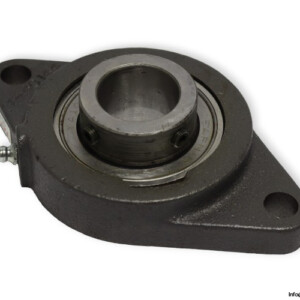

Fafnir Scjt 1-1/4 TWO-Bolt Flanged Unit

Manufacturer: FAFNIR
Type: Two-Bolt Flanged Mounted Bearings Setscrew Locking
Model: SCJT 1 1/4
Bearing Number: YA104/R

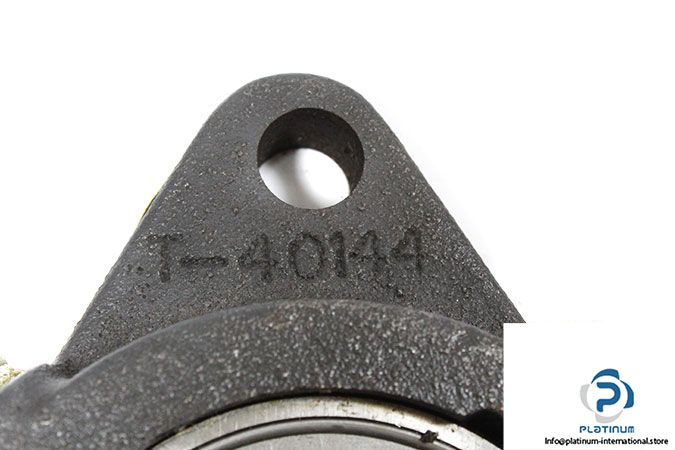

Housing Number: T-40144

Series: SCJT

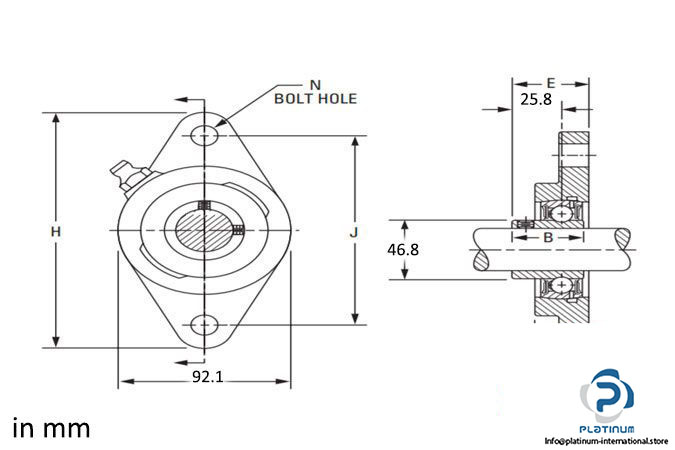

Dimensions
Shaft Size d: 1.25 Inch
Total Length H: 6.126 inch
Total Height L: 3.626 inch
Housing Width A: 0.969 inch
Bolt Hole Spacing J: 5.125 inch
Bolt Hole Size N : 0.516 inch
Inside Ring Width B: 1.4370 inch
Basic load rating:
Dynamic Cr: 3440 lbf
Static C0r: 6400 lbf
Seal Type: Narrow Shroud
Material, housing: Cast iron
Housing Construction: Two-Bolt Flange
Locking Device: Setscrew
