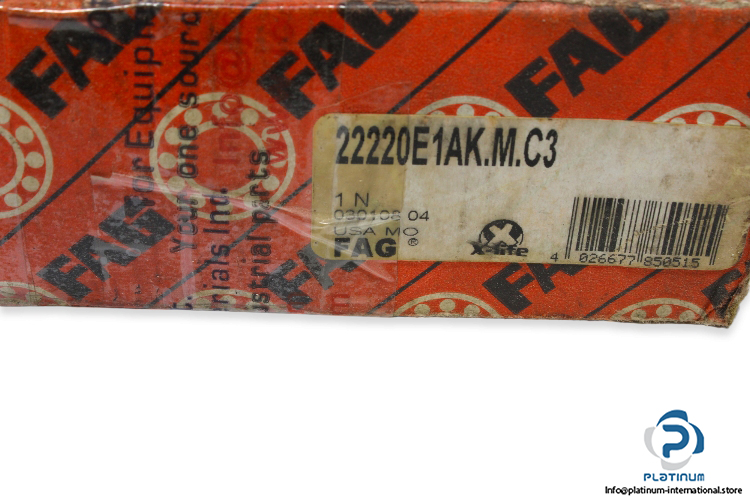

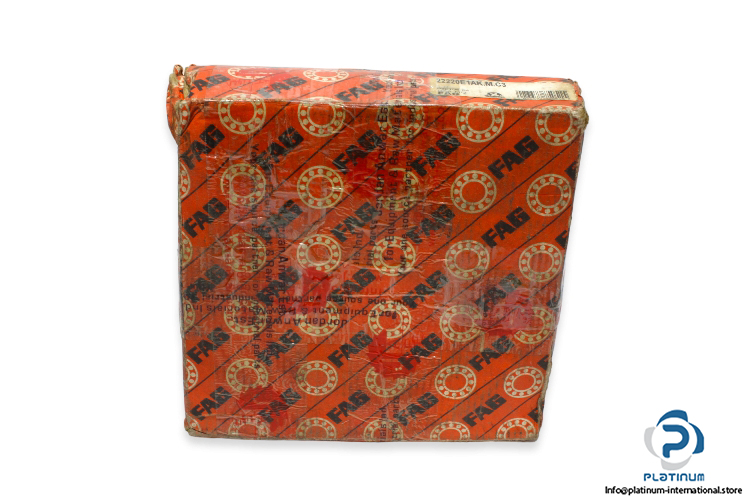

FAG 22220E1AK.M.C3 Spherical Roller Bearing
Manufacturer: Schaeffler FAG
Type: Spherical Roller Bearing with tapered bore
Model: 22220 E1AK.M.C3
Replaces: 22220-E1A-XL-K-M-C3, 22220-E1A-K-M-C3
Dimensions:
Bore Diameter d: 100 mm
Outer diameter D: 180 mm
Width: 46 mm
Bore type: Tapered 1:12
Dynamic load rating: 430000 N
Static load rating: 475000 N
Fatigue load limit: 53000 N
limiting speed: 4550 RPM
Reference speed: 3150 RPM
Radial internal clearance: Group 3 (C3)
Cage material: Solid brass cage
Operating temperature: -30 … +200 °C
