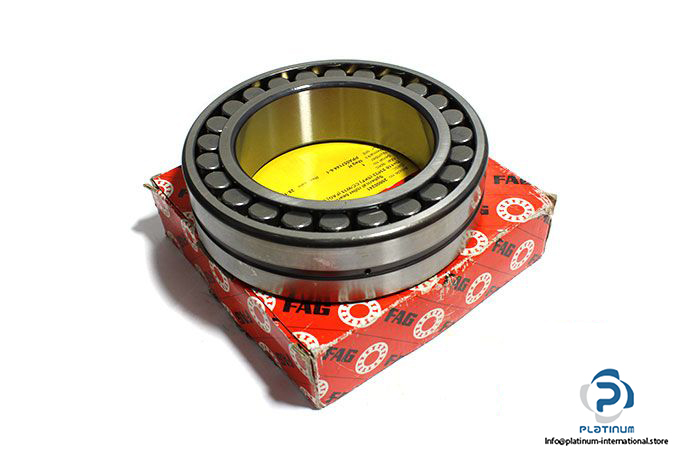

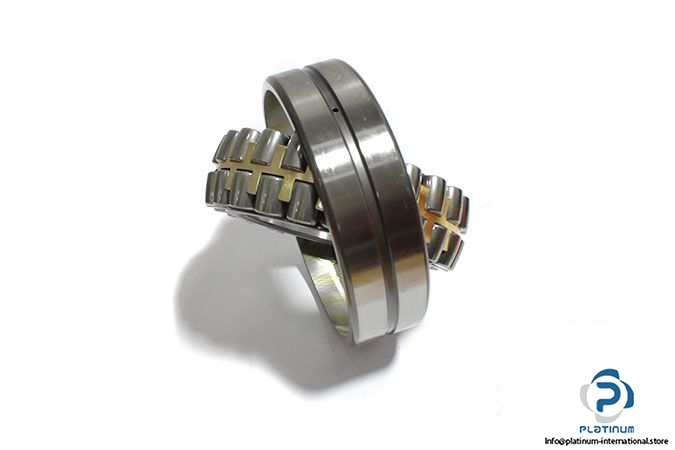

FAG 23022-E1A-M Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing

Model: 23022 E1A M

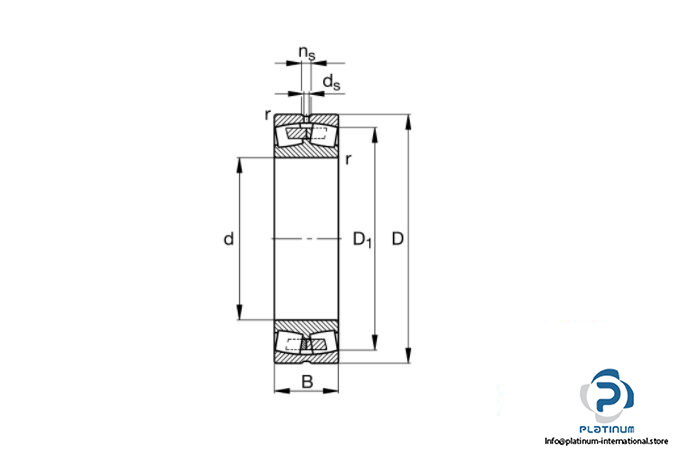

Dimensions:

Bore Diameter d: 110 mm

Outside diameter D: 170 mm

Width B: 45 mm

Minimum chamfer dimension r_min: 2 mm

Basic load ratings:

Dynamic C_r: 400 kN

Static C_0r: 530 kN

Fatigue load rating: 54 kN

Limiting speed: 4200 rpm

Reference Speed: 3000 rpm

Design: E1A, without central rip

Bore type: Cylindrical

Cage: Solid brass cage

Temperature range: -30 … +200 °C

Weight: 3.75 kg
