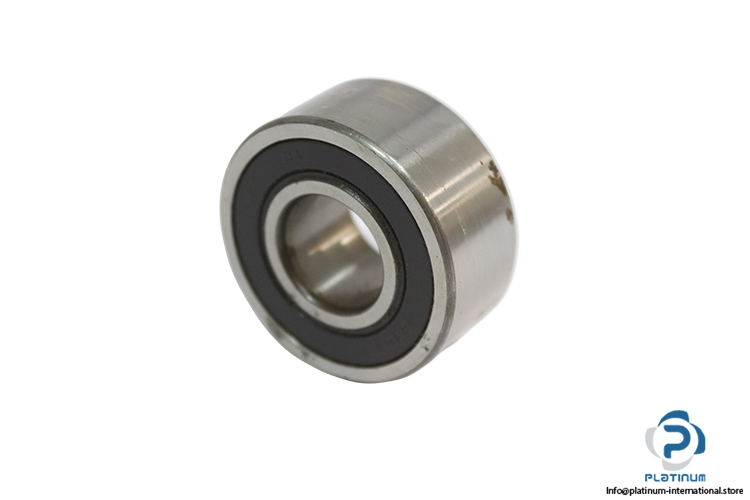

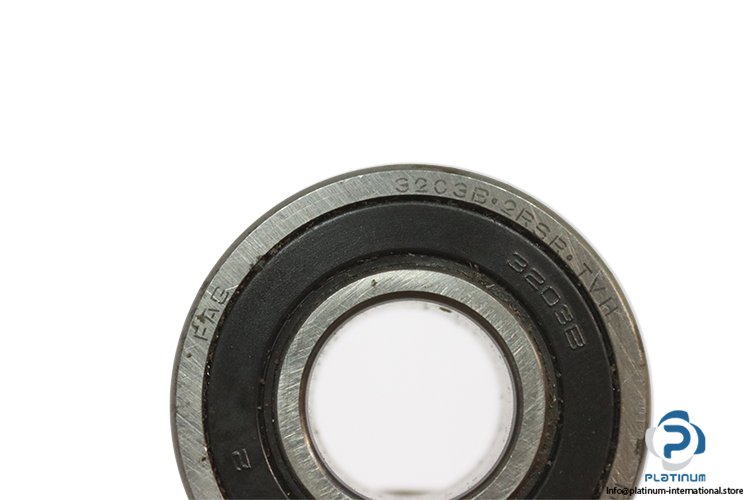

FAG 3203B.2RSR.TVH Angular Contact Ball Bearing
FAG 3203B.2RSR.TVH Angular Contact Ball Bearing
The FAG 3203B.2RSR.TVH is a double row angular contact ball bearing designed to support combined radial and axial loads while ensuring reliable performance and long service life in industrial applications.
Manufacturer: FAG / Schaeffler
Type: Double Row Angular Contact Ball Bearing
Model: 3203B.2RSR.TVH
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 40 mm |
| Width (B) | 17.5 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 15,500 N |
| Static Load Rating (C0r) | 9,500 N |
| Fatigue Load Limit (Cur) | 660 N |
| Limiting Speed | 14,600 rpm |
| Cage | TVH, solid cage made of glass-fiber reinforced polyamide PA66 |
| Sealing | 2RSR, rubber seals on both sides |
| Design Variant | B, bearing without filling slot |
| Operating Temperature Range | -20 to +100 °C |
