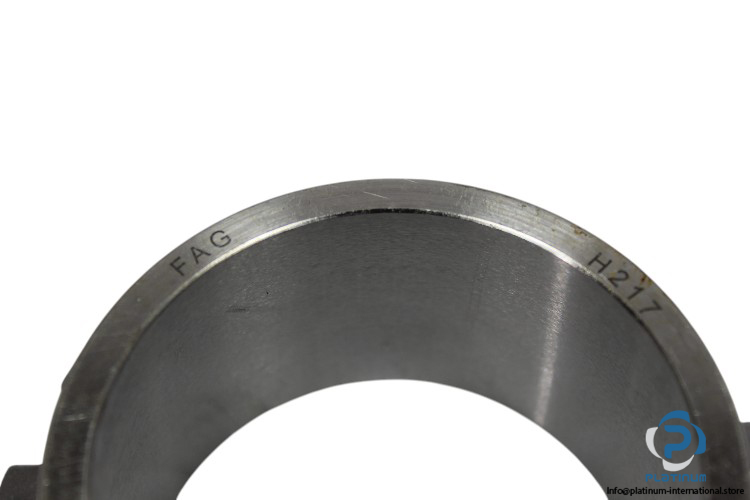

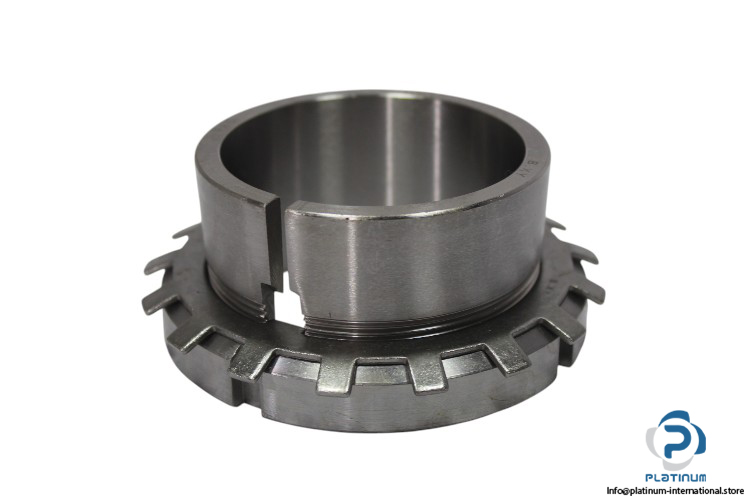

FAG H217 Adapter Sleeve
신제품
FAG H217 Adapter Sleeve
The FAG H217 Adapter Sleeve is a high-precision mechanical component used for mounting tapered bore bearings onto cylindrical shafts. With its robust construction and compatibility with KM17 and MB17 locking devices, it ensures secure, accurate, and vibration-resistant bearing positioning in various industrial setups.
Manufacturer: FAG
Type: Adapter Sleeve
Model: H217
| Bore Diameter (d1) | 75 mm |
| Bore Diameter (Bearing) | 85 mm |
| Outer Diameter (Lock Nut) | 110 mm |
| Sleeve Length | 50 mm |
| Width (Nut and Lock) | 17.75 mm |
| Thread (G) | M85x2 |
| External Taper | 1:12 |
| Locknut | KM17 |
| Fuse | MB17 |
