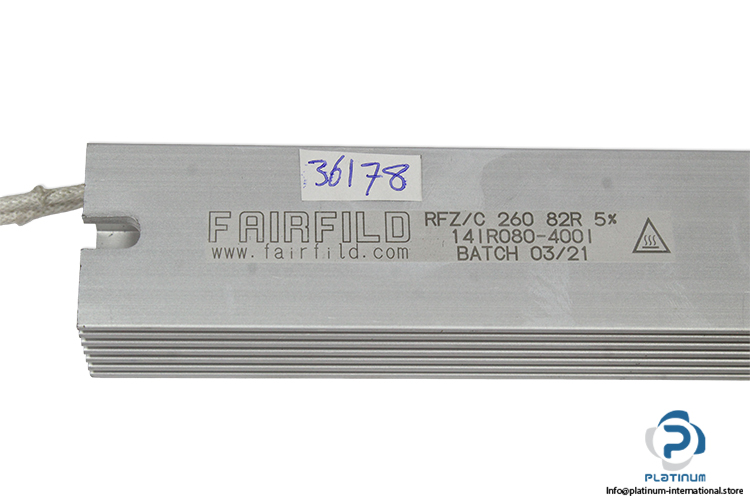

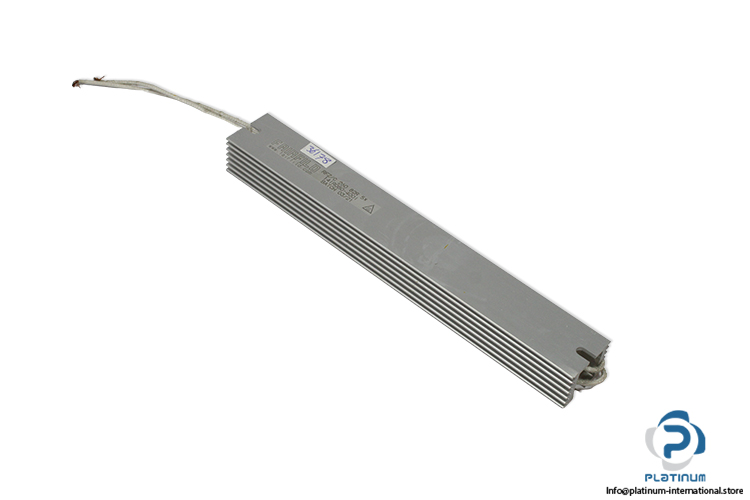

Fairfild 14IR080-400I Load Resistor
FAIRFILD 14IR080-400I Load Resistor
The FAIRFILD 14IR080-400I load resistor is a high-performance industrial braking and load resistor designed for reliable power dissipation and stable resistance characteristics. Built with an aluminium dissipater and coiled wire inserted in perforated ceramic, the unit is filled with quartzite sand to ensure efficient heat distribution and operational durability.
Manufacturer: FAIRFILD
Type: Load Resistor
Model: 14IR080-400I
Additional Model: RFZ/C 260 82R 5x
Code: 03/21
| Resistance | 82 Ohms |
| Tolerance | ±5% |
| Protection Degree (IP) | IP54 |
| Rated Continuous Power | 195 W |
| Construction | Aluminium dissipater with coiled wire inserted in perforated ceramic and filled with quartzite sand. |
