Festo 10536 Stepper Module
중고
재고 있음3 단위즉시 배송 가능
STEPPER MODULE
FESTO TAB-2N-PK-3-01-B stepper module with integrated AND/OR logic poppet valve and J-5-3,3 pneumatic valve for air control applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

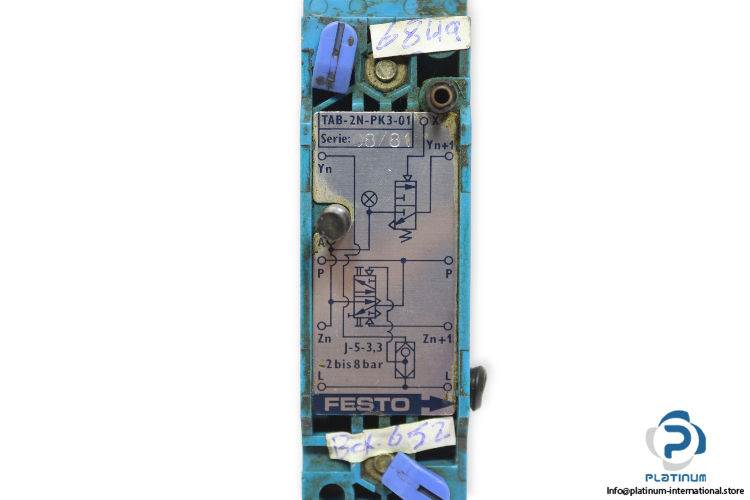

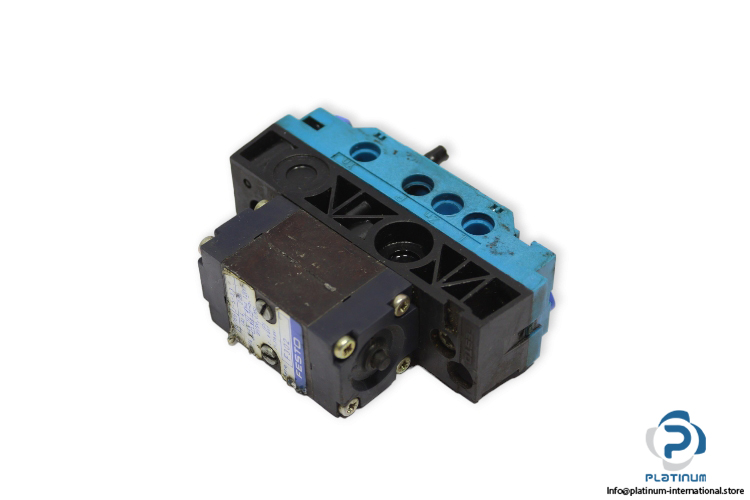

FESTO TAB-2N-PK-3-01-B STEPPER MODULE WITH PNEUMATIC VALVE
The FESTO TAB-2N-PK-3-01-B is a high-precision stepper module designed for pneumatic automation systems. Engineered with a poppet valve featuring integrated AND and OR elements, it supports accurate control in complex air circuits. Supplied with a FESTO J-5-3,3 pneumatic valve for efficient flow regulation.
Manufacturer: FESTO
Type: Stepper Module
Model: TAB-2N-PK-3-01-B
Part No.: 10536
Valve Technical Information
| Fluid | Air |
| Type of Actuation | Pneumatically |
| Design | Poppet Valve with Integrated AND & OR Element |
| Operating Pressure | 2 / 8 bar / 29 / 116 PSI |
| Mounting | on Mounting Frame |
| Housing Materials | Plastic, Aluminium |
| Temperature Range | -10 / 60 °C |

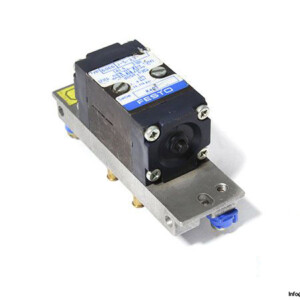

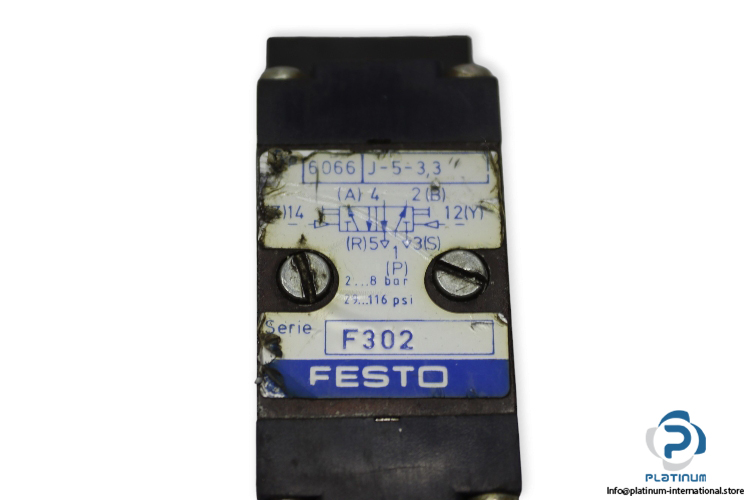

| Attachment | FESTO J-5-3,3 PNEUMATIC VALVE |
| Part No. | 6066 |
| Fluid | Air |
| Design | Poppet Valve |
| Pressure | 1 / 8 bar |
| Flow Rate | 130 l/min |
| Housing Material | Plastic, Aluminium |
