Festo 11252 Round Cylinder
중고
재고 있음2 단위즉시 배송 가능
Round Cylinder
Festo DGS-25-25-PPV is a compact, double-acting pneumatic cylinder with a 25 mm piston and 25 mm stroke. Designed for short-stroke applications, it features G1/8 connection and adjustable pneumatic cushioning at both ends.25ActingAdjustableAirCompressedCushioningCylinderDGS-25-25-PPVDoubleFestoG1/8IndustrialmmPneumaticPneumaticsPortRoundShortStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

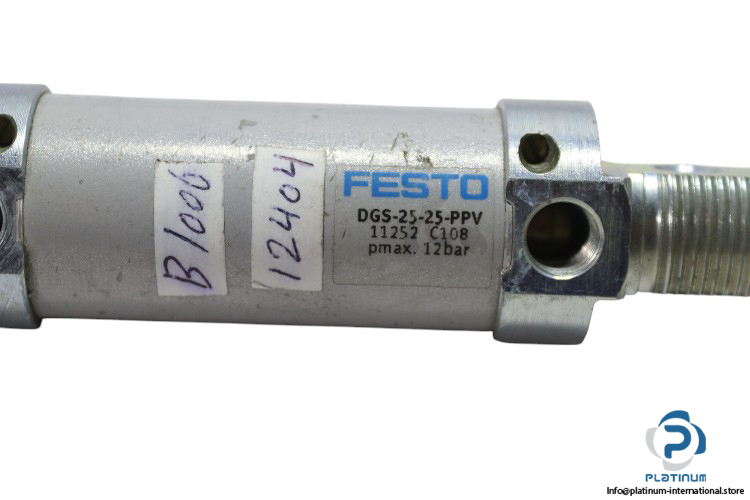

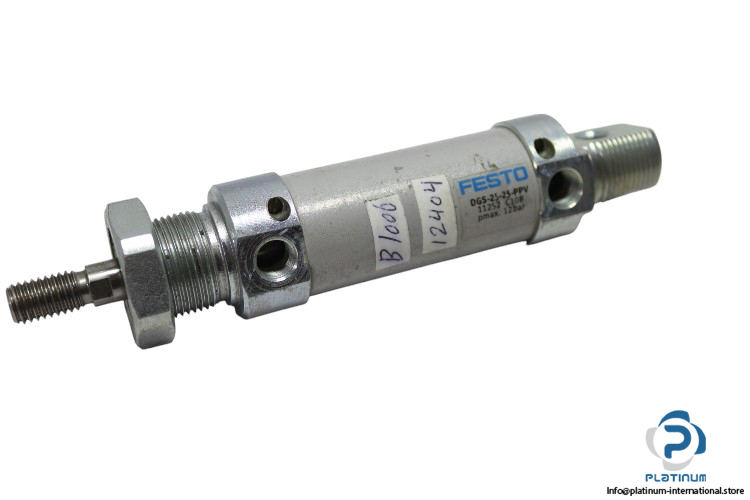

Festo DGS-25-25-PPV Round Cylinder “ Part No. 11252
The Festo DGS-25-25-PPV is a compact and durable pneumatic round cylinder, ideal for short-stroke applications in industrial automation. With a 25 mm piston and 25 mm stroke, this double-acting cylinder features adjustable pneumatic cushioning and high-pressure performance up to 12 bar.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-25-25-PPV
Part No.: 11252
| Media | Compressed Air |
| Cushioning | Pneumatic Cushioning Adjustable at Both Ends |
| Piston Diameter | 25 mm |
| Stroke | 25 mm |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Operating Pressure | Max. 12 bar |
| Ambient Temperature | -20 to 80 °C |
