Festo 12460 Double Solenoid Valve
중고
재고 있음4 단위즉시 배송 가능
325,00$
DOUBLE SOLENOID VALVE
FESTO MDH-5/3E-3/4-D-4-24DC valve with 5/3 exhausted function and 24V DC solenoid coil for precise industrial air control.24VDC5/3AirAluminiumcoilControlDoubleExhaustedFestoGateIndustrialMDH-5/3E-3/4-D-4-24DCPistonPneumaticsolenoidValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

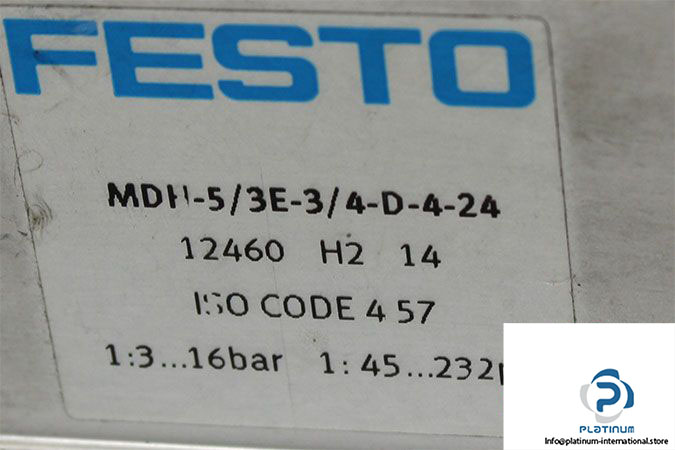

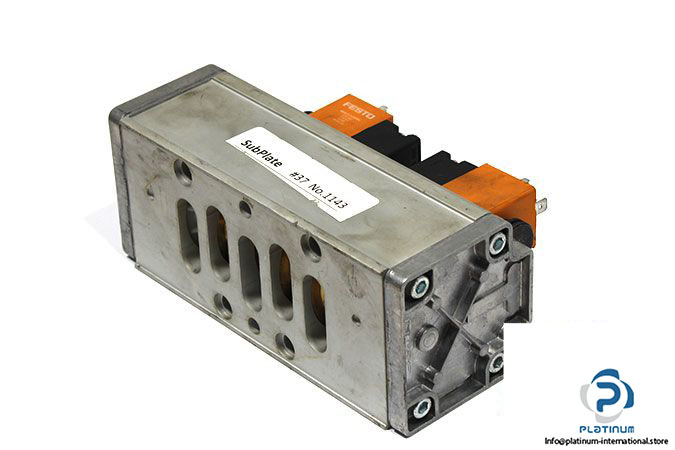

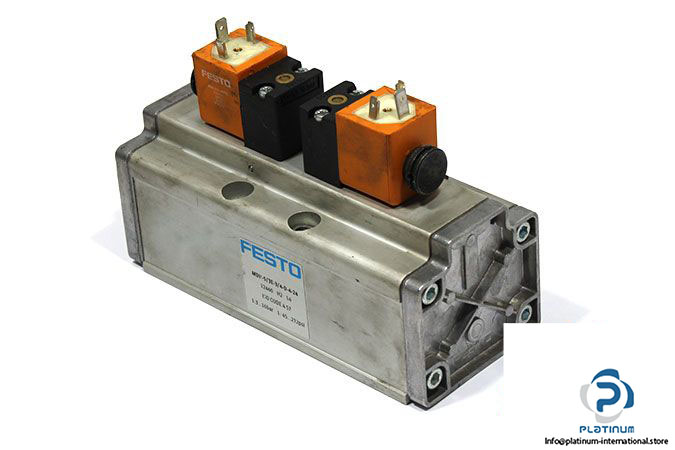

FESTO MDH-5/3E-3/4-D-4-24DC DOUBLE SOLENOID VALVE WITH COIL
The FESTO MDH-5/3E-3/4-D-4-24DC is a high-performance double solenoid valve designed for industrial pneumatic control. It features a robust piston gate design, reliable 5/3 exhausted function, and durable aluminium body, making it ideal for complex automation systems.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MDH-5/3E-3/4-D-4-24DC
Part No.: 12460
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/3 exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 16 bar |
| Nominal Flow Rate | 4800 l/min |
| Pneumatic Connection | Sub-base size 4 / G1/4 |
| Material | Aluminium |
| Ambient Temperature | -10 / 50 °C |

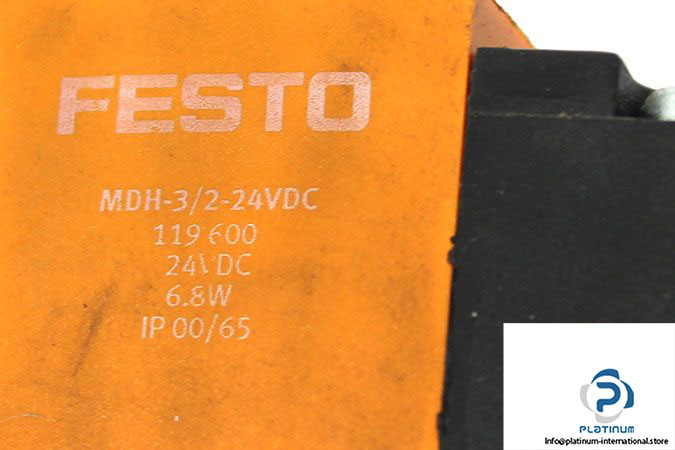

| Solenoid Coil Attachment | FESTO MDH-3/2-24VDC |
| Part No. | 119600 |
| Supply Voltage | 24 V DC |
| Power Consumption | 6.8 W |
| Protection Class | IP00 / IP65 |
