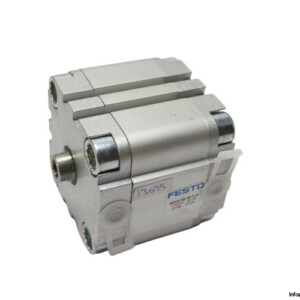

Festo 156552 Compact Cylinder
중고
재고 있음1 단위즉시 배송 가능
Compact Cylinder
The Festo ADVU-50-20-P-A compact cylinder is a double-acting pneumatic actuator with a 50 mm piston diameter and 20 mm stroke. With its durable materials and cushioning at both ends, it is ideal for industrial applications requiring precision and reliability.
신제품
재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

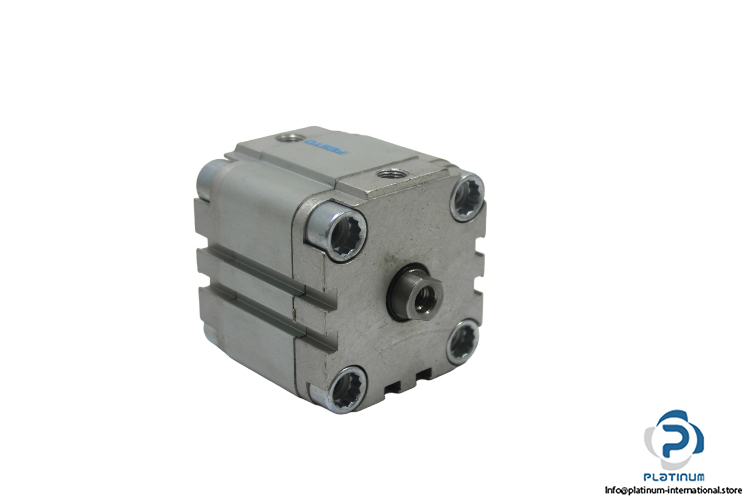

Festo ADVU-50-20-P-A “ Compact Cylinder
The Festo ADVU-50-20-P-A compact cylinder is a highly efficient actuator, designed for precision and reliability in a wide range of pneumatic applications. With its durable construction, it ensures excellent performance even under demanding conditions.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADVU-50-20-P-A

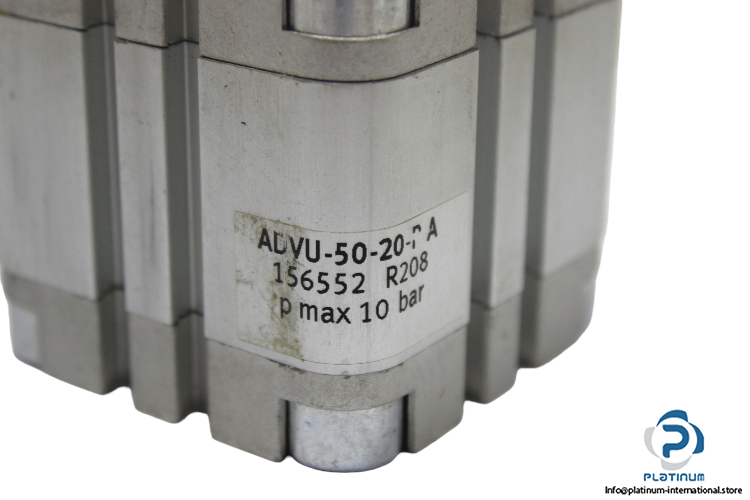

Part No: 156552 R208
| Operating Medium | Compressed air |
| Design of Cylinder | Piston rod |
| Piston Rod Thread | M8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Piston-Rod End | Female thread |
| Variants | Piston rod at one end |
| Mode of Operation | Double-acting |
| Operating Pressure | 0.8 bar to 10 bar |
| Piston Diameter | 50 mm |
| Stroke | 20 mm |
| Pneumatic Connection | G1/8 |
| Cover Material | Wrought aluminum alloy |
| Material Dynamic Seals | NBR |
| Material Piston Rod | High-alloy steel |
| Ambient Temperature Range | -20 to 80°C |
