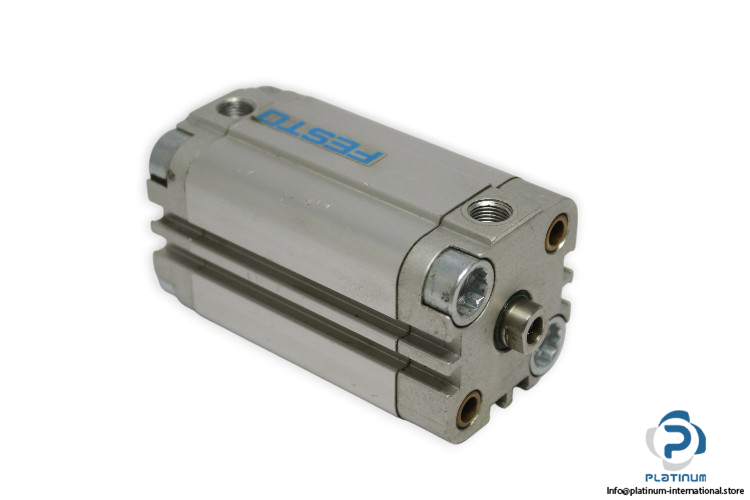

Festo 156881 Compact Cylinder
Manufacturer: FESTO
Type: Compact Cylinder

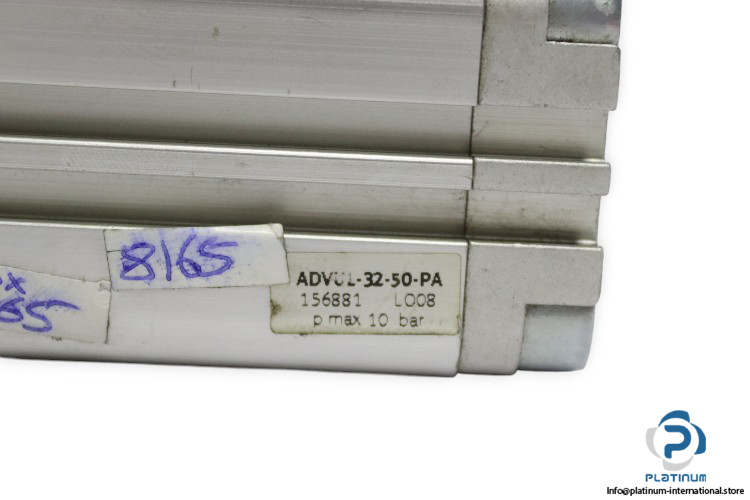

Model: ADVUL-32-50-PA
Part No.: 156881
Stroke Length: 50 mm
Piston Diameter: 32 mm
Piston rod thread: Female
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Pneumatic Connection: G1/8
Temperature: -20 … 80 °C
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy
