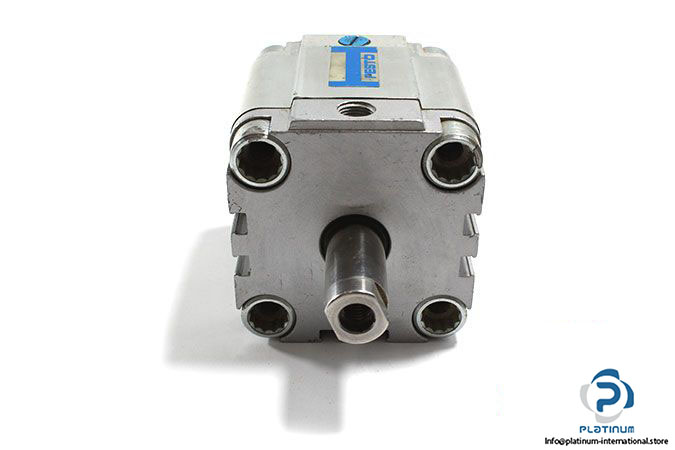

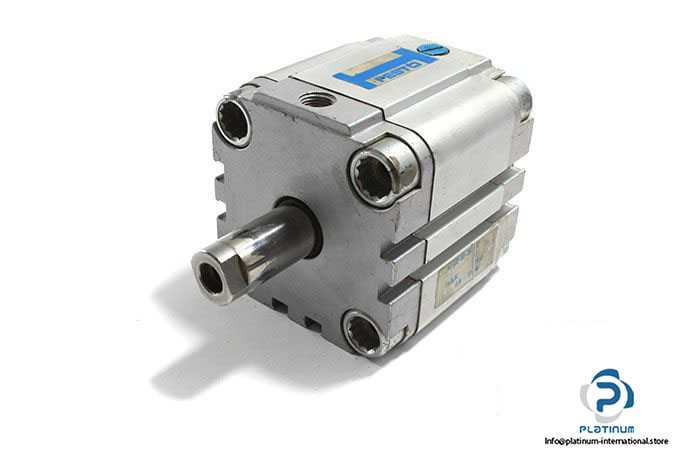

Festo 157239 Compact Cylinder

Manufacturer: FESTO

Type: Single Acting Compact Cylinder

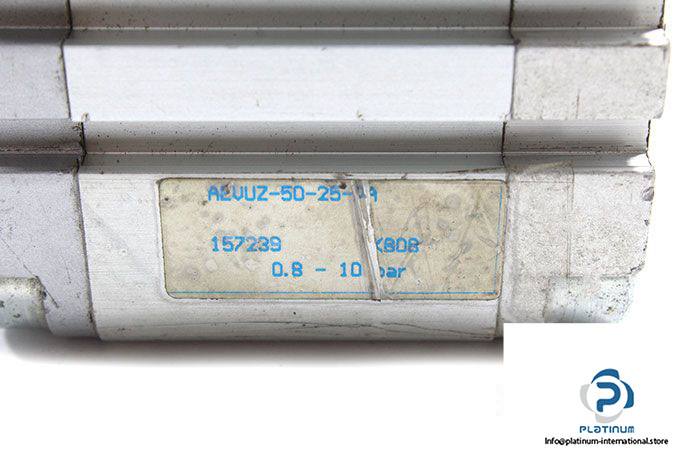

Model: AEVUZ-50-25-P-A

Part No.: 157239

Material

,,Cover: Wrought Aluminum alloy

,,Piston rod: High alloy steel, non-corrosive

,,Cylinder barrel: Wrought Aluminum alloy

Stroke Length: 25 mm

Piston Diameter: 50 mm

Piston rod end: Female thread

Operating Pressure: 1.3 … 10 bar

Mode of operation: Single-Acting, Pulling Action

Pneumatic Connection: G1/8

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Temperature: -20 … 80 °C

Weight: 0.75 kg
