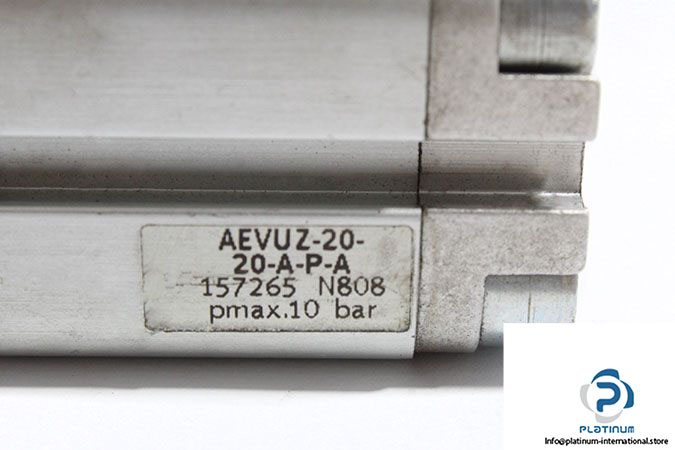

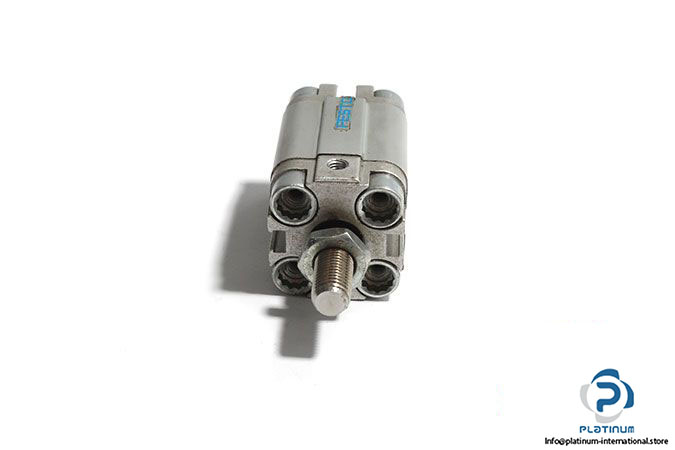

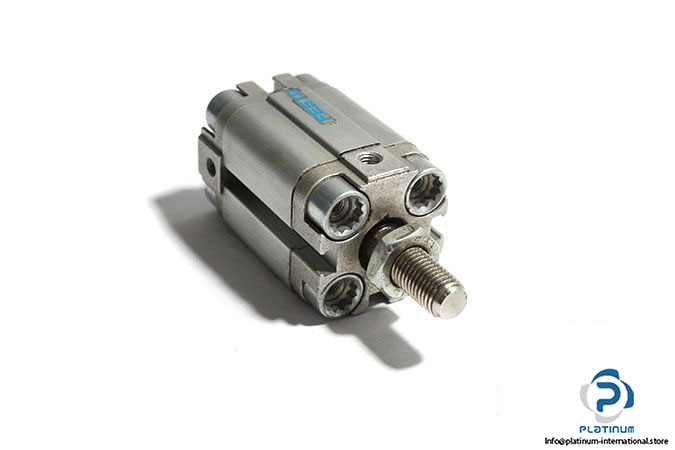

Festo 157265 Compact Cylinder

Manufacturer: FESTO

Type: Compact Cylinder

Model: AEVUZ-20-20-A-P-A

Part No.: 157265



Cover material: Wrought aluminum alloy

Piston rod material: High-alloy stainless steel

Stroke Length: 20 mm

Piston Diameter: 20 mm

Piston rod thread: Male

Max. Operating Pressure: 10 bar

Mode of operation: Single acting

Cushioning: Elastic cushioning rings/pads at both ends

Position Sensing: For proximity sensing

Variant: Through piston rod

Pneumatic Connection: 5 mm

Temperature: -20 … 80 °C

Weight: 0.2 kg
