Festo 159624 Pressure Regulator
Pressure Regulator & Pressure Gauge

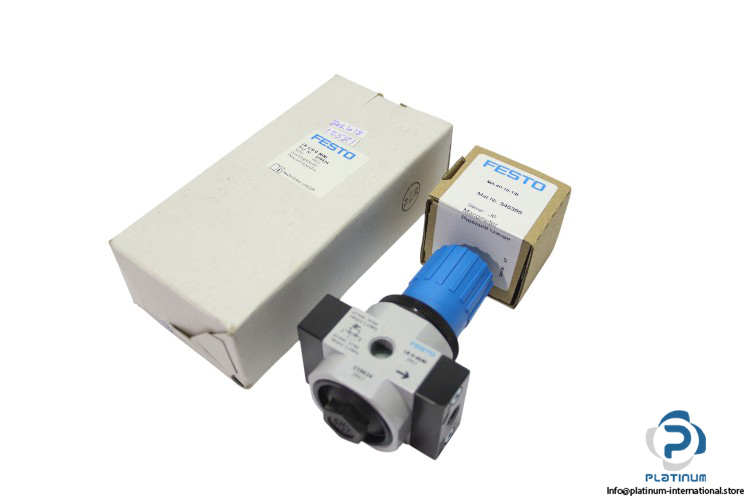

The Festo LR-1/8-D-MINI pressure regulator with a rotary knob actuator lock ensures precise control of compressed air systems. The attached FESTO 345395 pressure gauge offers accurate readings, making this set ideal for miniaturized applications requiring flow rates of 800 l/min.Festo LR-1/8-D-MINI “ Pressure Regulator

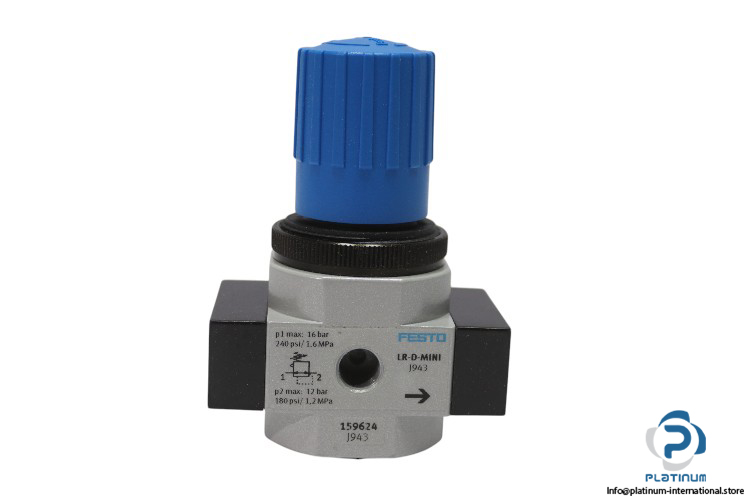

The Festo LR-1/8-D-MINI pressure regulator is a compact and reliable solution for regulating compressed air systems. Designed for miniaturized applications, it provides precise control of air pressure with a wide operating range and high flow rate. This regulator is ideal for applications that require stability in varying operational conditions.
Manufacturer: Festo
Type: Pressure Regulator

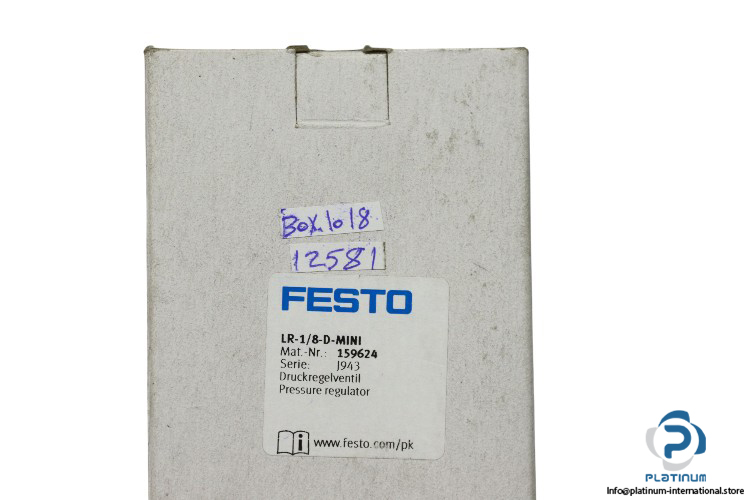

Model: LR-1/8-D-MINI
Part No.: 159624
Series: D

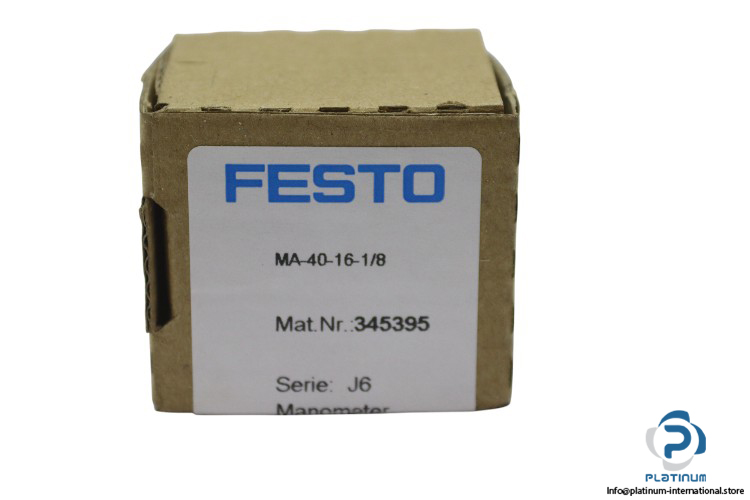

Festo 345395 “ Pressure Gauge

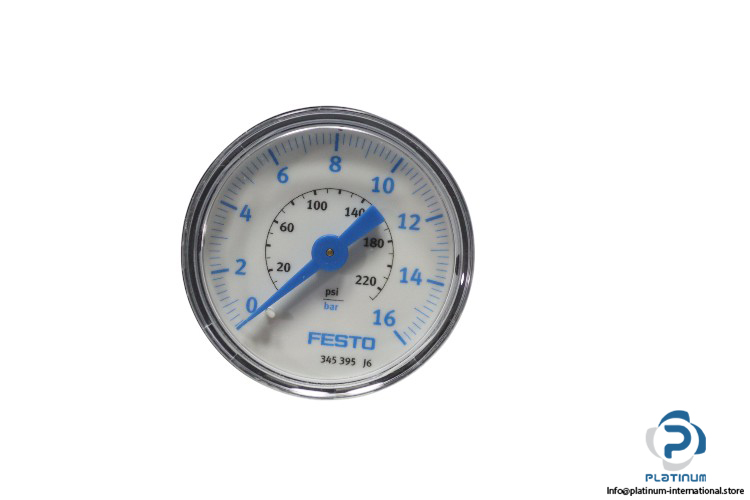

The FESTO 345395 pressure gauge is designed to work seamlessly with the LR-1/8-D-MINI pressure regulator, providing accurate pressure readings for a precise air system operation.
| Size | MINI |
| Fluid | Compressed air |
| Operating Pressure | 1 to 16 bar |
| Actuator Lock | Rotary knob with detent |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-Cast Zinc |
| Material Seals | NBR |
| Ambient Temperature | -10 to 60 °C |
| Attachment | FESTO 345395 Pressure Gauge |
| Part No. | 345395 |
| Series | J6 |
| Size | MINI |
