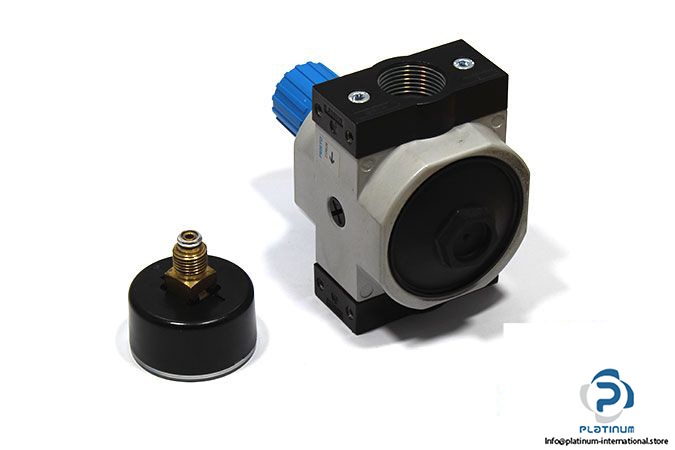

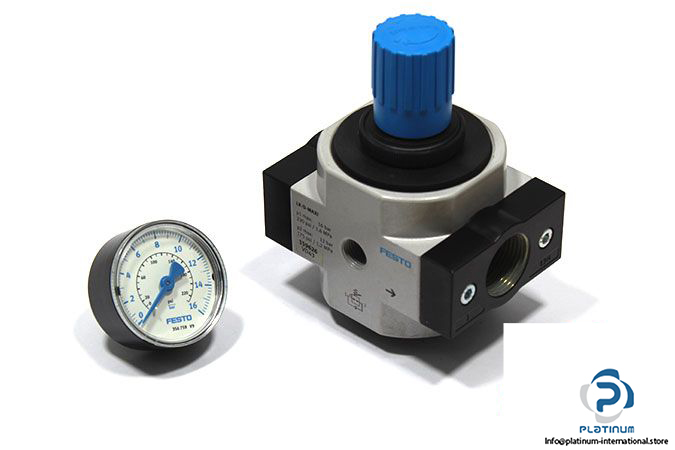

Festo 159626 Pressure Regulator

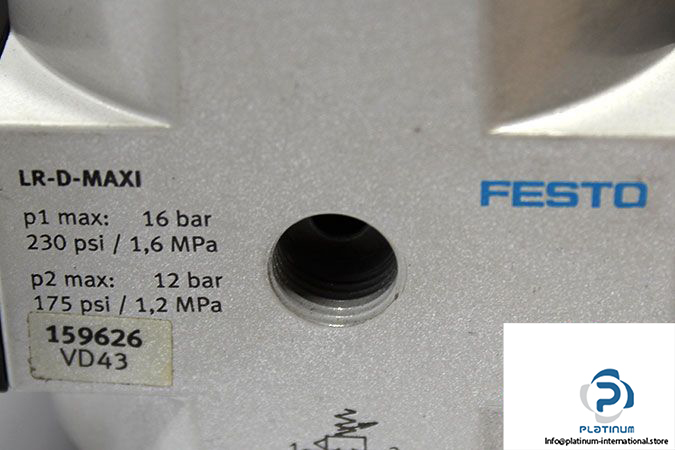

Festo LR-D-MAXI / LR-3/4-D-MAXI Pressure Regulator

The Festo LR-D-MAXI / LR-3/4-D-MAXI Pressure Regulator is designed to ensure precise control of air pressure in industrial systems. With a wide pressure regulation range from 0.5 to 12 bar and a high flow rate of 11,000 l/min, it offers excellent performance in various applications. The robust pilot-controlled piston control valve design allows for consistent regulation in dynamic environments.

Manufacturer: Festo

Type: Pressure Regulator

Model: LR-D-MAXI / LR-3/4-D-MAXI

Part No.: 159626

Technical Data:

• Operating Pressure: 0 / 16 bar
• Pressure Regulation Range: 0.5 / 12 bar
• Max. Pressure Hysteresis: 0.4 bar
• Fluid: Air
• Flow Rate: 11000 l/min
• Design: Pilot-Controlled Piston Control Valve
• Type of Mounting: Front Panel Mounting, Line Installation, with Accessories
• Port Size: G3/4
• Ambient Temperature: -10 / 60 °C
• Material: Die-Cast Zinc

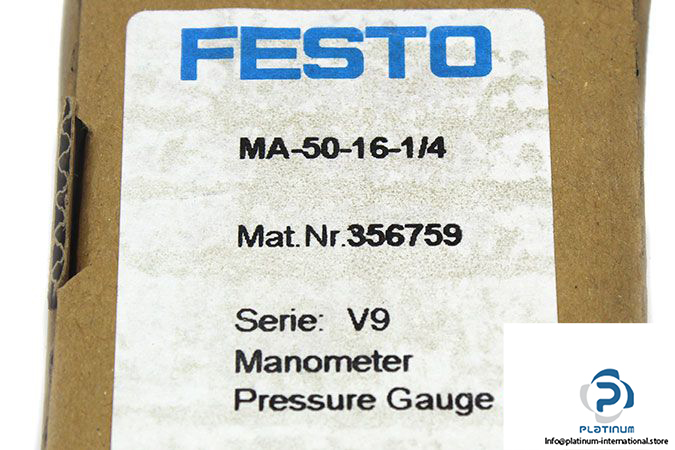

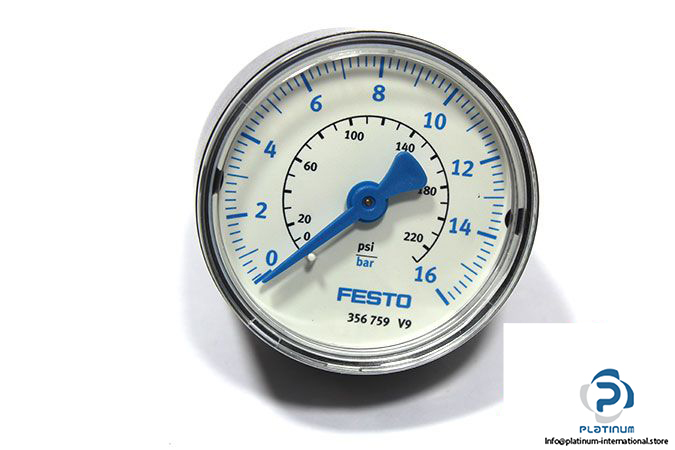

Attachment: FESTO 356759 Pressure Gauge

Manufacturer: Festo

Type: Pressure Gauge

Model: MA-50-16-1/4

Part No.: 356759

Technical Data:

• Operating Pressure: 0 / 16 bar
• Display Range: 0 / 16 bar
• Pressure Gauge Nominal Size: 50
• Design: Bourdon Tube Pressure Gauge
• Pneumatic Connection: G1/4
• Type of Mounting: Line Installation
• Operating Medium: Inert Gas, Neutral Liquids
• Ambient Temperature: -20 / 60 °C
• Materials Connection: Brass
• Housing Material: ABS
• Inspection Window Material: PC
• Protection Class: IP43
