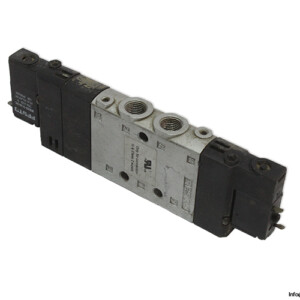

Festo 170216 Double Solenoid Valve
중고
재고 있음1 단위즉시 배송 가능
60,00$
DOUBLE SOLENOID VALVE
FESTO CPE14-M1H-5/3G-QS-8 with MSZD-3-24 DC coil is a 5/3-way piston slide valve engineered for efficient pneumatic flow control at pressures up to 10 bar.5/3coilControlCPE14-M1H-5/3G-QS-8dcDoubleFestoG1/8IndustrialMSZD-3-24PistonPneumaticSlidesolenoidValveWay
방대한 재고
글로벌 배송
전문 지원
품질 보장

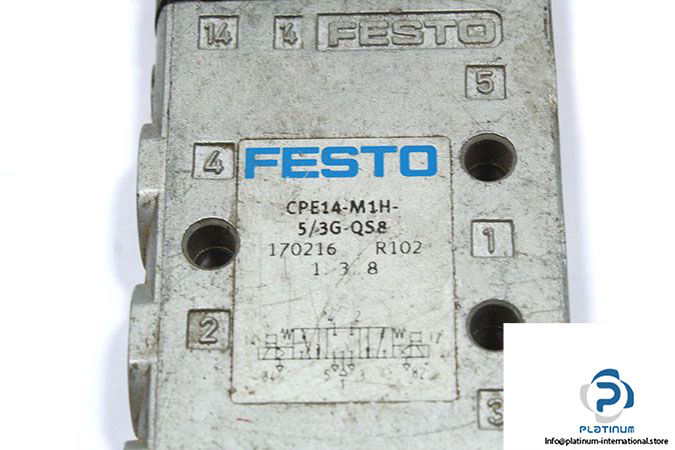

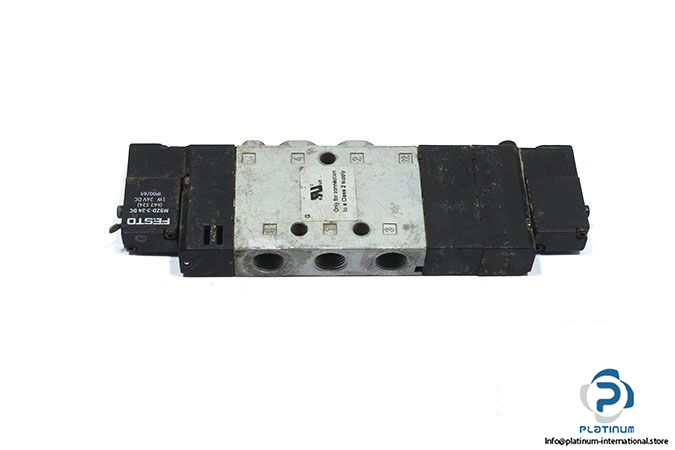

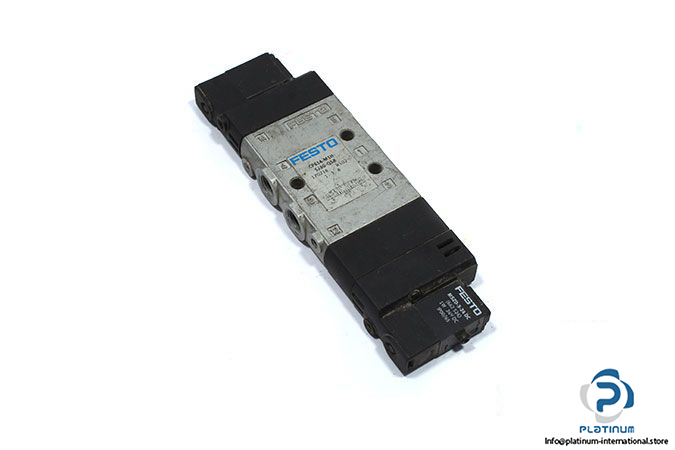

FESTO CPE14-M1H-5/3G-QS-8 DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPE14-M1H-5/3G-QS-8 is a high-performance double solenoid valve designed for reliable pneumatic operations. With a piston slide design and a 5/3-way function, it ensures efficient control of air flow in industrial environments. It comes equipped with the FESTO MSZD-3-24 DC solenoid coil for precise electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1H-5/3G-QS-8
Part No.: 170216
Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/3 way |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 680 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

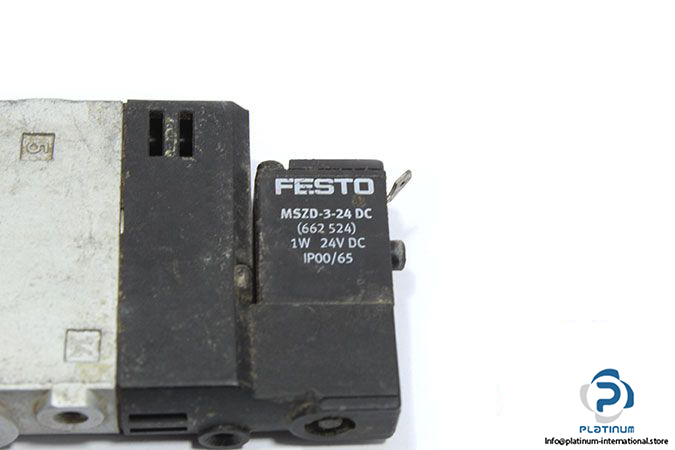

| Solenoid Coil Attachment | FESTO MSZD-3-24 DC |
| Part No. | 662524 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1 W |
| Protection Class | IP00 / IP65 |
