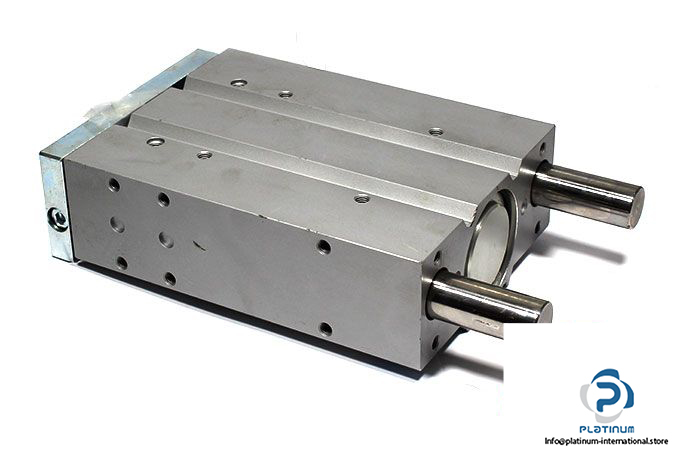

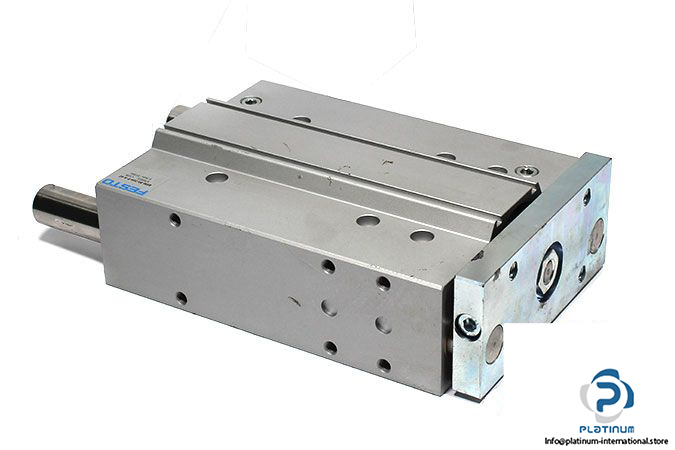

Manufacturer: Festo
Type: Guided Actuator

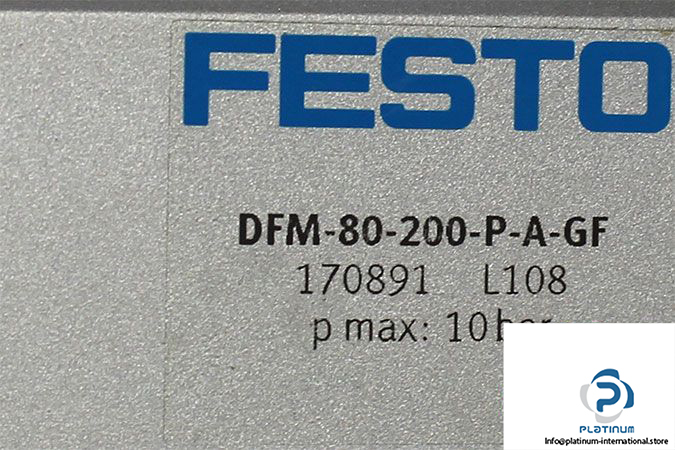

Model: DFM-80-200-P-A-GF
Part No: 170891
Operating Pressure: 0.5…10 bar
Piston Diameter: 80 mm
Stroke: 200 mm
Design: Guide
Guide: Sliding guide
Mode of Operation: Double-Acting
Position Sensing: For Proximity Sensor
Ambient Temperature: -20…80 °C
Pneumatic Connections: G 3/8”
Material: Aluminum
| 가격 | 요청 시 |
| 재고 | 2 재고 있음 |
| 카테고리 | Guide Actuators |
| 상태 | 중고 |
| SKU | 982785 |
Manufacturer: Festo
Type: Guided Actuator
Model: DFM-80-200-P-A-GF
Part No: 170891
| Weight | 14,3 kg |
| Condition | Used |
| Material | Aluminum |
| Type of Product | Guided Actuator |
| Shelf No. | 240403 |
| Mode of Operation | single side |
| Position Sensing | For proximity sensor |
| Stroke Size [mm] | 200 |
| Connection | G3/8 |
| Bore x Stroke | 80x200 |
| Bore Size [mm] | 80 |
