Festo 184496 Double Solenoid Valve
중고
재고 있음3 단위즉시 배송 가능
40,00$
DOUBLE SOLENOID VALVE
FESTO JMEBDH-5/2-D-1-ZSR-C double solenoid valve with 373 855 coil ensures high-speed operation, reliable air control, and durable build for industrial use.1200AirCompressedControldcDoubleFestoIndustrialJMEBDH-5/2-D-1-ZSR-Cl/minMSEB-3-24PneumaticsolenoidSub-BaseValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

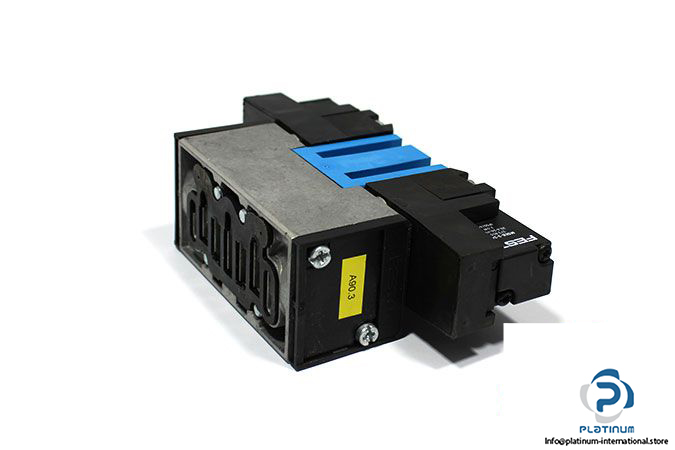

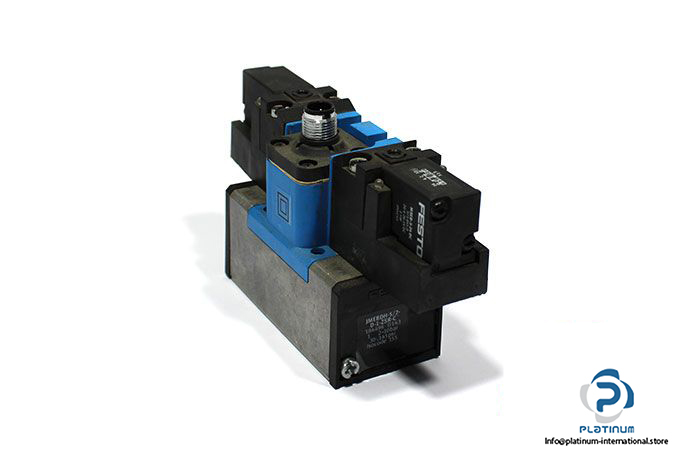

FESTO JMEBDH-5/2-D-1-ZSR-C DOUBLE SOLENOID VALVE WITH COIL
The FESTO JMEBDH-5/2-D-1-ZSR-C is a high-performance double solenoid valve engineered for compressed air systems. It features fast electrical actuation, robust die-cast aluminum construction, and a reliable sub-base connection. This unit includes a FESTO MSEB-3-24 DC solenoid coil for precise and energy-efficient control.
Manufacturer: FESTO
Type: Double Solenoid Valve

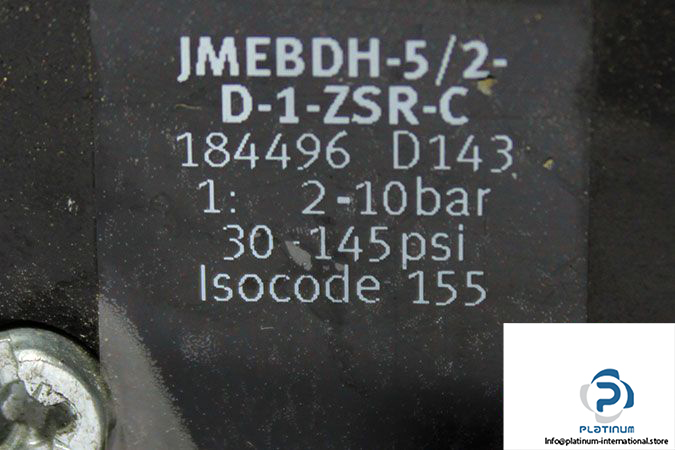

Model: JMEBDH-5/2-D-1-ZSR-C
Part No.: 184496
Solenoid Coil Technical Information
| Fluid | Compressed Air |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 10 bar |
| Nominal Flow Rate | 1200 l/min |
| Pneumatic Connection | Sub-Base |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -5 / 50 °C |

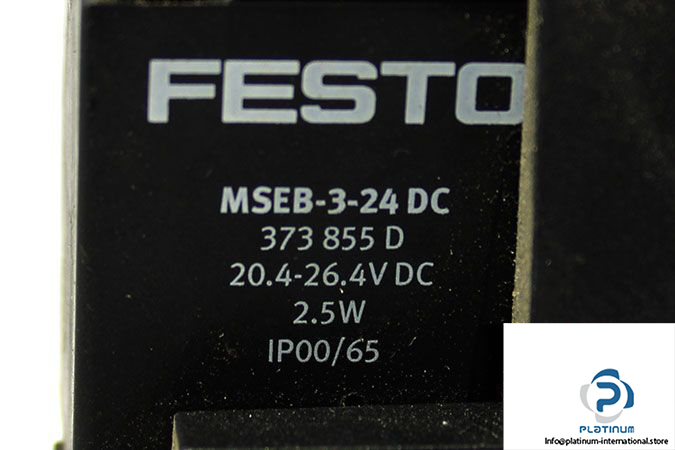

| Solenoid Coil Attachment | FESTO 373 855 |
| Part No. | 373855 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00/IP65 |
