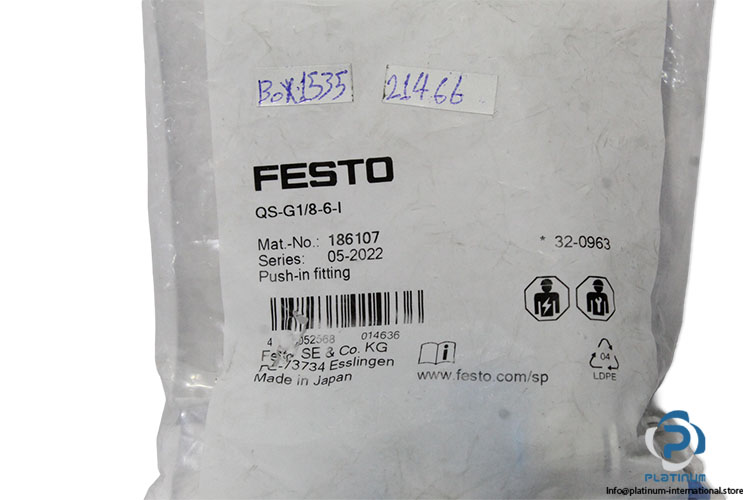

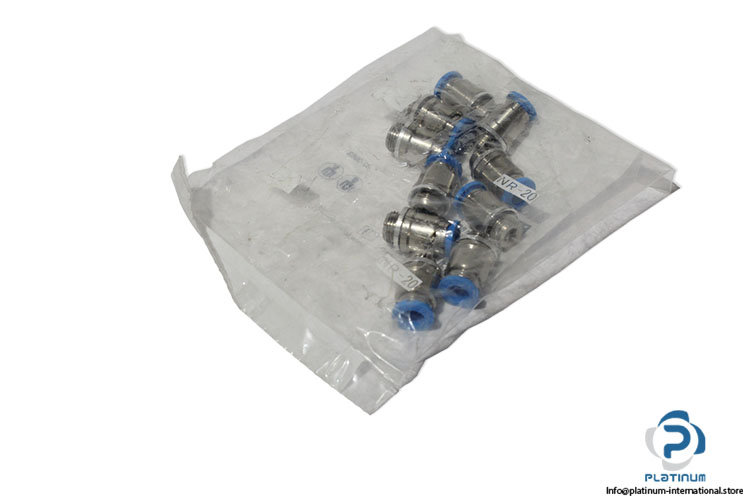

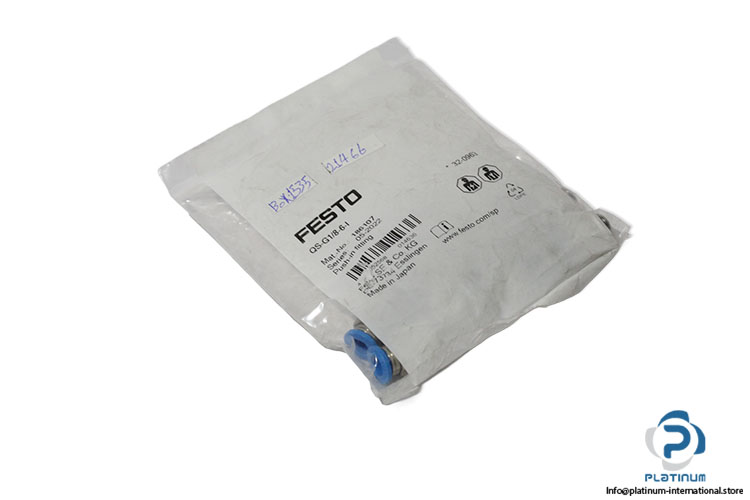

Festo 186107 Push-IN Fitting
신제품
재고 있음4 단위즉시 배송 가능
Push-In Fitting Industrial FESTO push-in fitting with straight push-pull design for secure pneumatic tubing connections in compressed air and water systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Part No. | 186107 |
| Series | QS |
| Fluid | Compressed Air / Water (Liquid, Ice-Free) |
| Design | Straight Push-Pull Principle |
| Nominal Size | 4.2 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Water Pressure Max. | 0.6 MPa |
| Tubing Insertion Depth | 17 mm |
| Pneumatic Connection, Port 1 | Male Thread G1/8 |
| Pneumatic Connection, Port 2 | For Tubing Outer Diameter Of 6 mm Material: Brass, Nickel-Plated |
| Ambient Temperature | -10 ... 80 °C |
| Items Per Set | 10 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102207 |
| Weight | 0,08 |
