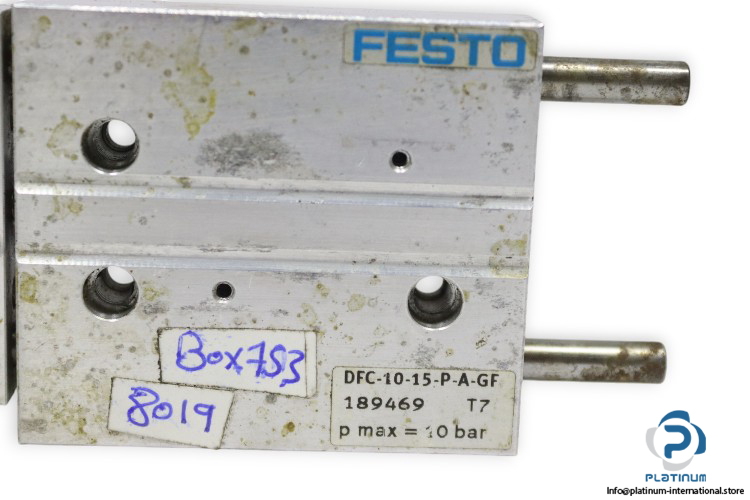

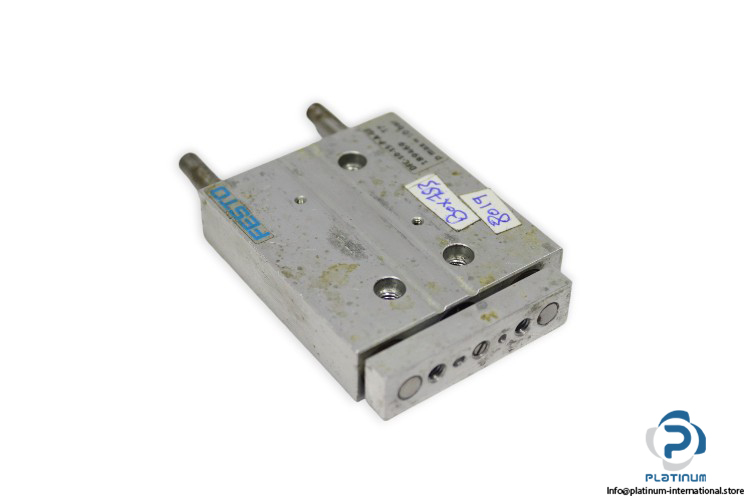

Festo 189469 Guided Actuator

Manufacturer: FESTO
Type: mini guided actuator
Model: DFC-10-15-P-A-GF
Part No.: 189469

Stroke Length: 15 mm
Piston Diameter: 10 mm
Distance of centre of gravity of payload to yoke plate xs: 15 mm
Cushioning: Elastic cushioning rings/pads at both ends
Guide: Sliding guide
Structural design: Guide
Position sensing: For proximity sensor
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Operating medium: Compressed air
Pneumatic Connection: 5 mm
Housing material: Wrought aluminum alloy
Theoretical force at 6 bar, retracting: 35 N
Theoretical force at 6 bar, advancing: 47 N
Temperature: -20 … 80 °C
