Festo DSNU-10-60-P-A ISO Cylinder “ 10 mm piston diameter with 60 mm stroke, elastic cushioning at both ends, and stainless steel body. Ideal for compact pneumatic automation systems.
10560ActingActuatorAutomationCompactCushioningCylinderDoubleDSNU-10-60-P-AElasticFestoIndustrialISOmmPistonPneumaticPortstainlessSteelStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

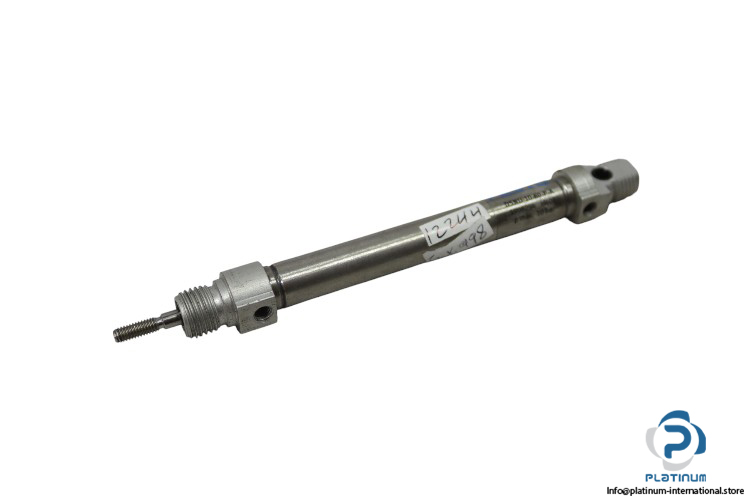

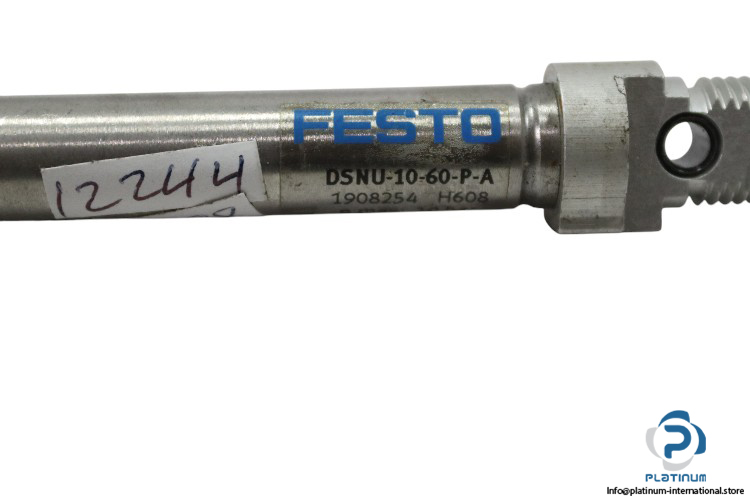

Festo DSNU-10-60-P-A ISO Cylinder “ Part No. 1908254
The Festo DSNU-10-60-P-A is a compact ISO-standard pneumatic cylinder designed for precision-driven automation systems. With a 10 mm piston diameter and 60 mm stroke, it ensures reliable double-acting performance with elastic cushioning at both ends and high-grade construction for demanding applications.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-10-60-P-A
Part No.: 1908254
| Stroke | 60 mm |
| Piston Diameter | 10 mm |
| Cushioning | Elastic Cushioning Rings/Pads at Both Ends |
| Port Size | 5 mm |
| Piston-Rod End | Male Thread |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Pressure | 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Cover Material | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
