Festo DSNU-10-50-P-A ISO Cylinder “ Compact pneumatic cylinder with 10 mm piston and 50 mm stroke. Double acting, up to 10 bar, stainless steel rod, aluminum body.
1050ActingActuatorAirAutomationCompressedCylinderDoubleDSNU-10-50-P-AFestoHighIndustrialISOmmPistonPneumaticPneumaticsPressureRODstainlessSteelStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

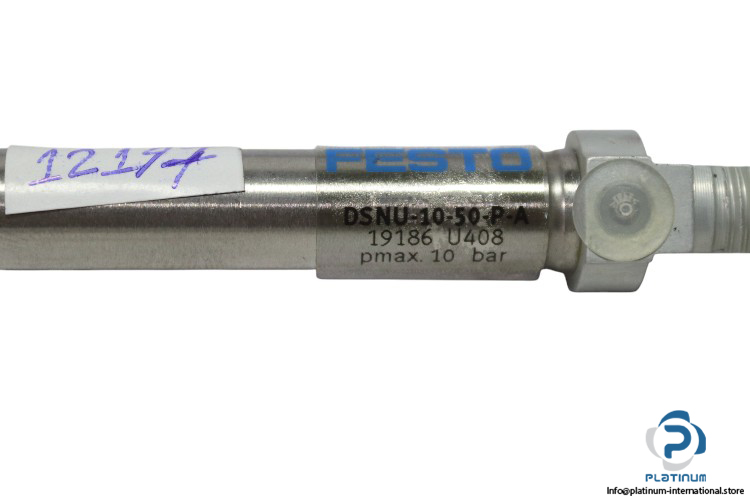

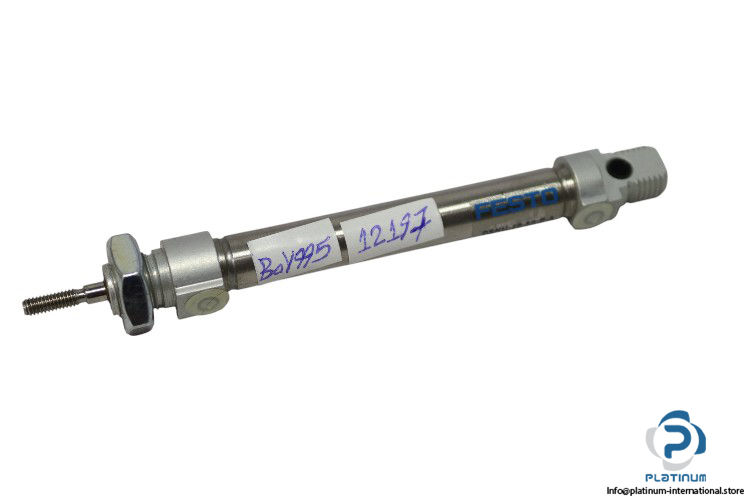

Festo DSNU-10-50-P-A ISO Cylinder
The Festo DSNU-10-50-P-A is a precision-engineered ISO pneumatic cylinder designed for high performance in automation and industrial applications. With its robust materials, compact size, and reliable double-acting operation, it delivers consistent actuation for demanding systems.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-10-50-P-A
Part No.: 19186
| Piston Diameter | 10 mm |
| Stroke | 50 mm |
| Pneumatic Connection | 5 mm |
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Maximum Pressure | 10 bar |
| Piston-Rod End | Male Thread |
| Shape | Circular |
| Rod Direction | One Side |
| Ambient Temperature | -20 to 80 °C |
| Material - Cover | Wrought Aluminum Alloy |
| Material - Seals | NBR |
| Material - Piston Rod | High-Alloy Stainless Steel |
