Festo 192301 Pressure Regulator
재고 있음2 단위즉시 배송 가능
Festo 192301 Pressure Regulator
압력 조절기 FESTO LR-1/4-D-7-I-MINI는 0.5 ... 7 bar 조절 범위와 1600 l/min 정격 유량으로 정밀한 압력 제어를 보장합니다. 압축 공기 및 비활성 가스를 위해 설계되었으며, 편리한 조정을 위한 돌기 있는 회전 노브가 특징입니다. 산업용 공압 응용에 적합합니다.
1/41/87AirbarCompressedControlFestoGhigh-precisionIndustrialLR-1/4-D-7-I-MINIPneumaticPressureregulator
방대한 재고
글로벌 배송
전문 지원
품질 보장

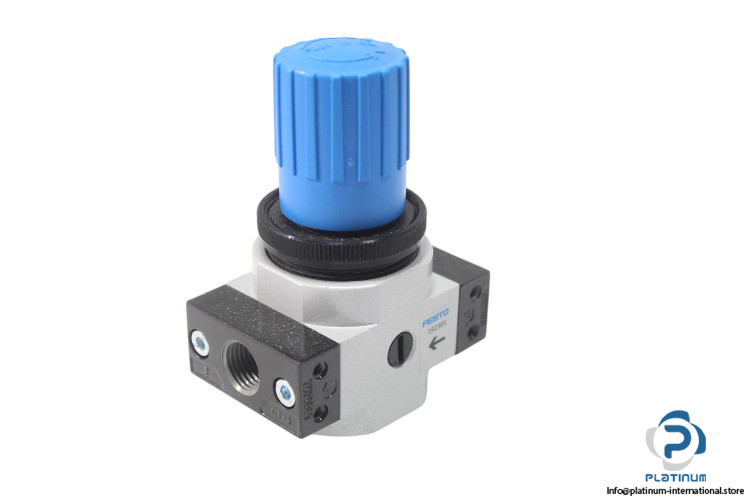

FESTO LR-1/4-D-7-I-MINI Pressure Regulator
The FESTO LR-1/4-D-7-I-MINI Pressure Regulator is designed for precise pressure control in pneumatic systems, ensuring stable operation and optimal air regulation. Engineered for high efficiency, this compact regulator is ideal for industrial applications using compressed air and inert gases.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-1/4-D-7-I-MINI
Part No.: 192301
| Series | D |
| Size | MINI |
| Fluid | Compressed Air, Inert Gases |
| Pressure Regulation Range | 0.5 ... 7 bar |
| Operating Pressure Range | 1 ... 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| P2 Max. | 7 bar / 105 PSI / 0.7 MPa |
| Nominal Flow Rate | 1600 l/min |
| Actuator Lock | Rotary Knob with Detent |
| Port Size | G 1/4 & G 1/8 |
| Medium/Ambient Temperature | -10 … 60 °C |
| 사양 | 가치 |
|---|---|
| Weight | 0,44 kg |
| Condition | New |
| Type of Product | Pressure Regulator |
| Shelf No. | 250224 |
