Festo 19270 ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
Festo ESNU-25-25-P-A is a single-acting pneumatic cylinder with a 25 mm piston and 25 mm stroke. It features elastic cushioning, G1/8 connection, and stainless steel construction for reliable performance in compact applications.25ActingActuatorAutomationCompactCushionedCylinderElasticESNU-25-25-P-AFestoG1/8IndustrialISOmmPistonPneumaticSinglestainlessSteel
방대한 재고
글로벌 배송
전문 지원
품질 보장

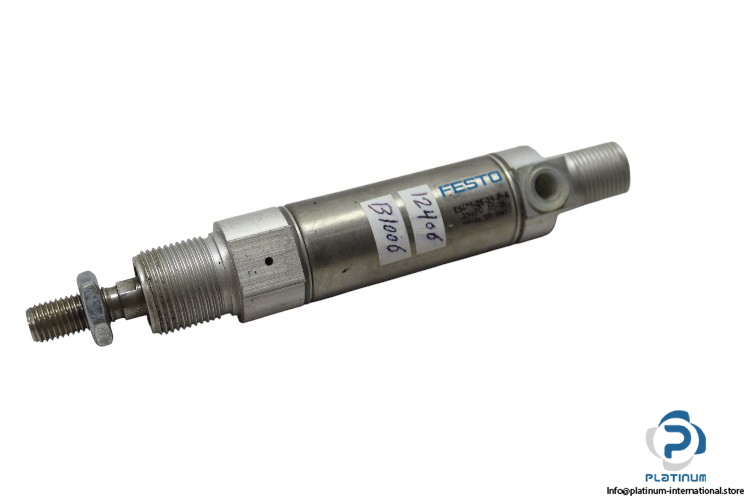

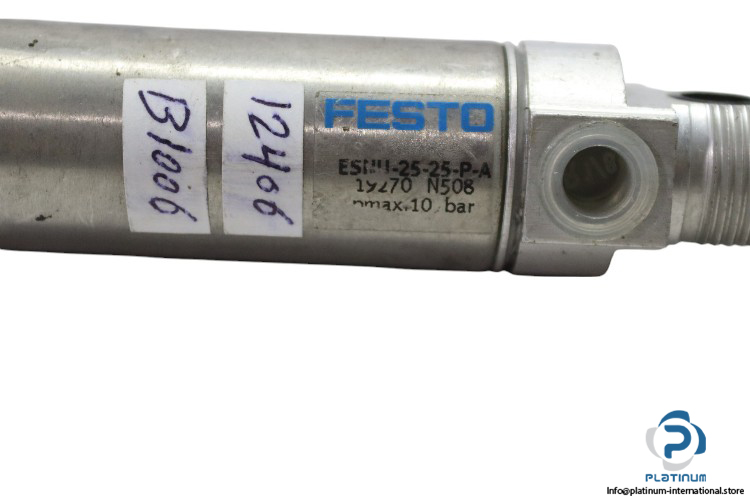

Festo ESNU-25-25-P-A ISO Cylinder “ Part No. 19270
The Festo ESNU-25-25-P-A is a compact ISO-standard pneumatic cylinder engineered for efficient single-acting performance in industrial applications. With a 25 mm piston diameter and 25 mm stroke, it features elastic cushioning for smooth end-of-stroke operation and is built using high-grade stainless steel and aluminum materials.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESNU-25-25-P-A
Part No.: 19270
| Media | Compressed Air |
| Piston Diameter | 25 mm |
| Stroke | 25 mm |
| Cushioning | Elastic Cushioning Rings/Plates at Both Ends |
| Pneumatic Connection | G1/8 |
| Operation Mode | Single Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Operating Pressure | Max. 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
