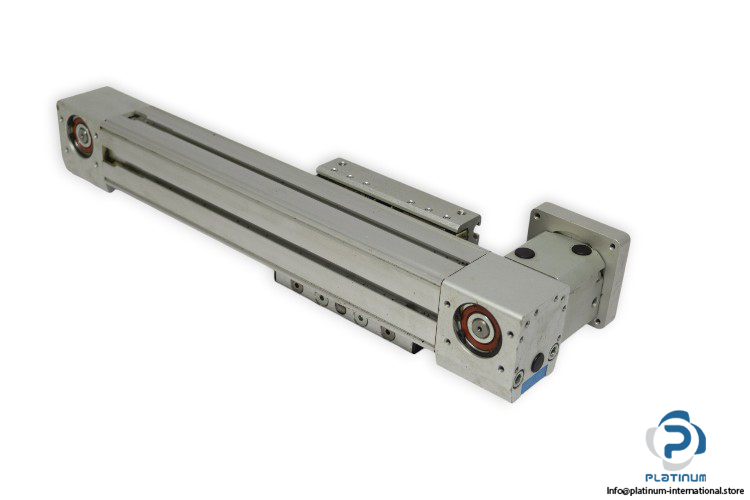

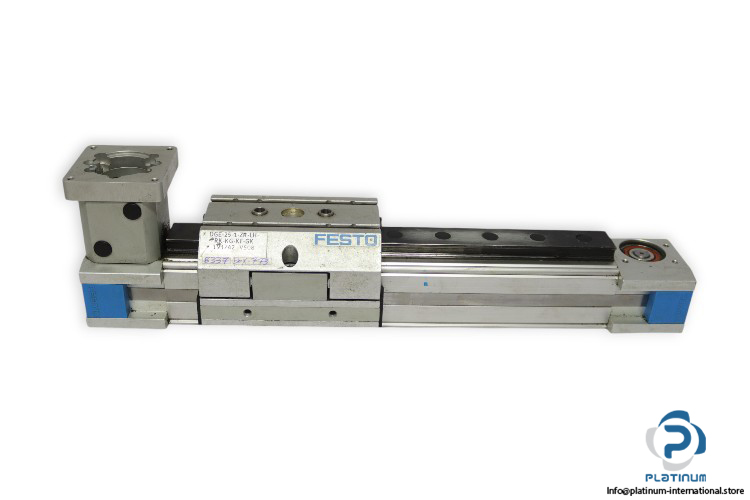

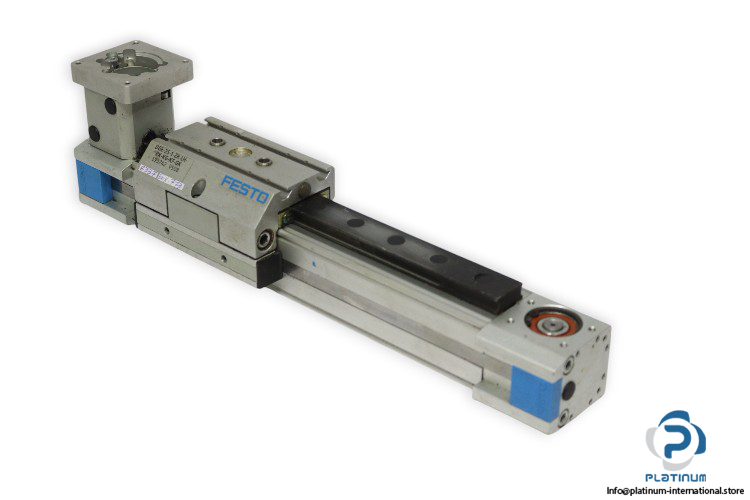

Festo 193742 Belt Driven Linear Actuator

Name: FESTO 193742 BELT DRIVEN LINEAR ACTUATOR
SKU: 1053104
Availability: LimitedAvailability

festo-193742-belt-driven-linear-actuator-(used)

festo-193742-belt-driven-linear-actuator-(used)-1

festo-193742-belt-driven-linear-actuator-(used)-2

festo-193742-belt-driven-linear-actuator-(used)-3

중고

재고 있음1 단위즉시 배송 가능

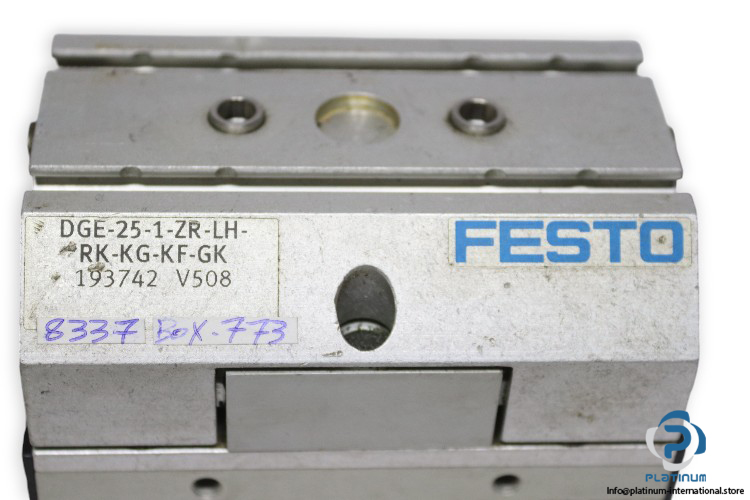

Manufacturer: FESTO Model: DGE-25-1-ZR-LH-RK-KG-KF-GK

Type:

Belt driven linear actuator

Part No.:

193 742

SKU

1053104

카테고리

Pneumatic Actuators

상태

중고

Actuator Belt Driven Festo Linear

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: FESTO
Type: Belt driven linear actuator
Model: DGE-25-1-ZR-LH-RK-KG-KF-GK
Part No.: 193 742

Effective diameter of drive pinion: 20.05 mm
Working stroke: 1 … 3,000 mm
Size: 25
Stroke reserve: 63 mm
Toothed-belt pitch: 3 mm
Max. acceleration: 50 m/s2
Max. speed: 5 m/s
Repetition accuracy: ±0,1 mm
Ambient temperature: -10 … 40 °C
Max. drive torque: 2.6 Nm
Max. feed force Fx: 260 N
No-load driving torque: 0.5 Nm
Material of end caps: Wrought Aluminium alloy Anodised
Material of moment compensator: Wrought Aluminium alloy Anodised
