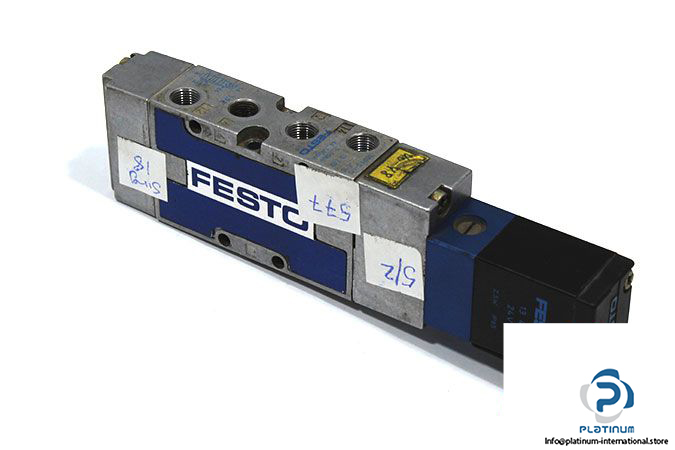

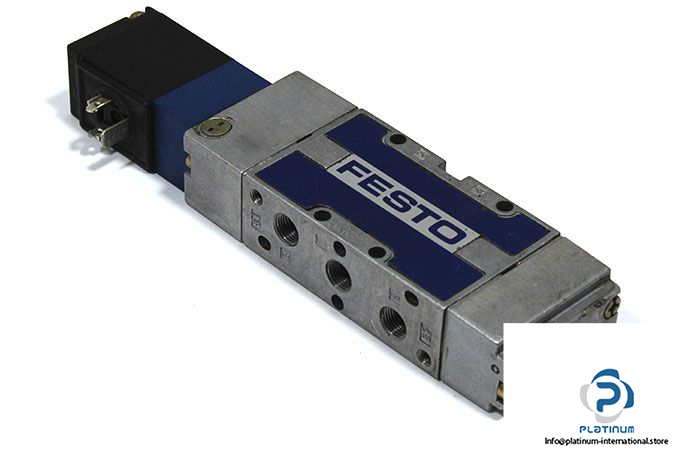

Festo 19749 Single Solenoid Valve
중고
재고 있음4 단위즉시 배송 가능
55,00$
SINGLE SOLENOID VALVE
FESTO MVH-5-1/8-L-B valve with 13464 coil, offering precise 5/2-way monostable pneumatic control with 1000 l/min flow and electric actuation.1346424v5/2AircoilControldcFestoflowG1/8IndustrialMonostableMVH-5-1/8-L-BPneumaticSinglesolenoidValve
방대한 재고
글로벌 배송
전문 지원
품질 보장
FESTO MVH-5-1/8-L-B SINGLE SOLENOID VALVE WITH 13464 COIL
The FESTO MVH-5-1/8-L-B is a high-performance single solenoid valve engineered for precise control of air flow in industrial pneumatic systems. Featuring a rugged die-cast aluminium body, 5/2-way monostable function, and reliable electric actuation, this valve is ideal for robust and space-efficient automation setups.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MVH-5-1/8-L-B
Part No.: 19749
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast Aluminium |
| Ambient Temperature | -5 / 50 °C |

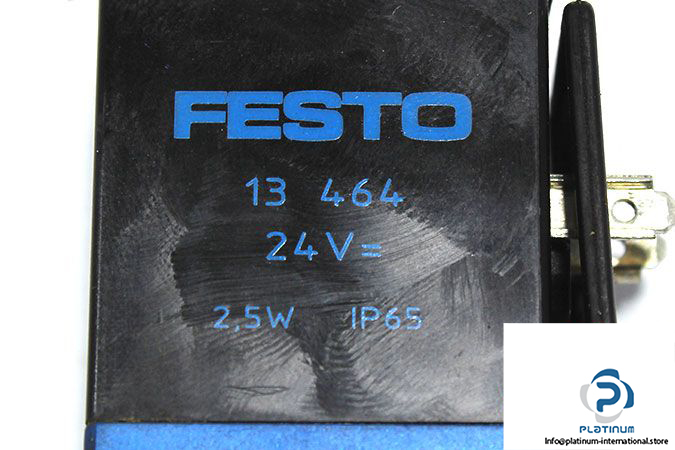

| Attachment | FESTO 13464 SOLENOID COIL |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
