Festo 32475 ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
FESTO ISO Cylinder DNU-40-400-PPV-A is designed for efficient pneumatic applications, featuring a 40 mm bore diameter, 400 mm stroke, and maximum pressure of 12 bar. It includes a G 1/4 pneumatic connection and a square shape for versatile industrial use.1/440400ActingAirboreCompressedconnectionCylinderdiameterDNU-40-400-PPV-ADoubleFestoGHighIndustrialISOmmPneumaticPressureSquareStrokeSystems
방대한 재고
글로벌 배송
전문 지원
품질 보장

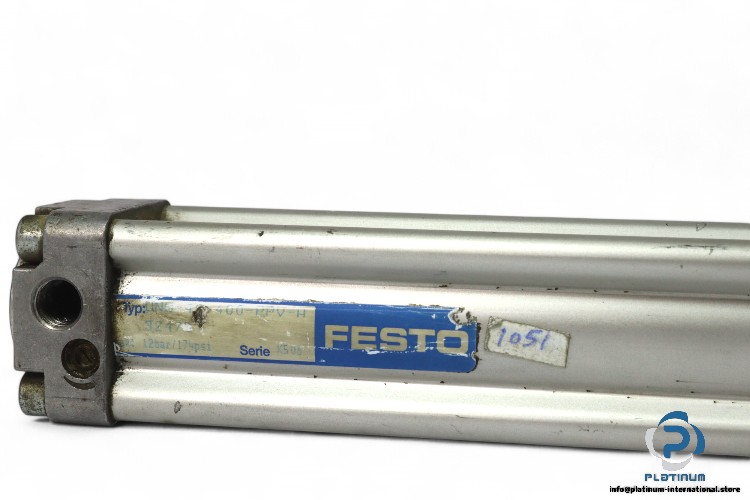

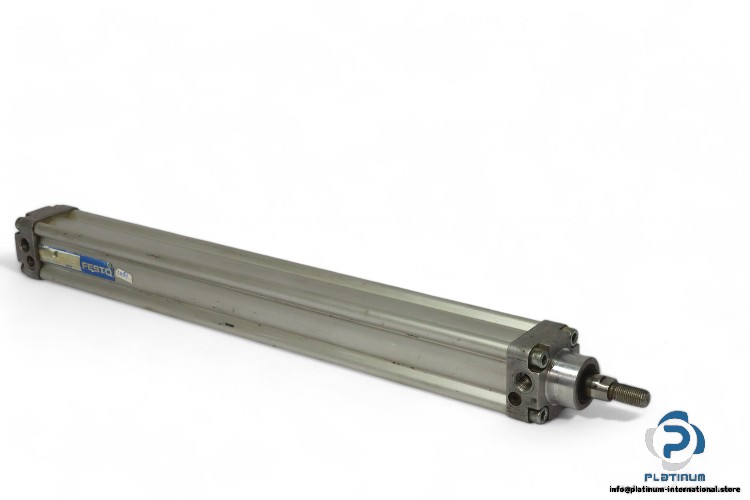

FESTO ISO Cylinder DNU-40-400-PPV-A
The FESTO ISO Cylinder DNU-40-400-PPV-A is designed for efficient pneumatic operations. With a bore diameter of 40 mm and a stroke of 400 mm, this cylinder is ideal for a wide range of industrial applications requiring precise control of motion. It is made to withstand a maximum pressure of 12 bar and operates using compressed air.
Manufacturer: FESTO
Model: DNU40400PPVA
Part No.: 32475
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 40 mm
- Stroke: 400 mm
- Bore x Stroke: 40 x 400 mm
- Rod Diameter: 16 mm
- Frame Dimensions: 54 x 525 mm
- Pneumatic Connection: G 1/4
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
