Festo 32900 Filter Regulator
중고
재고 있음1 단위즉시 배송 가능
Filter Regulator
Festo LFR-F-1/4-S-B filter regulator with G1/4 ports, 0.5“14 bar input pressure range, 2200 l/min flow rate, and pull-up-and-turn adjustment for pneumatic systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장

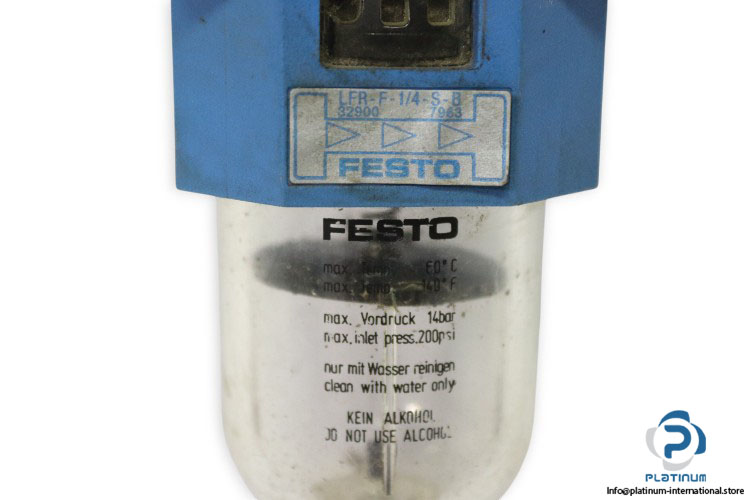

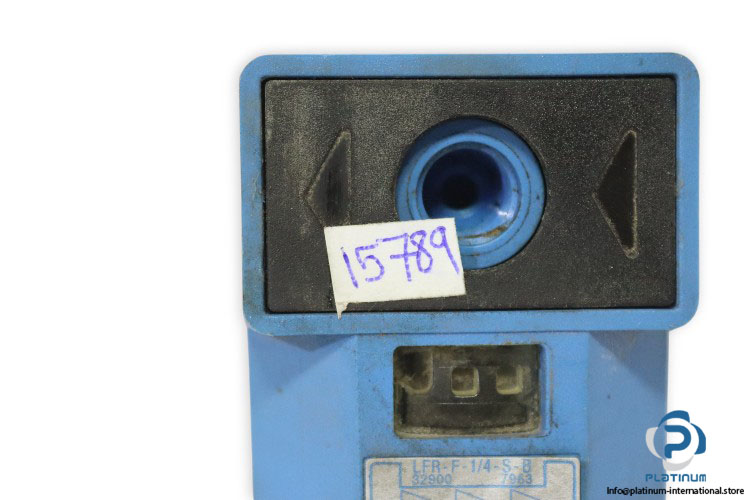

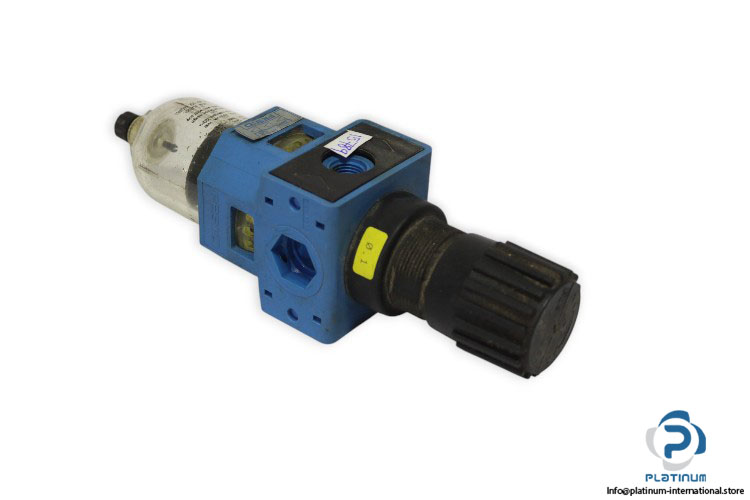

Festo LFR-F-1/4-S-B Filter Regulator
The Festo LFR-F-1/4-S-B filter regulator is designed to provide precise pressure regulation and effective air filtration in compressed air systems, ensuring stable and reliable pneumatic operation.
Manufacturer: Festo
Type: Filter Regulator
Model: LFR-F-1/4-S-B
Part No.: 32900
Ref. No.: 7963
Recommended for pneumatic control systems, automation units, and compressed air distribution networks requiring stable pressure and clean air supply.
| Input Pressure 1 Min. | 0.5 bar |
| Input Pressure 1 Max. | 14 bar |
| Output Pressure 2 Max. | 12 bar |
| Output Pressure 3 Max. | 12 bar |
| Thread for Port 1 | G1/4 |
| Thread for Port 2 | G1/4 |
| Thread for Port 3 | G1/4 |
| Type of Mounting | Hole |
| Standard Nominal Flow Rate 1-2 | 2200 l/min |
| Operating Medium Input | Compressed Air |
| Actuator Locking | Pull-up-and-turn Adjustment |
| Pressure Hysteresis (Pressure Regulator) | 0.3 bar |
| Material of Housing | PA-polymer |
| Material of Bowl | PA-polymer |
| Ambient Temperature | -10 to 60°C |
