OR GATE
FESTO OS-1/2 OR gate for compressed air logic systems, with G1/2 threaded connection, 5000 l/m flow, and wide temperature tolerance.
신제품
재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

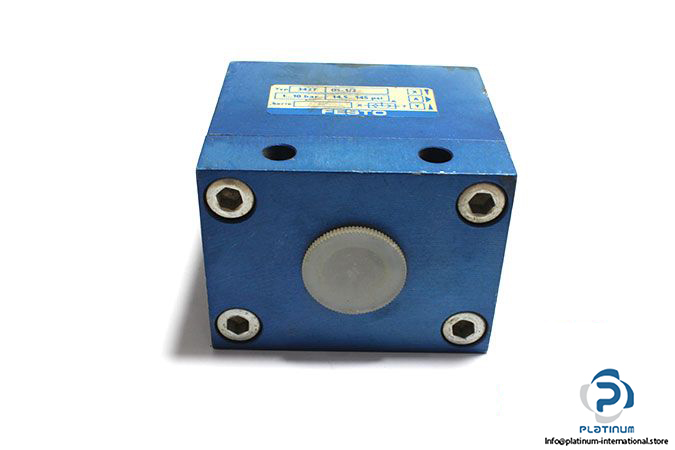

FESTO OS-1/2 OR GATE
The FESTO OS12 is a high-performance OR gate designed for pneumatic systems, enabling reliable logic control with compressed air. Built to operate under varied pressure and temperature ranges, it offers robust construction and efficient air handling with threaded G1/2 connections.
Manufacturer: FESTO
Type: OR Gate
Model: OS-1/2
Part No.: 3427
| Fluid | Compressed Air |
| Working Pressure | 1 / 10 bar |
| Standard Flow Rate | 5000 l/m |
| Pneumatic Connection | G1/2, Threaded |
| Type of Mounting | With through valve |
| Nominal Width | 12 mm |
| Fluid Temperature Range | “10 / 60°C |
