Guide Unit with Multi-Position Cylinder
FESTO FENG-63-50-KF guide unit paired with ADNM-63-A-P-A-10Z1-35Z2-15K8 multi-position cylinder. Offers precise linear guidance and flexible positioning for industrial automation.ADNM-63-A-P-A-10Z1-35Z2-15K8AutomationBallbearingCNCCylinderFENG-63-50-KFFestoGuideHighIndustrialLinearLoadMultiPneumaticPositionRecirculatingUnit
방대한 재고
글로벌 배송
전문 지원
품질 보장

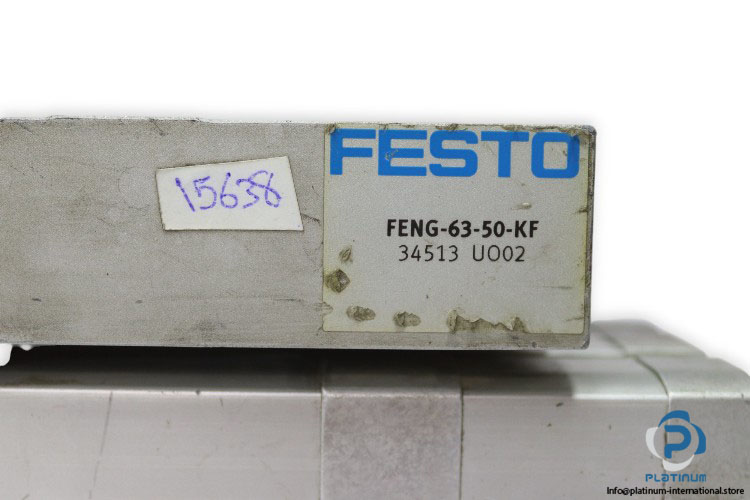

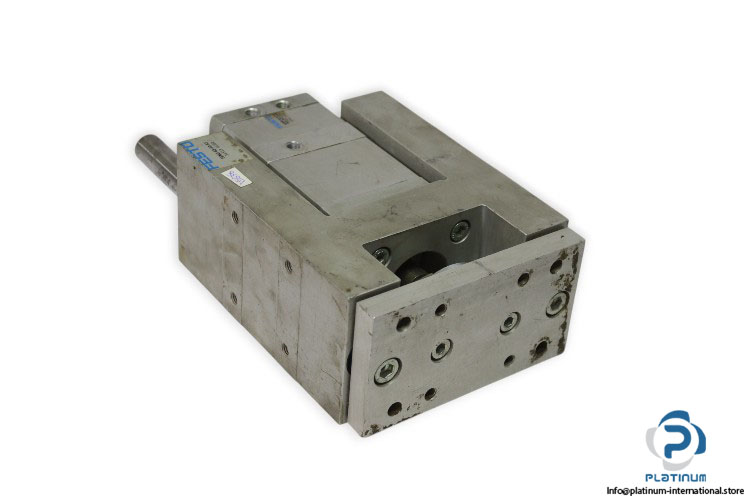

Festo FENG-63-50-KF Guide Unit with ADNM-63-A-P-A-10Z1-35Z2-15K8 Multi-Position Cylinder
This FESTO assembly combines the precision of the FENG-63-50-KF Guide Unit with the versatility of the ADNM-63-A-P-A-10Z1-35Z2-15K8 Multi-Position Cylinder. Designed for demanding automation tasks, it ensures accurate linear guidance with high load capacity and flexible positioning in industrial applications.
Manufacturer: Festo
Type: Guide Unit
Model: FENG-63-50-KF
Part No.: 34513
Ref. code: UO02
Technical Information “ Guide Unit
- Size: 63
- Stroke: 50 mm
- Mounting Position: Optional
- Guide: Recirculating Ball Bearing Guide
- Structural Design: Guidance
- Ambient Temperature: -20 °C / 80 °C
- Max. Force Fy: 1260 N
- Max. Force Fy (Static): 1600 N
- Max. Force Fz: 1260 N
- Max. Force Fz (Static): 1600 N

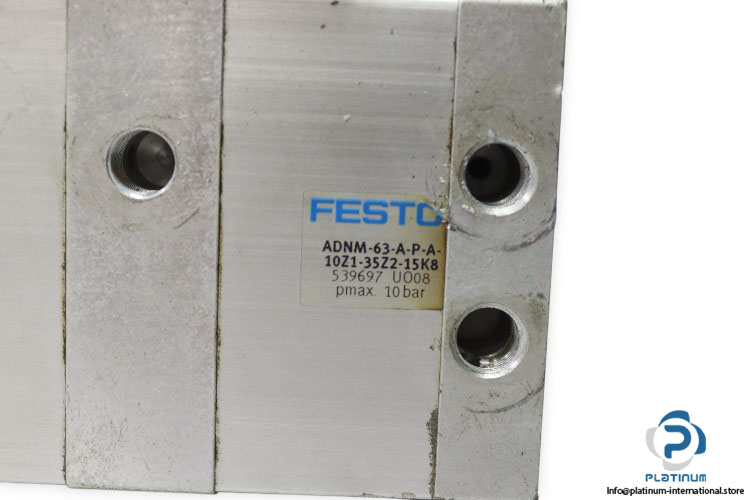

Attachment: FESTO 539697 Multi-Position Cylinder
Manufacturer: Festo
Type: Multi-Position Cylinder
Model: ADNM-63-A-P-A-10Z1-35Z2-15K8
Part No.: 539697
Ref. code: UO08
Technical Information “ Multi-Position Cylinder
- Piston Diameter: 63 mm
- Possible Stroke for Last Cylinder Position: 10 mm
- Cushioning: Elastic Cushioning Rings/Plates at Both Ends
- Max. Number of Intermediate Positions: 5
- Operating Pressure: Max. 10 bar
- Operating Medium: Dried Compressed Air
- Ambient Temperature: -20 to 120 °C
- Connection: G1/8
