Festo 3629 Roller Lever Valve
중고
요청 시 제공 가능
22,00$
ROLLER LEVER VALVE
FESTO R-3-M5 roller lever valve with 3/2-way monostable function, mechanical actuation, and M5 pneumatic connection for air systems.3/2-wayAirconnectiondie-castFestoIndustrialLeverM5MechanicalPneumaticPoppetR-3-M5RollerSeatValveZinc
신제품
재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

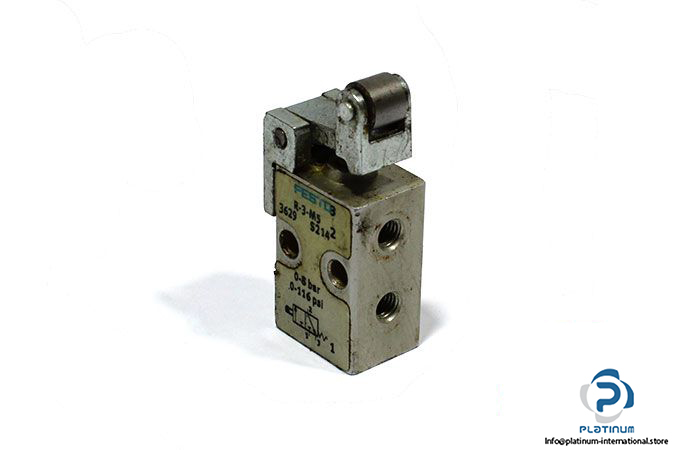

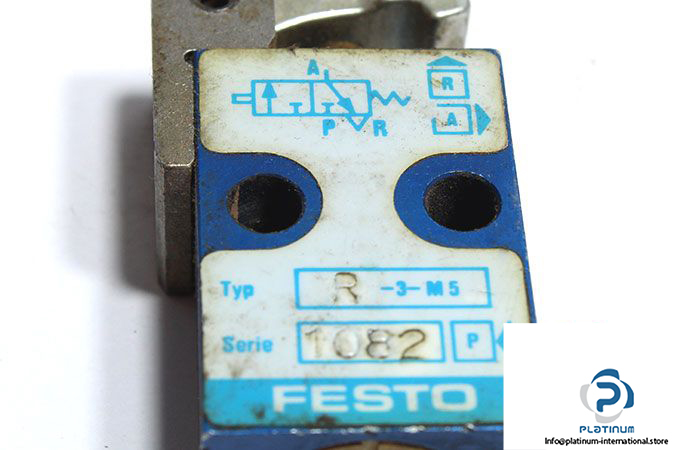

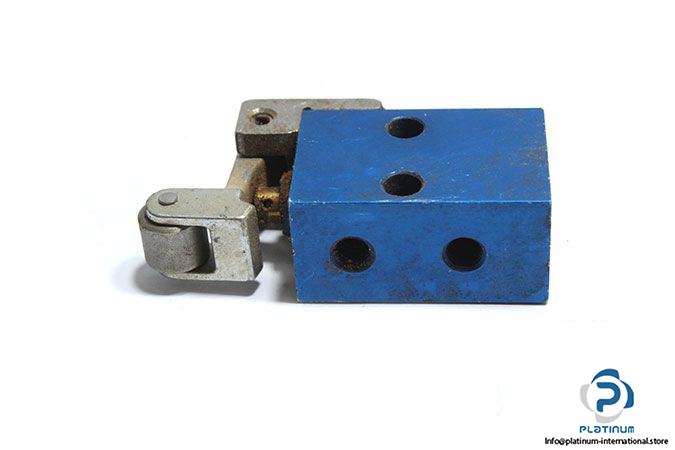

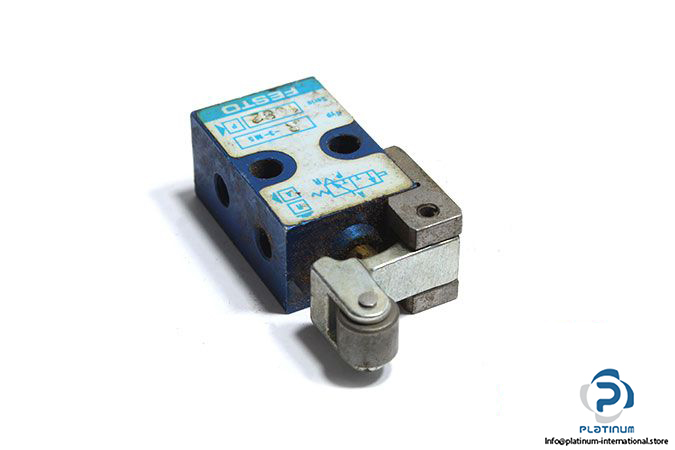

FESTO R-3-M5 ROLLER LEVER VALVE
The FESTO R3M5 roller lever valve is a compact and robust mechanical valve designed for precise air control in industrial pneumatic systems. Its poppet seat design and 3/2-way functionality ensure efficient operation in applications requiring closed, monostable actuation.
Manufacturer: FESTO
Type: Roller Lever Valve
Model: R-3-M5
Part No.: 3629
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | -0.95 / 8 bar |
| Nominal Flow Rate | 80 l/min |
| Actuating Force | 16.5 N |
| Pneumatic Connection | M5 |
| Material | Die-cast zinc |
| Ambient Temperature | -20 / 80 °C |
