Festo 36366 ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
FESTO ISO Cylinder DNG-63-320-PPV-A is designed for pneumatic systems with a 63 mm bore, 320 mm stroke, and a maximum pressure of 12 bar. Featuring a male piston rod end and a square shape, this double-acting cylinder ensures efficient operation in various industrial applications.3/832063boreComponentsconnectionCylinderDNG-63-320-PPV-Adouble-actingEndFestoGIndustrialISOmalemmPistonPneumaticRODSquareStrokeSystems
방대한 재고
글로벌 배송
전문 지원
품질 보장

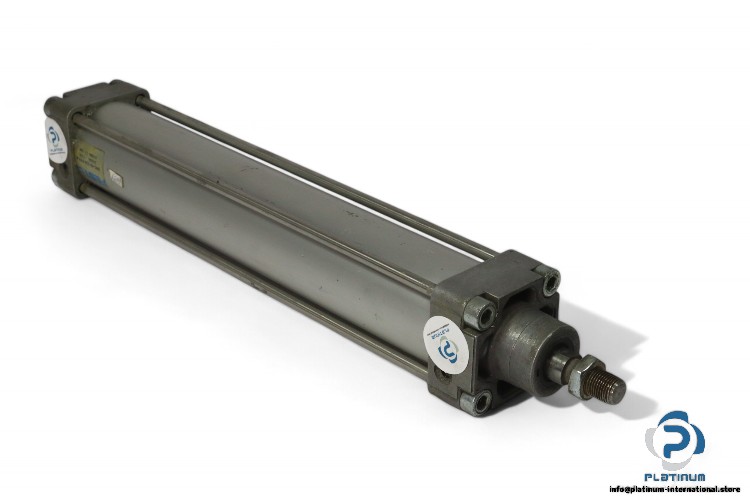

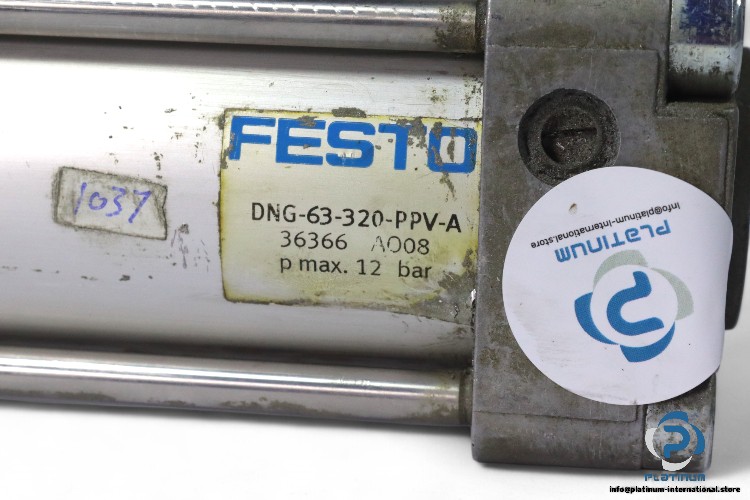

FESTO ISO Cylinder DNG-63-320-PPV-A
The FESTO ISO Cylinder DNG-63-320-PPV-A is designed for high-performance pneumatic applications. This reliable cylinder, built for compressed air systems, features robust construction and versatile specifications that ensure efficient operation in industrial settings.
Manufacturer: FESTO
Model: DNG63320PPVA
Part No.: 36366
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 320 mm
- Bore x Stroke: 63 x 320 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 475 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
