Festo 36370 Standard Cylinder
신제품
재고 있음1 단위즉시 배송 가능
Standard Cylinder
High-performance Festo cylinder offering precise motion, strong force output, and adjustable cushioning”ideal for demanding automation and industrial applications.ActingActuatorAdjustableAutomationComponentCushioningCylinderDoubleDutyFestoForceHeavyHighIndustrialPneumaticStandard
방대한 재고
글로벌 배송
전문 지원
품질 보장

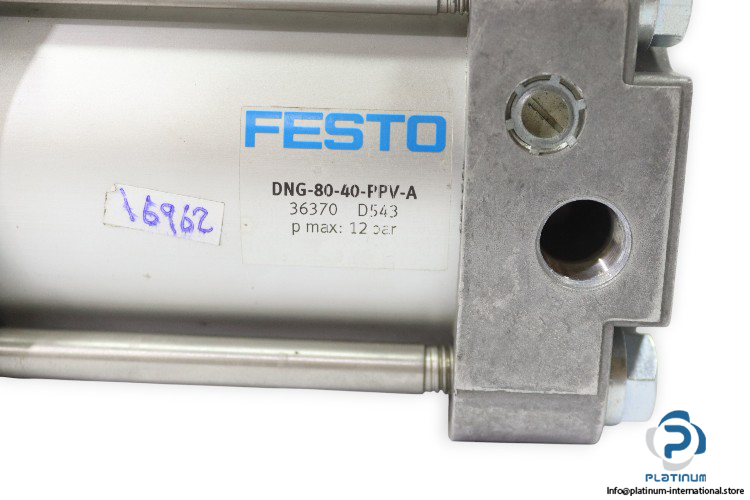

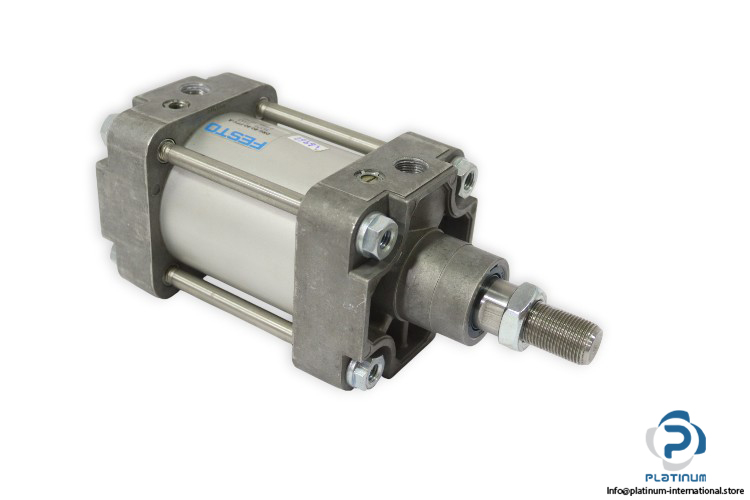

Festo DNG-80-40-PPV-A Standard Cylinder
A high-performance industrial cylinder engineered for precise motion, exceptional durability, and reliable force output in demanding automation environments. The Festo DNG-80-40-PPV-A delivers smooth operation, long service life, and outstanding energy efficiency”making it an ideal choice for machinery builders, OEMs, and automated systems requiring consistent double-acting performance with adjustable cushioning. Built with premium materials and advanced Festo engineering, this cylinder ensures reduced vibration, minimal wear, and stable performance even under continuous high-pressure operation.
Manufacturer: Festo
Type: Standard Cylinder
Model: DNG-80-40-PPV-A
Part No.: 36370
Code: D543
| Operating Medium | Compressed Air |
| Pressure Range | 0.6 to 12 bar |
| Stroke | 40 mm |
| Piston Diameter | 80 mm |
| Piston Rod Thread | M20x1.5 |
| Cushioning | PPV, Pneumatic Adjustable at Both Ends |
| Piston-Rod End | Male Thread |
| Variants | Single-Ended Piston Rod |
| Mode of Operation | Double-Acting |
| Cushioning Length | 30 mm |
| Theoretical Force at 6 bar (Return) | 2,721 N |
| Theoretical Force at 6 bar (Advance) | 3,016 N |
| Ambient Temperature | -20 °C to 80 °C |
| Seal Material | NBR, TPE-U(PU) |
| Piston Rod Material | High-Alloy Steel |
| Cover Material | Aluminum |
| Cylinder Barrel Material | Wrought Aluminum Alloy |
| Connection | G3/8 |
