Festo 525668 ONE-WAY Flow Control Valve
신제품
요청 시 제공 가능
45,00$
ONE-WAY FLOW CONTROL VALVE
Festo GRXA-HG-1/8-QS-6 valve for regulating compressed air with durable construction, QS-6 and G1/8 connections, and flow control up to 230 l/min.AirCompressedConnectorControlFestoflowG1/8GRXA-HG-1/8-QS-6IndustrialOne-WayPneumaticPortQS-6RegulationValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

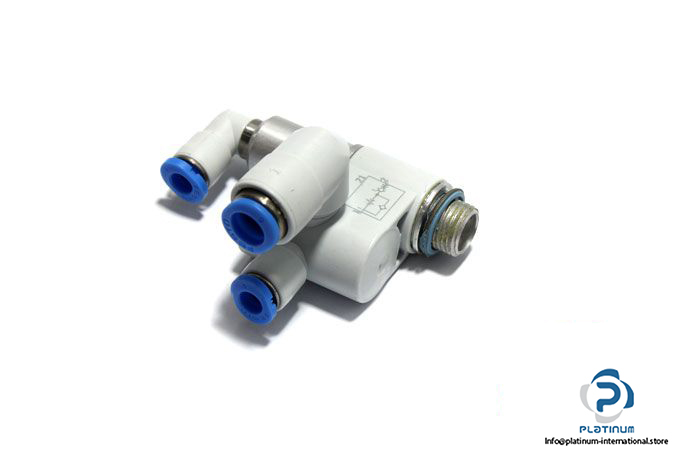

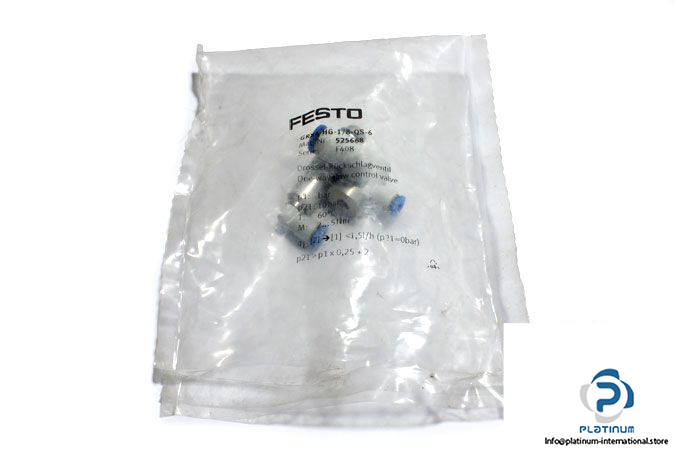

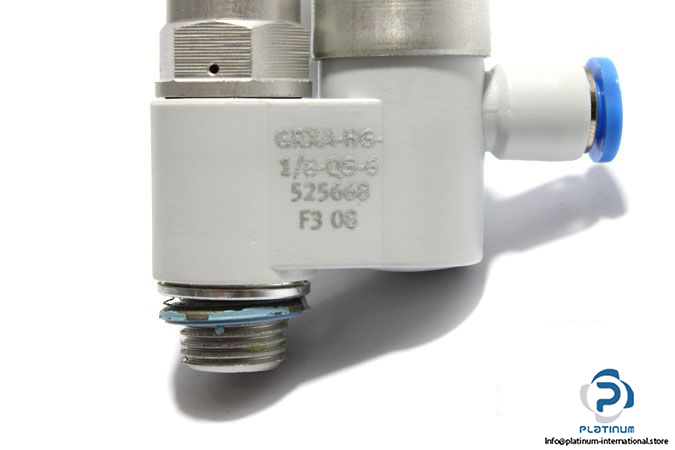

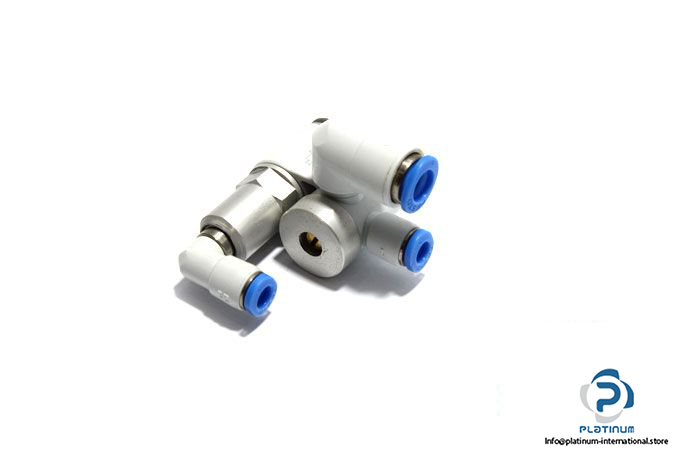

FESTO GRXA-HG-1/8-QS-6 ONE-WAY FLOW CONTROL VALVE
The Festo GRXA-HG-1/8-QS-6 is a precision one-way flow control valve built to regulate compressed air flow in pneumatic systems. With a durable POM body and anodized aluminum trim, it delivers dependable performance in demanding environments.
Manufacturer: FESTO
Type: One-Way Flow Control Valve
Model: GRXA-HG-1/8-QS-6
Part No.: 525668
| Fluid | Compressed Air |
| Type of Actuation | Pneumatically |
| Working Pressure | 0 / 10 bar |
| Nominal Flow Rate | 180 / 230 l/min |
| Hydraulic Connection (Port 1) | QS-6 |
| Hydraulic Connection (Port 2) | G1/8 |
| Trim Material | Anodized Aluminum |
| Body Material | POM |
| Temperature | -10 ... 70 °C |
