Festo 536266 Compact Cylinder
신제품
재고 있음1 단위즉시 배송 가능
Compact Cylinder
FESTO ADN-25-50-I-P-A Compact Cylinder is a high-precision pneumatic actuator designed for space-saving applications. Featuring a 50 mm stroke length, 25 mm piston diameter, and a double-acting mechanism, it ensures reliable and smooth motion control in industrial environments.
방대한 재고
글로벌 배송
전문 지원
품질 보장

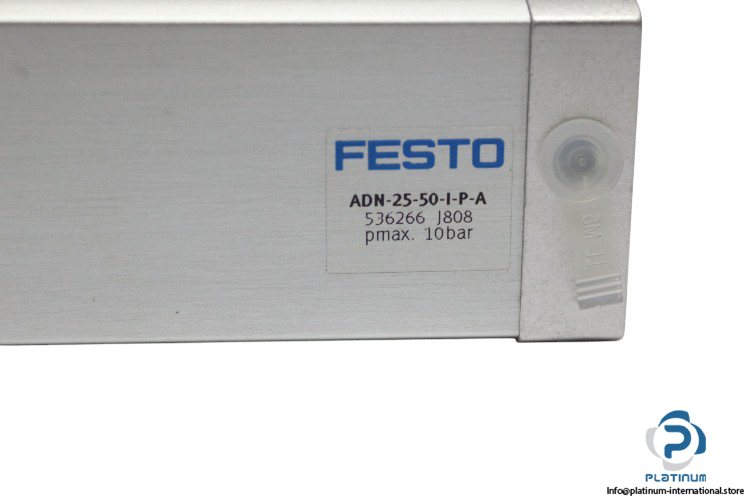

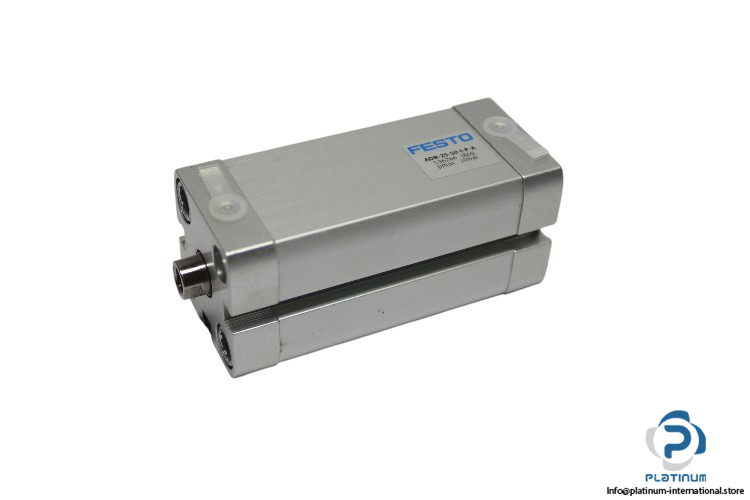

FESTO ADN-25-50-I-P-A Compact Cylinder
The FESTO ADN-25-50-I-P-A Compact Cylinder is a high-performance pneumatic actuator designed for precision applications requiring compact dimensions and reliable operation. With a double-acting mode of operation and elastic cushioning at both ends, it ensures smooth motion control and durability. Constructed from high-quality wrought aluminum alloy with a smooth-anodized finish, this cylinder offers excellent resistance to wear and corrosion.
- Manufacturer: FESTO
- Type: Compact Cylinder
- Model: ADN-25-50-I-P-A
- Part No.: 536266
Technical Specifications
- Stroke Length: 50 mm
- Piston Diameter: 25 mm
- Piston Rod Thread: M6
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Pneumatic Connection: 5 mm
- Temperature Range: -20 … 80 °C
