Festo 538182 Hand Lever Valve
신제품
재고 있음1 단위즉시 배송 가능
115,00$
HAND LEVER VALVE
FESTO VHER-AH-M04C-G12-LD hand lever valve with rotary slide design, 4/3-way closed function, and 4300 l/min flow for industrial air control.4/3-wayAirAluminumAnodizedFestog1/2HandIndustrialLeverManualPneumaticRotarySlideValveVHER-AH-M04C-G12-LD
방대한 재고
글로벌 배송
전문 지원
품질 보장

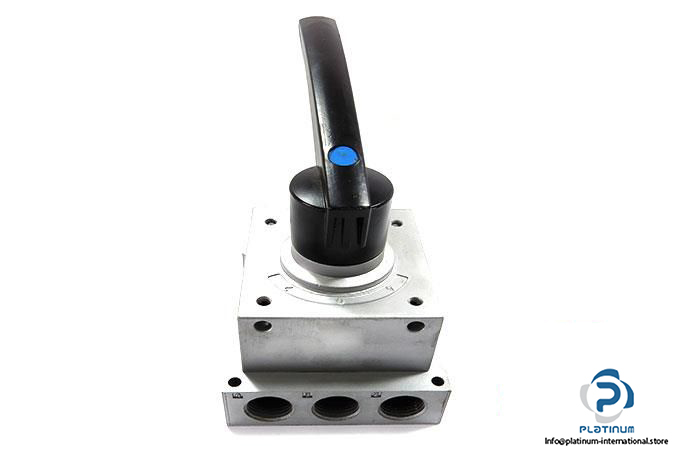

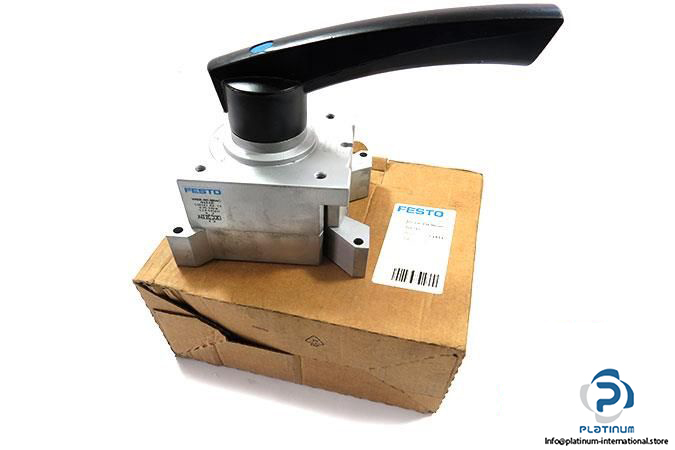

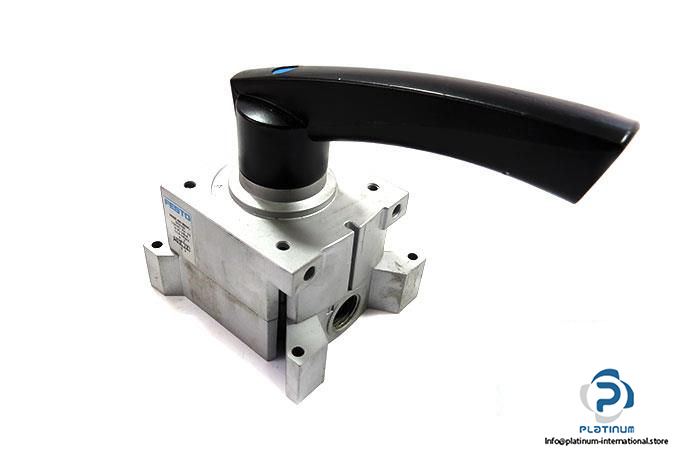

FESTO VHER-AH-M04C-G12-LD HAND LEVER VALVE
The FESTO VHER-AH-M04C-G12-LD is a high-performance manually actuated hand lever valve, engineered for robust and precise control of pneumatic systems. Built with a rotary slide valve design and 4/3-way closed functionality, this unit is ideal for high-flow industrial air applications.
Manufacturer: FESTO
Type: Hand Lever Valve

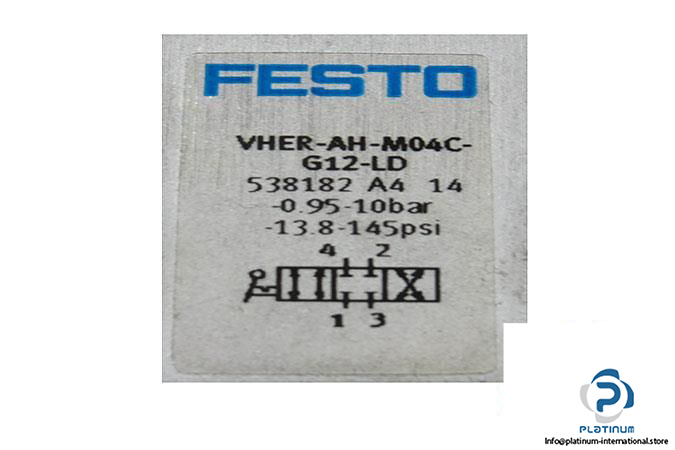

Model: VHER-AH-M04C-G12-LD
Part No.: 538182
| Fluid | Air |
| Design | Rotary Slide Valve |
| Function | 4/3-Way Closed |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 to 10 bar |
| Nominal Flow Rate | 4300 l/min |
| Pneumatic Connection | G1/2 |
| Material | Anodized Aluminum |
| Ambient Temperature | -20 to 80 °C |
