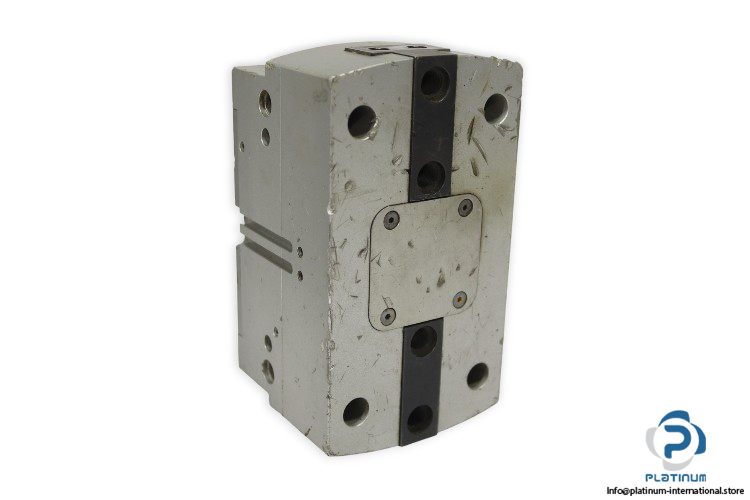

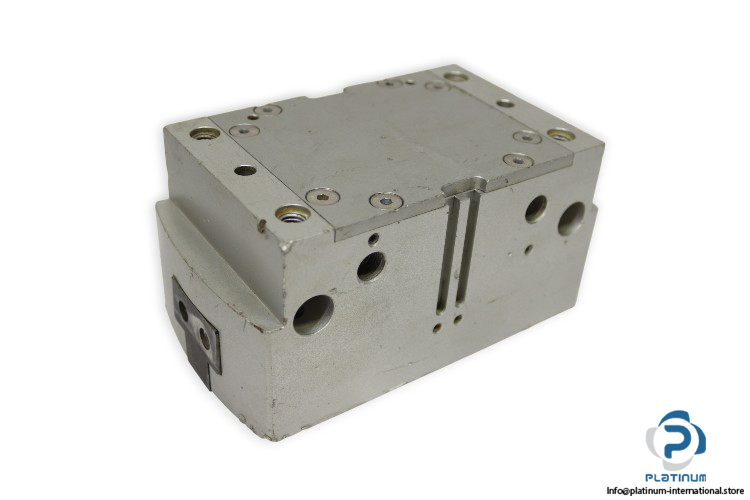

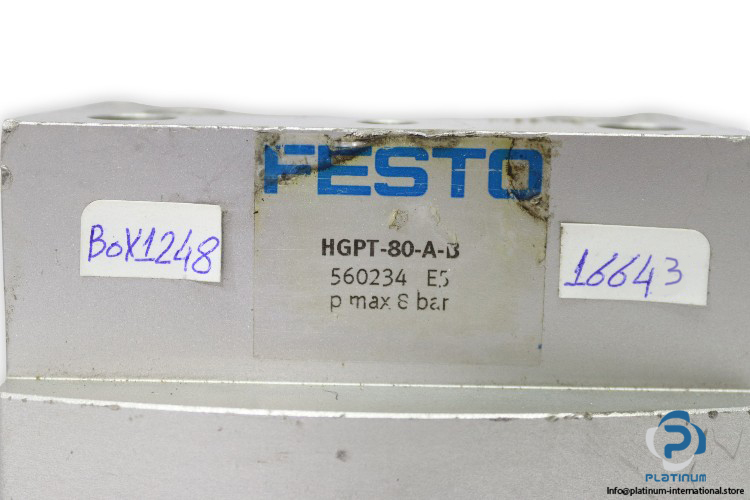

FESTO HGPT-80-A-B Parallel Gripper
The FESTO HGPT-80-A-B Parallel Gripper is a high-performance pneumatic gripper designed for precise handling, positioning, and automation applications. Its robust double-acting design, high gripping force, and excellent repetition accuracy make it ideal for demanding industrial environments.
Manufacturer: FESTO
Type: Parallel Gripper
Model: HGPT-80-A-B
MRN: 560234
| Size | 80 |
| Stroke per gripper jaws | 25 mm |
| Maximum replacement accuracy | 0.2 mm |
| Maximum angular gripper jaw backlash ax, ay | 0.1 degree |
| Maximum gripper jaw backlash Sz | 0.02 mm |
| Rotationally symmetrical | 0.2 mm |
| Repetition accuracy, gripper | 0.05 mm |
| Number of gripper jaws | 2 |
| Drive system | Pneumatic |
| Mounting position | Optional |
| Mode of operation | Double acting |
| Gripper function | Parallel |
| Design | Force pilot operated motion sequence |
| Position detection | Via proximity switch |
| Operating pressure | 3 bar to 8 bar |
| Operating pressure of blocked air | 0 bar to 0.5 bar |
| Maximum operating frequency of gripper | 2 Hz |
| Minimum opening time at 0.6 MPa (6 bar, 87 psi) | 214 ms |
| Minimum closing time at 0.6 MPa (6 bar, 87 psi) | 213 ms |
| Maximum mass per external gripper finger | 1830 g |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | 5 °C to 60 °C |
| Total gripping force, opening, 0.6 MPa (6 bar, 87 psi) | 3226 N |
| Pneumatic connection, blocked air | M5 |
| Pneumatic connection | G1/4 |
| Material housing | Anodised aluminium |
