Festo 688542 Pressure Sensor
압력 센서 FESTO 압력 센서 SDE1-D10-G2-MS-L-P1-M8, 0 / 10 bar 압력 측정 범위, PNP 스위칭 출력 및 IP65 보호 기능을 갖추었습니다. 15 / 30 V DC 작동 전압 범위의 압축 공기 시스템에 적합합니다.

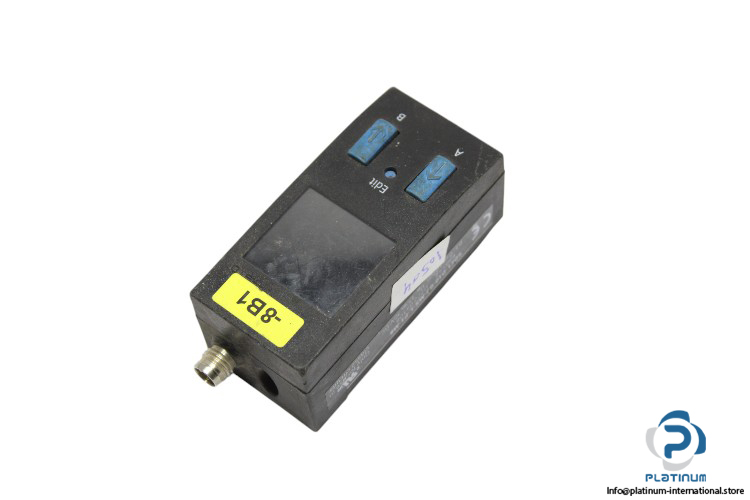

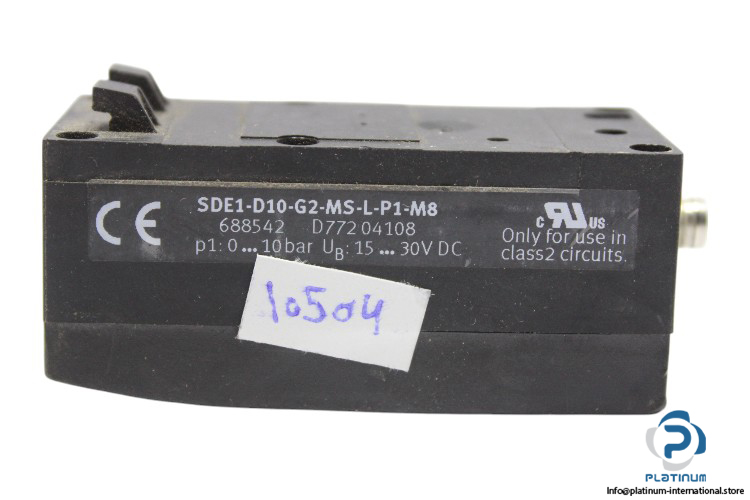

FESTO Pressure Sensor SDE1-D10-G2-MS-L-P1-M8
The FESTO Pressure Sensor SDE1-D10-G2-MS-L-P1-M8 is designed for precise pressure measurement in compressed air systems. With a pressure measuring range of 0 to 10 bar, this sensor ensures accurate readings for various industrial applications. It features a PNP switching output, with a maximum output current of 150 mA, and operates within a voltage range of 15 to 30 V DC. The M8 3-pin connector ensures reliable electrical connection, and the IP65 protection class provides excellent resistance against dust and water. Suitable for use in environments with medium and ambient temperatures ranging from 0 to 50 °C.
Manufacturer: FESTO
Type: Pressure Sensor
Model: SDE1-D10-G2-MS-L-P1-M8
Part No.: 688542
Technical Specifications
- Pressure Measuring Range: 0 / 10 bar
- Medium: Compressed Air
- Switching Output: PNP
- Output Current Max.: 150 mA
- Operating Voltage Range: 15 / 30 V DC
- Electrical Connection: M8 Connector 3-Pin
- Material: PA
- Protection Class: IP65
- Medium / Ambient Temperature: 0 / 50 °C
